Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the body hinge pillar trim panel to the vehicle.
  2. Install the left front door sill trim plate. Refer to DOOR SILL PLATE REPLACEMENT .

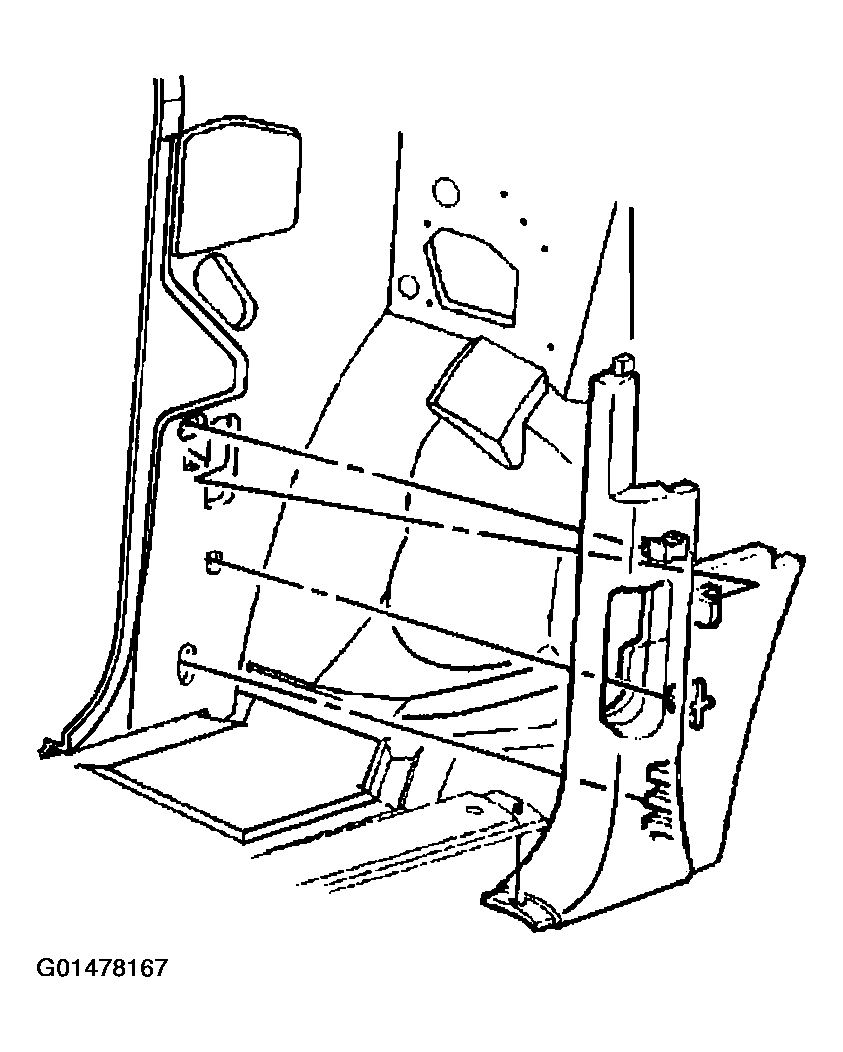

    Fig 1: Left Front Door Sill Trim Plate
    G01478167Courtesy of GENERAL MOTORS CORP.
