Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the upper and the lower seat belt anchor bolts.
  2. Remove the coat hook. Refer to COAT HOOK REPLACEMENT (EXTENDED/CREW CAB PICKUP)  or COAT HOOK REPLACEMENT (STANDARD CAB PICKUP)  or COAT HOOK REPLACEMENT (UTILITY) .
  3. Remove the door sill trim plate. Refer to DOOR SILL PLATE REPLACEMENT .

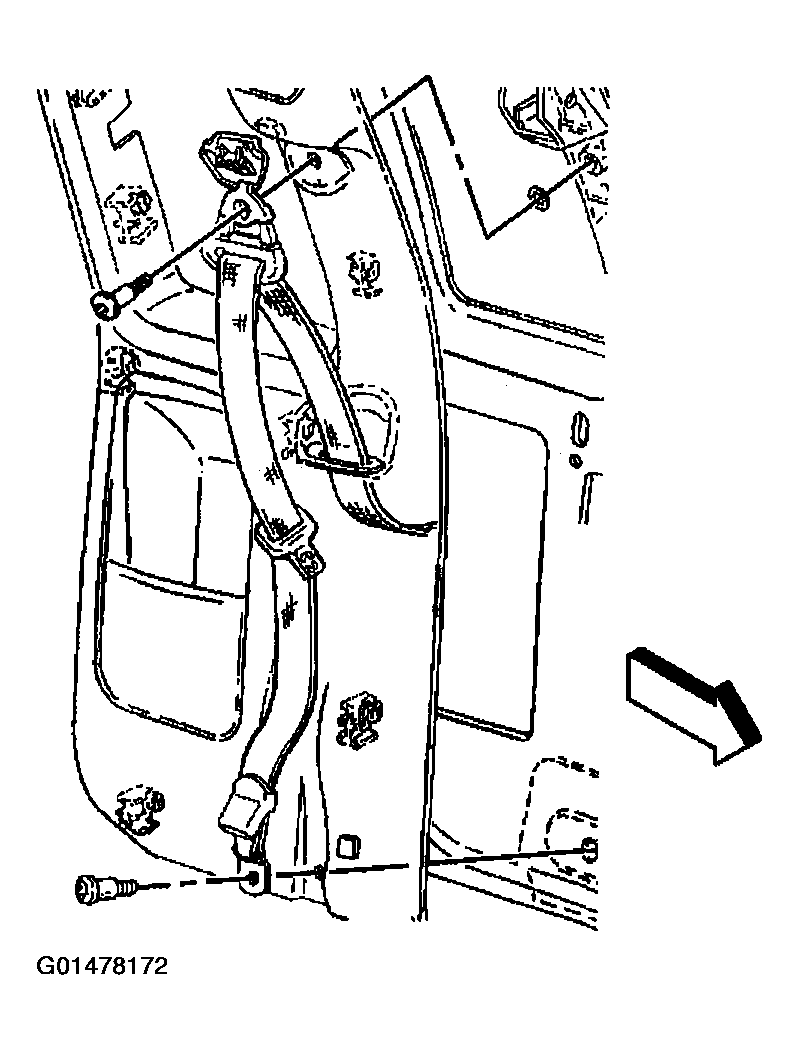

    Fig 1: Upper & Lower Seat Belt Anchor Bolts
    G01478172Courtesy of GENERAL MOTORS CORP.
  4. Remove the screws that retain the body side trim panel to the vehicle.
  5. Disconnect the electrical connectors, as needed.
  6. Remove the shoulder belt opening trim cover.
  7. Feed the seat belt through the trim cover.
  8. Remove the body side trim panel from the vehicle.

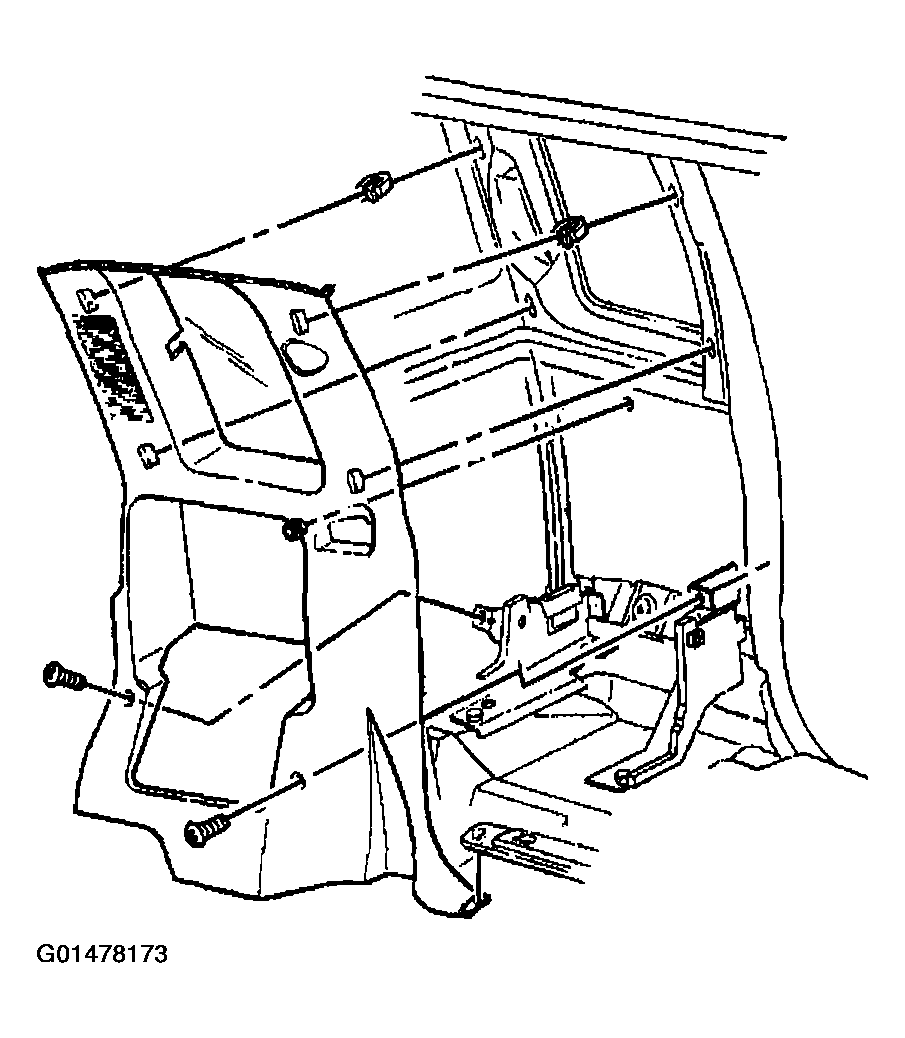

    Fig 2: Removing Body Side Trim Panel From Vehicle
    G01478173Courtesy of GENERAL MOTORS CORP.
