Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the door sill trim plate. Refer to DOOR SILL PLATE REPLACEMENT .
  2. Remove the upper seat belt anchor bolt (3) and the lower seat belt anchor bolt (7).

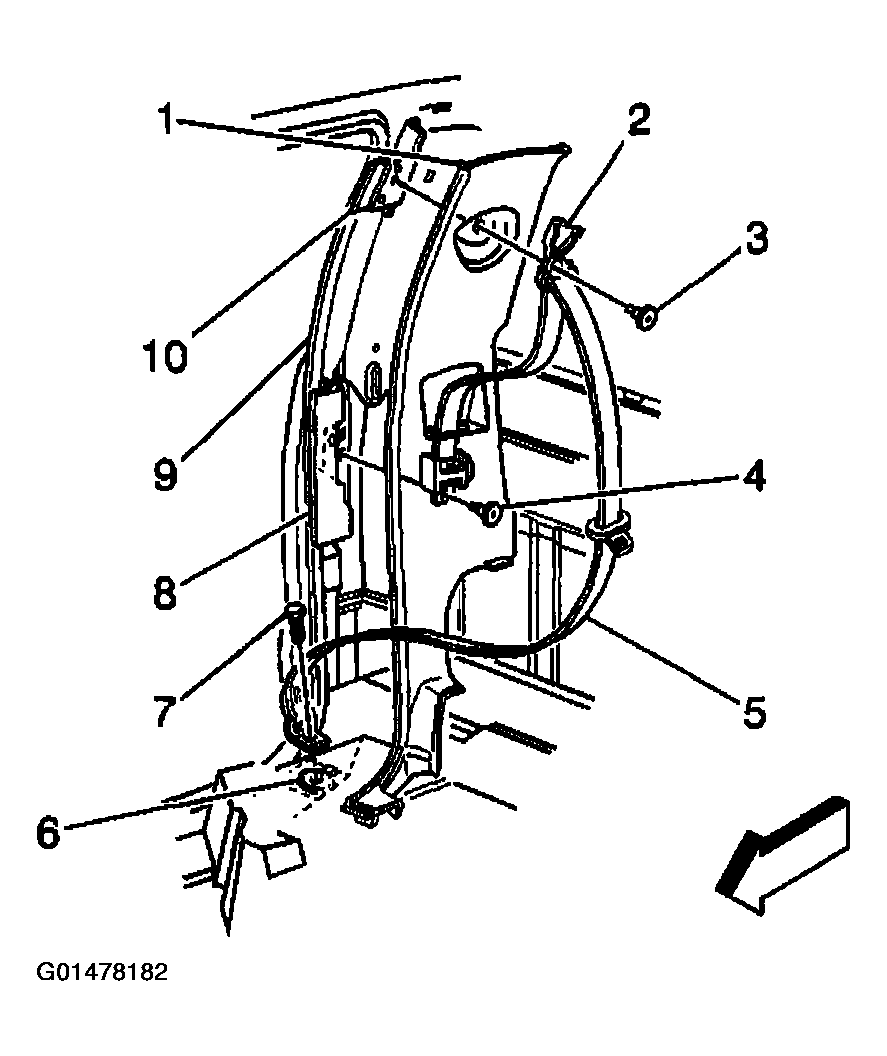

    Fig 1: Upper & Lower Seat Belt Anchor Bolt
    G01478182Courtesy of GENERAL MOTORS CORP.
  3. Using a flat-bladed tool, gently pry the coat hook plug (1) away from the trim panel (2).
  4. Remove the shoulder belt opening trim cover.
  5. Feed the seat belt through the trim cover.
  6. Remove the body side trim panel from the vehicle.

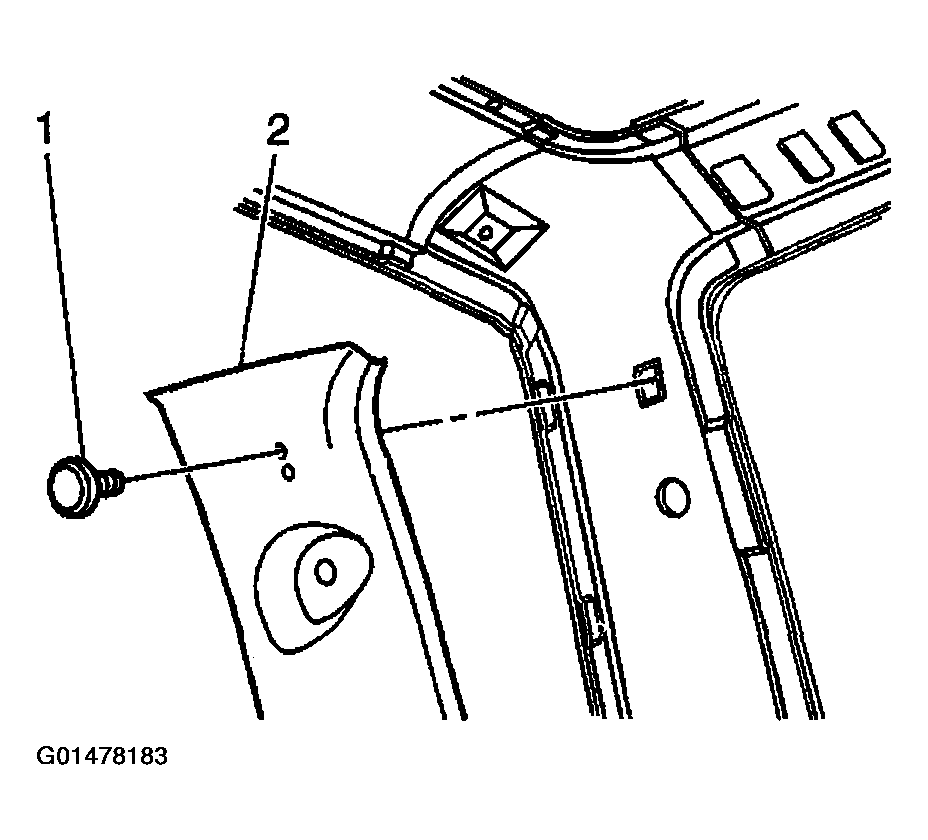

    Fig 2: Removing Body Side Trim Panel From Vehicle
    G01478183Courtesy of GENERAL MOTORS CORP.
