Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Feed the seat belt through the trim panel.
  2. Install the shoulder belt opening trim cover.
  3. Install the body side trim panel to the vehicle.
  4. Install the coat hook plug (1) into the trim panel (2).

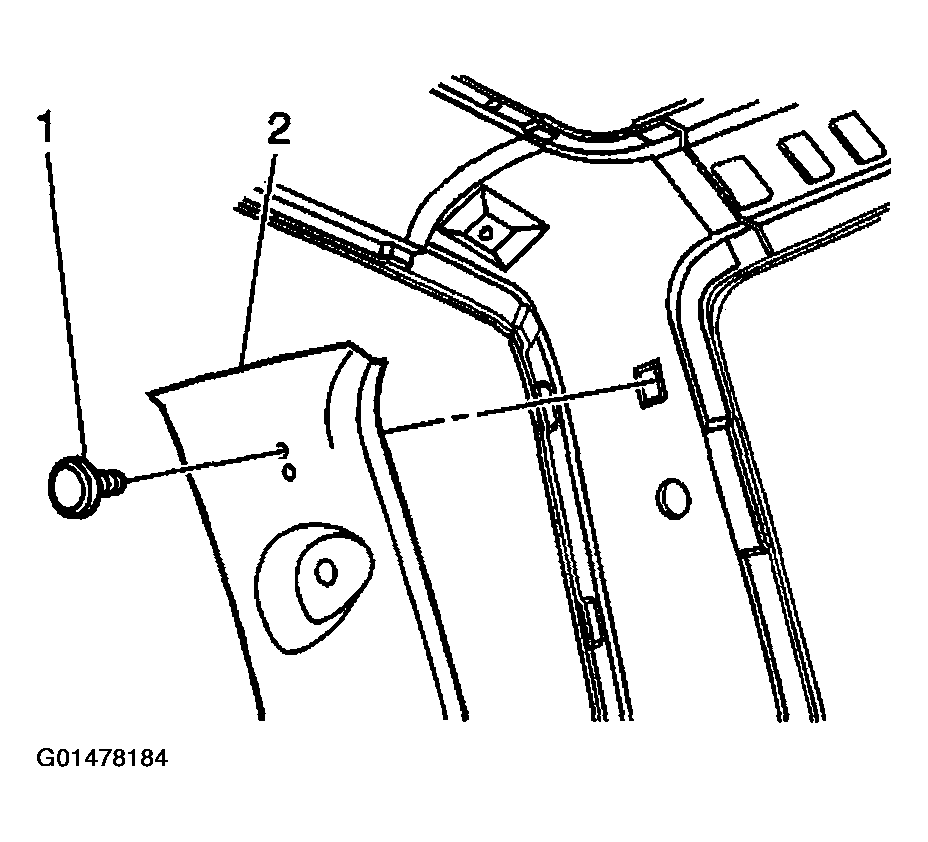

    Fig 1: Installing Body Side Trim Panel To Vehicle
    G01478184Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  5. Install the upper (3) and lower (7) seat belt anchor bolts.

    Tighten

    Tighten the seat belt anchor bolts to 70 N.m (52 Ib ft).

  6. Install the door sill trim plate. Refer to DOOR SILL PLATE REPLACEMENT .

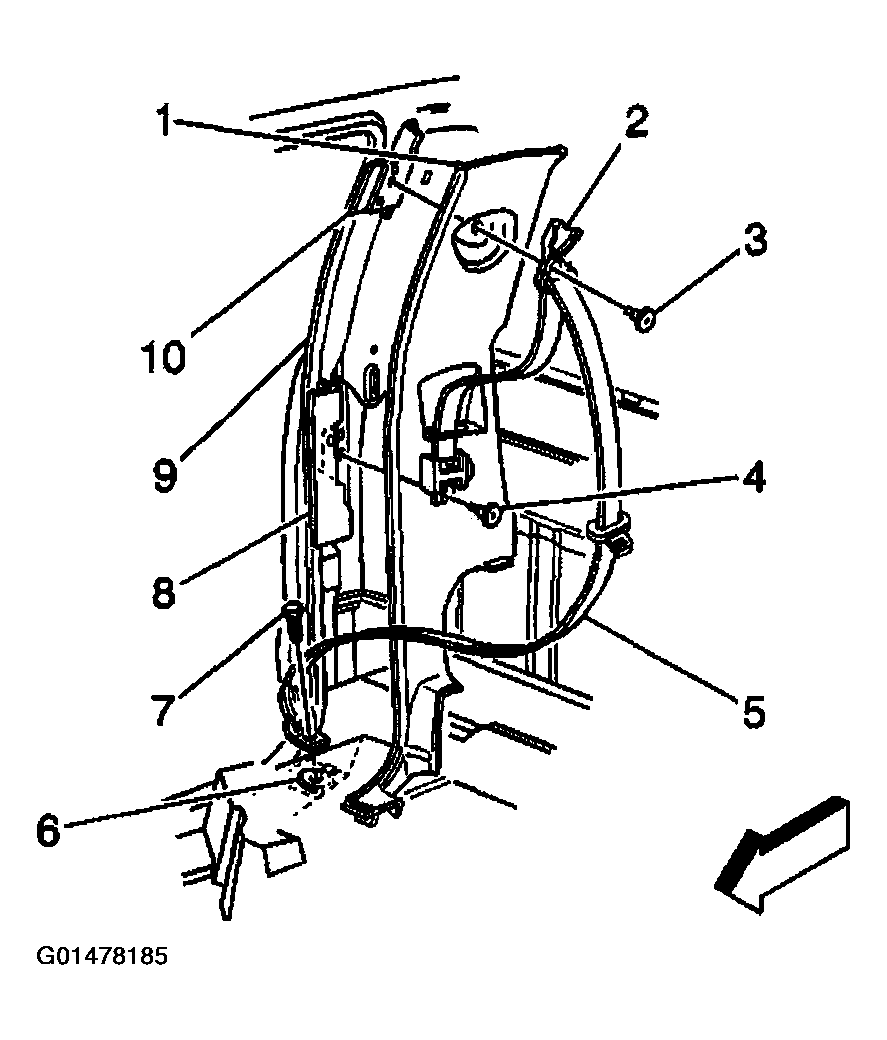

    Fig 2: Upper & Lower Seat Belt Anchor Bolts
    G01478185Courtesy of GENERAL MOTORS CORP.
