Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

Remove the screws that retain the sunshade to the roof.
Disconnect the electrical connections, if equipped.

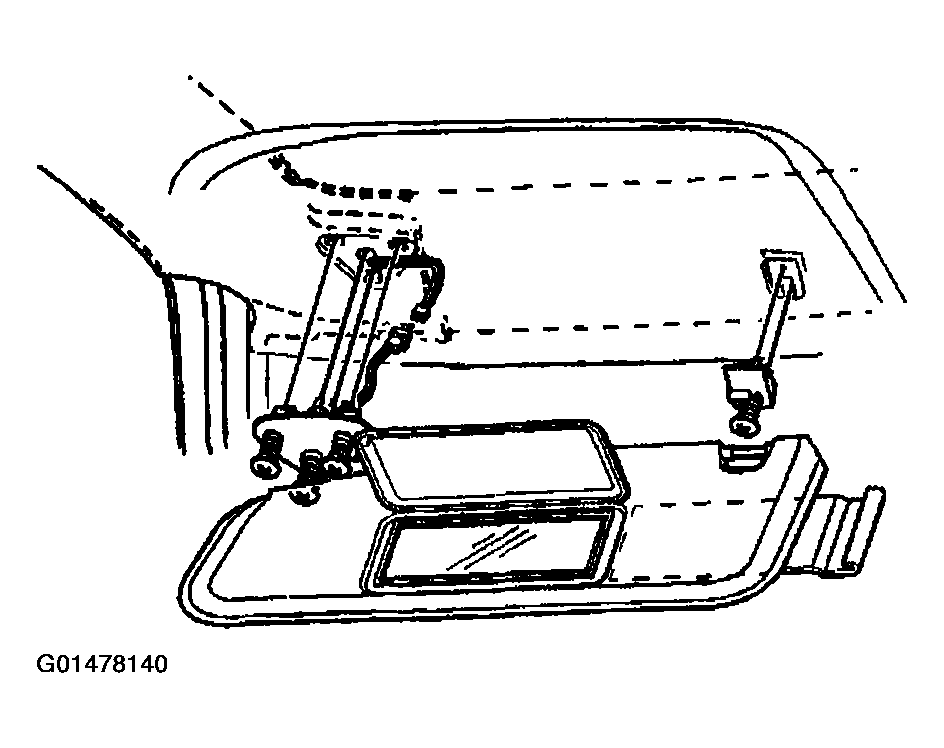

Fig 1: Disconnect Electrical Connections
Courtesy of GENERAL MOTORS CORP.
Remove the screw that retains the sunshade retainer to the roof.

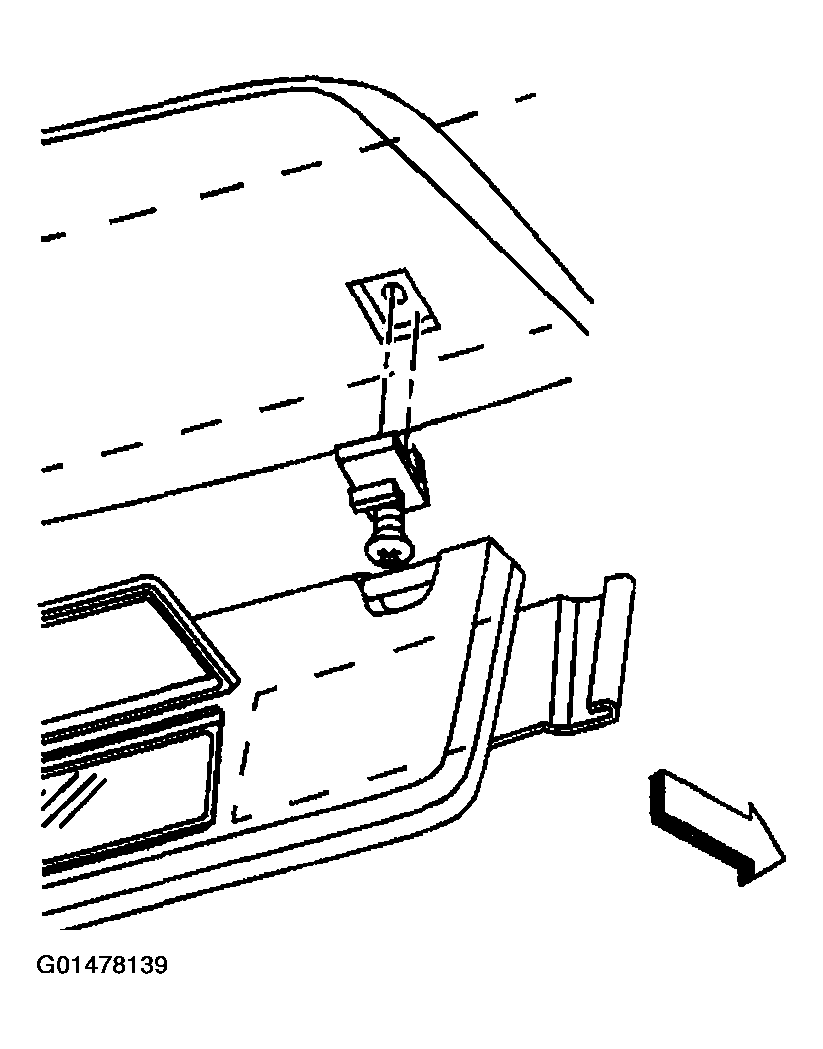

Fig 2: Removing Screw That Retains Sunshade Retainer
Courtesy of GENERAL MOTORS CORP.
Remove the sunshade from the vehicle.

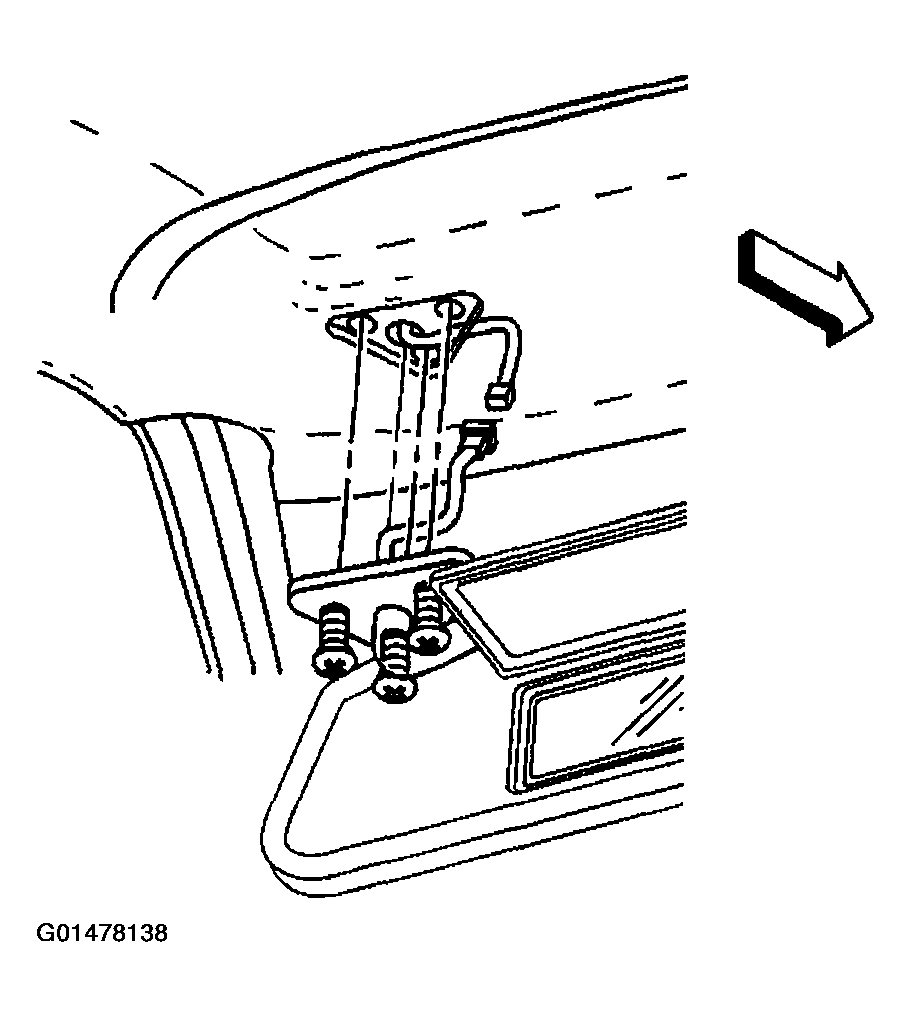

Fig 3: Removing Sunshade From Vehicle
Courtesy of GENERAL MOTORS CORP.
