Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

Remove the front seat. Refer to SEAT REPLACEMENT -- JUMP or to SEAT REPLACEMENT -- BENCH in Seats.
Remove the jack cover from the vehicle.
Remove the jack from the vehicle.
Remove the door sill trim plates. Refer to DOOR SILL PLATE REPLACEMENT .
Remove the floor console or cup holder, if equipped. Refer to the appropriate procedure:
- CONSOLE REPLACEMENT -- FRONT FLOOR (FULL LENGTH (AUTO TRANS)) or CONSOLE REPLACEMENT -- FRONT FLOOR (FULL LENGTH (ENVOY)) or CONSOLE REPLACEMENT -- FRONT FLOOR (NON-FULL LENGTH) or CONSOLE REPLACEMENT -- FRONT FLOOR (FULL LENGTH (MANUAL TRANS))
- CUPHOLDER REPLACEMENT -- FRONT FLOOR CONSOLE
Remove the body side trim panels. Refer to TRIM PANEL REPLACEMENT - BODY SIDE (STANDARD CAB PICKUP) or TRIM PANEL REPLACEMENT - BODY SIDE (EXTENDED CAB PICKUP) or TRIM PANEL REPLACEMENT - BODY SIDE (2-DOOR UTILITY) or TRIM PANEL REPLACEMENT - BODY SIDE (4-DOOR UTILITY) or TRIM PANEL REPLACEMENT - BODY SIDE (CREW CAB) .
For vehicles with the extended cab with rear side door, remove the C-pillar trim panel. Refer to TRIM REPLACEMENT - THIRD PILLAR (EXTENDED CAB PICKUP W/ REAR SIDE DOOR) or TRIM REPLACEMENT - THIRD PILLAR (4-DOOR UTILITY) .
Remove the body hinge trim panels. Refer to TRIM PANEL REPLACEMENT - LEFT HINGE PILLAR and to TRIM PANEL REPLACEMENT - RIGHT HINGE PILLAR .
Remove the carpet or the mat from the vehicle.

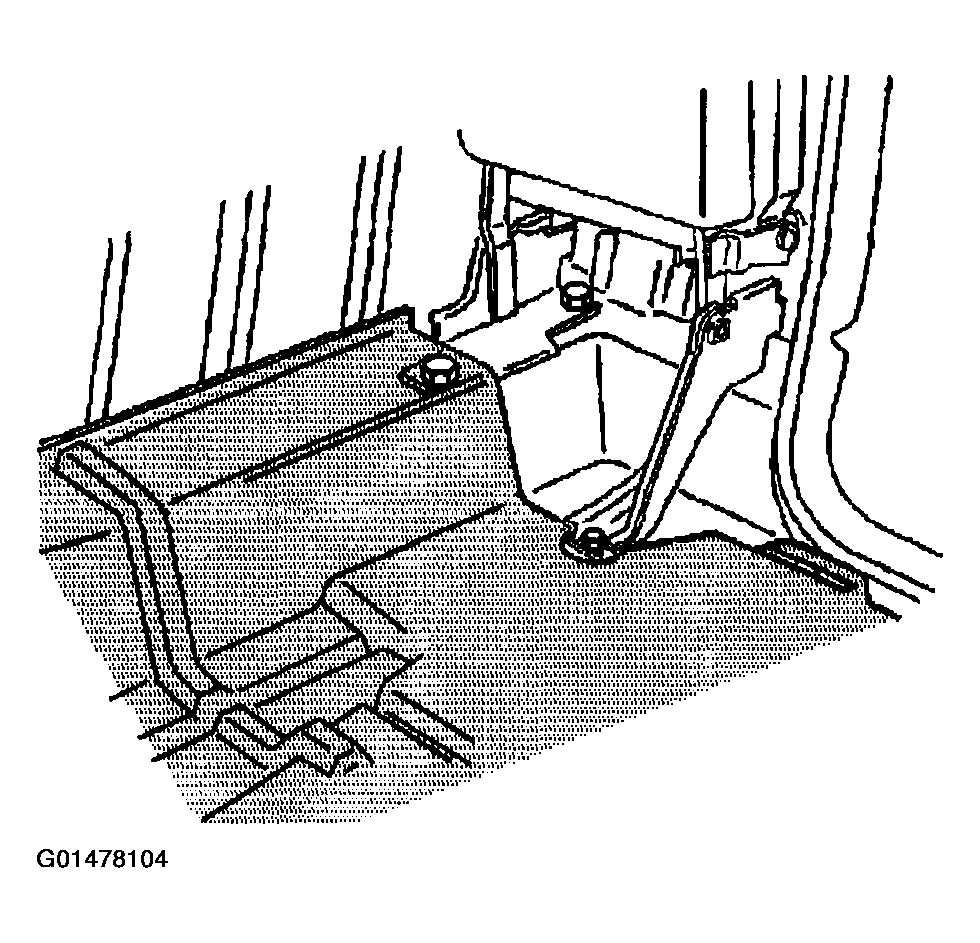

Fig 1: Removing Carpet From Vehicle
Courtesy of GENERAL MOTORS CORP.
