Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the headliner to the vehicle. New headliners must be pierced in order to accommodate actual vehicle accessories.
  2. Install the rear upper garnish molding. Refer to GARNISH MOLDING REPLACEMENT - REAR UPPER .
  3. Install the upper body side panel trim. Refer to TRIM PANEL REPLACEMENT - BODY SIDE (STANDARD CAB PICKUP)  or TRIM PANEL REPLACEMENT - BODY SIDE (EXTENDED CAB PICKUP)  or TRIM PANEL REPLACEMENT - BODY SIDE (2-DOOR UTILITY)  or TRIM PANEL REPLACEMENT - BODY SIDE (4-DOOR UTILITY)  or TRIM PANEL REPLACEMENT - BODY SIDE (CREW CAB) .
  4. Install the inside air temperature sensor grille.
    Fig 1: Inside Air Temperature Sensor Grille
    G01478123Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  5. Install the rear seat upper seat belt anchor bolts (2-door models only).

    Tighten

    Tighten the bolts to 70 N.m (52 Ib ft).

    Fig 2: Rear Seat Upper Seat Belt Anchor Bolts
    G01478124Courtesy of GENERAL MOTORS CORP.
  6. Install the body lock pillar trim panels 4-door models only). Refer to GARNISH MOLDING REPLACEMENT - SIDE DOOR LOCK PILLAR (CF5) .
  7. Install the windshield garnish moldings. Refer to GARNISH MOLDING REPLACEMENT - WINDSHIELD PILLAR .
  8. Install the sunshades and the retainers. Refer to SUNSHADE REPLACEMENT .
  9. Install the assist handles. Refer to ASSIST HANDLE REPLACEMENT .
  10. Install the coat hooks. Refer to COAT HOOK REPLACEMENT (EXTENDED/CREW CAB PICKUP)  or COAT HOOK REPLACEMENT (STANDARD CAB PICKUP)  or COAT HOOK REPLACEMENT (UTILITY) .
  11. Install the sunroof opening trim, if equipped, by carefully pressing it into place.

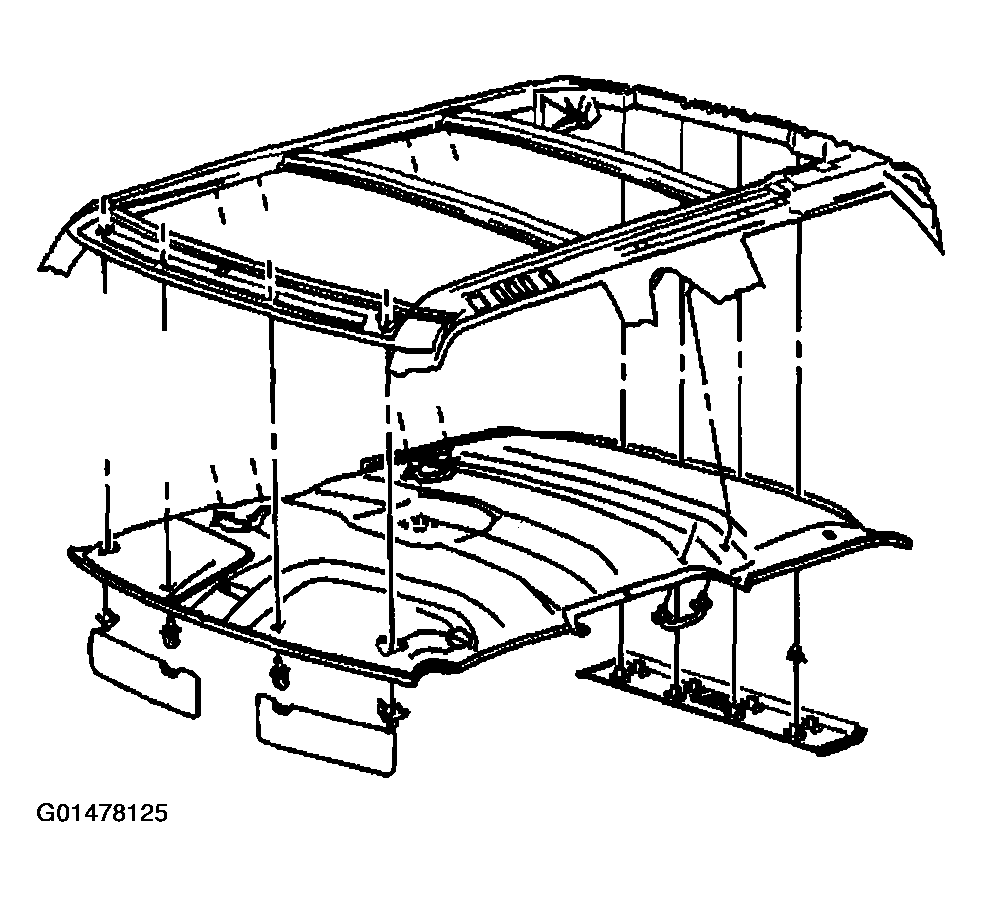

    Fig 3: Headliner
    G01478125Courtesy of GENERAL MOTORS CORP.
  12. Install the dome lamp, if equipped. Refer to DOME LAMP REPLACEMENT (PICKUP) or DOME LAMP REPLACEMENT (UTILITY) in Lighting Systems.
  13. Install the overhead or sunroof console, if equipped. Refer to DOME LAMP BULB REPLACEMENT (WITHOUT SUNROOF) or DOME LAMP BULB REPLACEMENT (WITH SUNROOF) in Instrument Panel, Gages and Console.
