Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the headliner to the vehicle. Pierce the new headliner in order to accommodate actual vehicle accessories.
  2. Secure the body side trim panels at the roof line.
  3. Install the windshield garnish moldings. Refer to GARNISH MOLDING REPLACEMENT - WINDSHIELD PILLAR .
  4. Install the sunshades and the retainers. Refer to SUNSHADE REPLACEMENT .
  5. Install the passenger assist handle. Refer to ASSIST HANDLE REPLACEMENT .
  6. Install the coat hooks. Refer to COAT HOOK REPLACEMENT (EXTENDED/CREW CAB PICKUP)  or COAT HOOK REPLACEMENT (STANDARD CAB PICKUP)  or COAT HOOK REPLACEMENT (UTILITY) .
  7. Install the dome lamp. Refer to DOME LAMP REPLACEMENT (PICKUP) or DOME LAMP REPLACEMENT (UTILITY) in Lighting Systems.

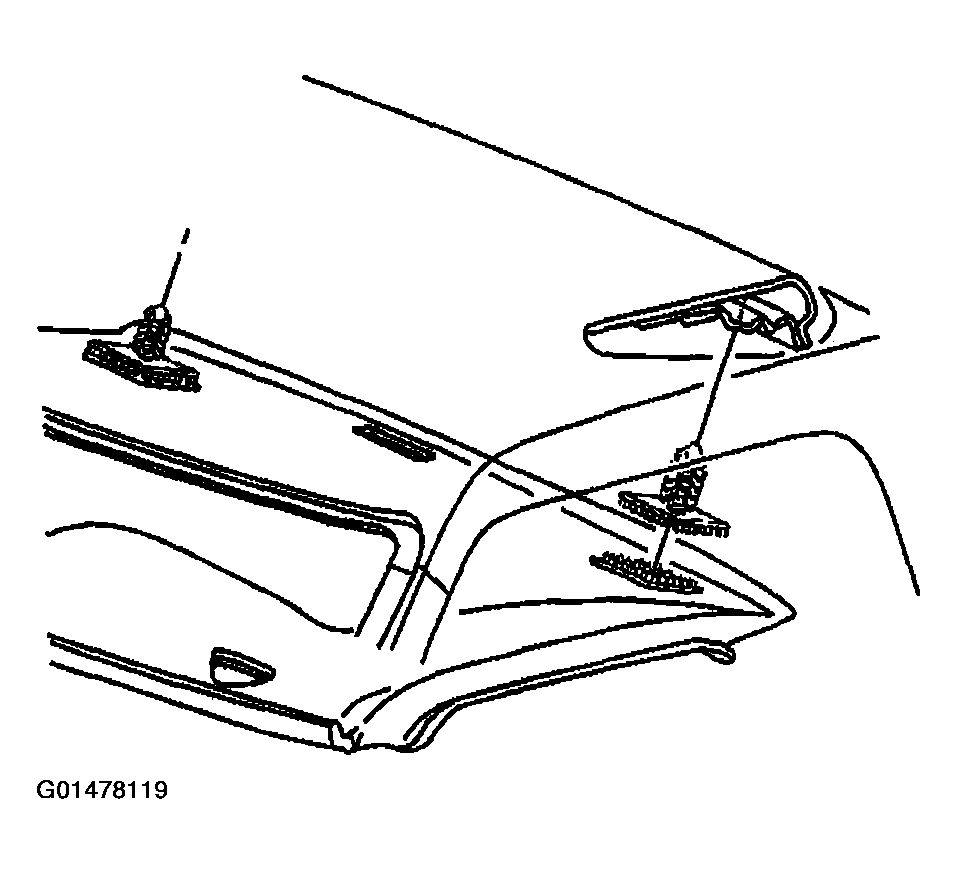

    Fig 1: Headliner
    G01478119Courtesy of GENERAL MOTORS CORP.
