Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

Install the windshield molding to the windshield pillar. Align the retainer clips with the slots and press the molding into place.

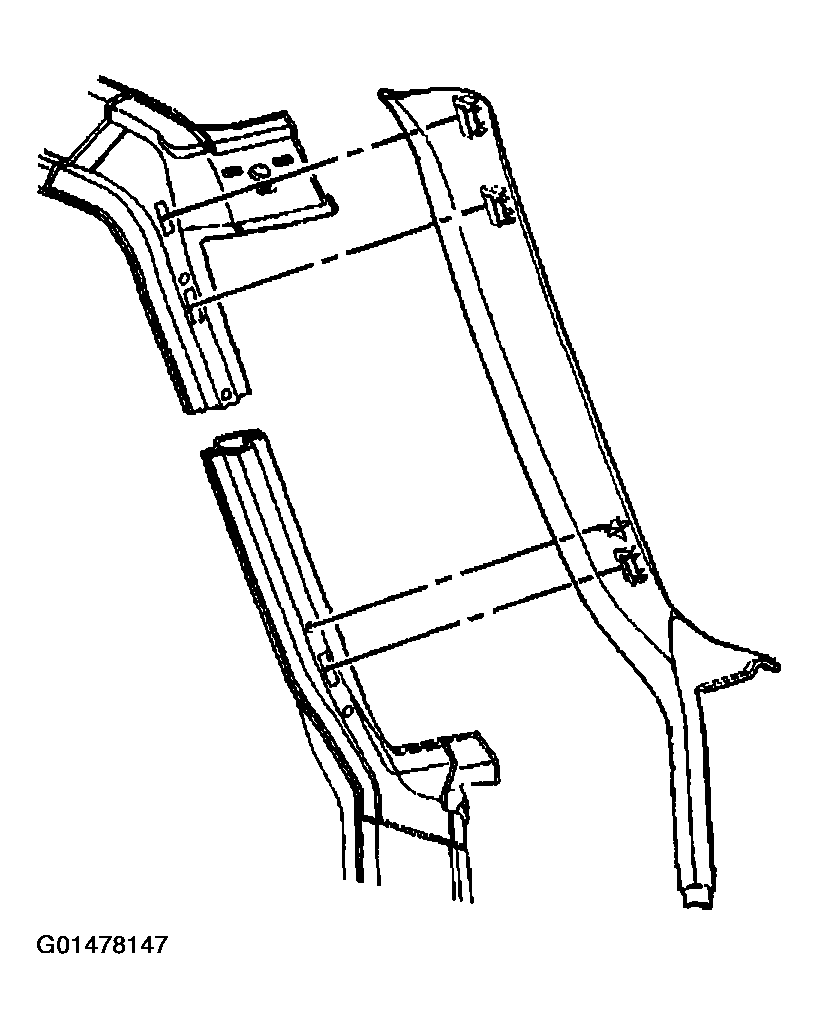

Fig 1: Windshield Pillar Garnish Molding
G01478147Courtesy of GENERAL MOTORS CORP.
