Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the overhead lamp lens on the overhead console.
  2. Remove the 3 overhead console roof screws.

    One screw is located towards the front of the console and the other 2 are located behind the dome lamp lens.

  3. Disconnect the electrical connectors.
  4. Remove the console.

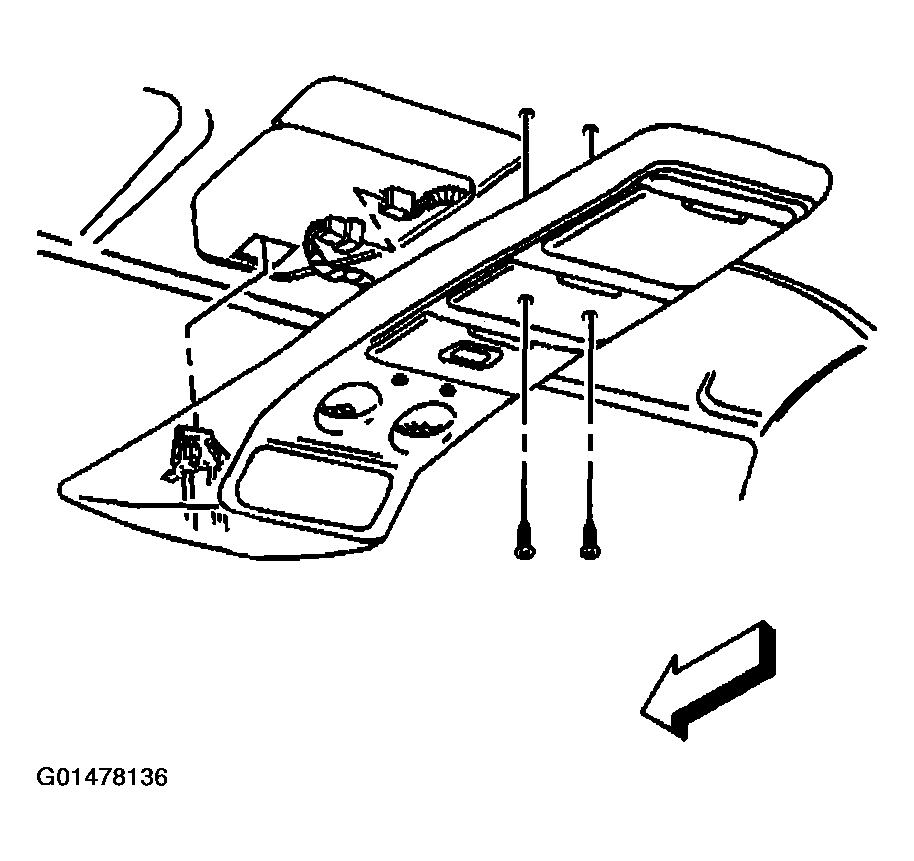

    Fig 1: Overhead (Full Length) Console
    G01478136Courtesy of GENERAL MOTORS CORP.
