Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seat floor filler trim panels. Refer to SEAT BACK FILLER PANEL REPLACEMENT -- REAR in Seats.
  2. Remove the body side trim panels, as necessary. Refer to TRIM PANEL REPLACEMENT - BODY SIDE (STANDARD CAB PICKUP)  or TRIM PANEL REPLACEMENT - BODY SIDE (EXTENDED CAB PICKUP)  or TRIM PANEL REPLACEMENT - BODY SIDE (2-DOOR UTILITY)  or TRIM PANEL REPLACEMENT - BODY SIDE (4-DOOR UTILITY)  or TRIM PANEL REPLACEMENT - BODY SIDE (CREW CAB) .
  3. Remove the jack from the vehicle.

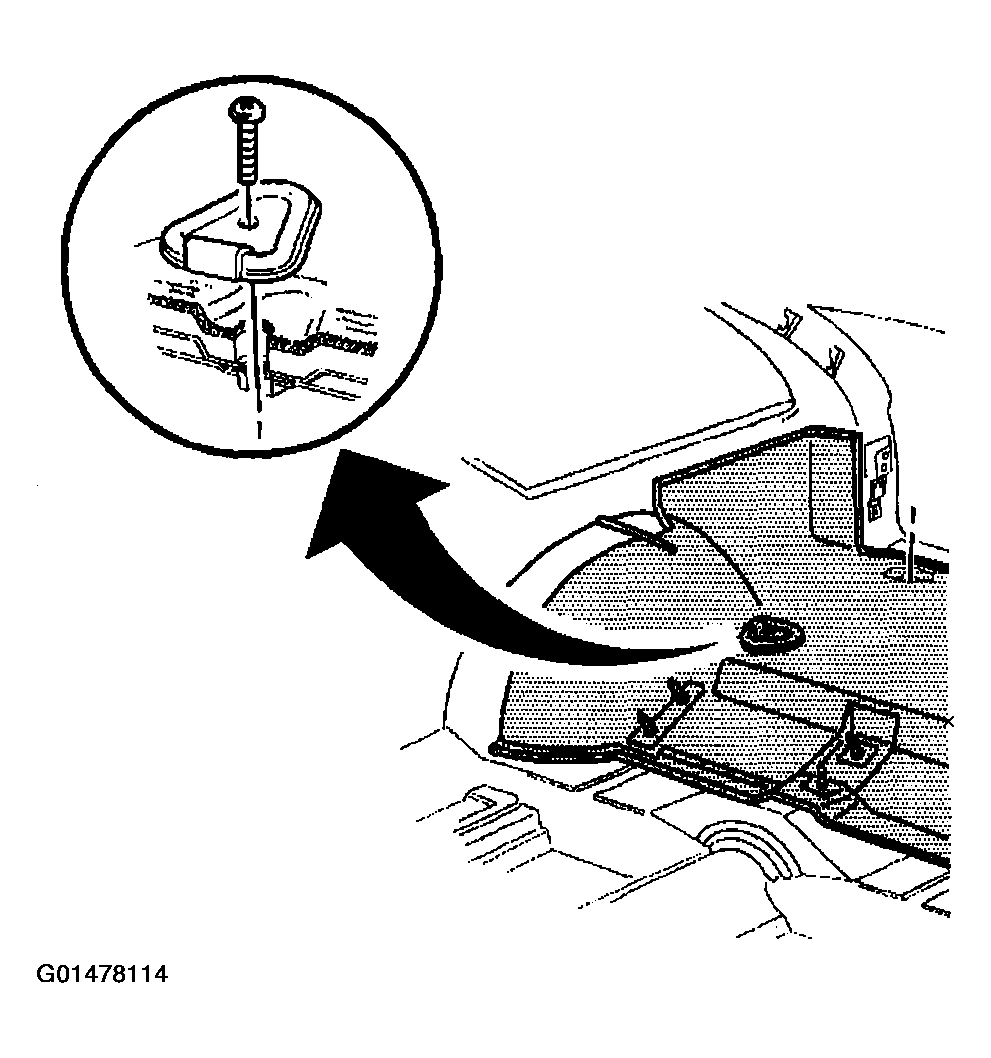

    Fig 1: Cargo Tie Down Hooks
    G01478114Courtesy of GENERAL MOTORS CORP.
  4. Remove the endgate or the liftgate door sill trim plate. Refer to DOOR SILL PLATE REPLACEMENT - END GATE  or to DOOR SILL PLATE REPLACEMENT - LIFT GATE .
  5. Remove the bolts that retain the cargo tie down hooks to the floor.
  6. Remove the cargo tie down hooks.
  7. Remove the rear carpet or the mat from the vehicle.

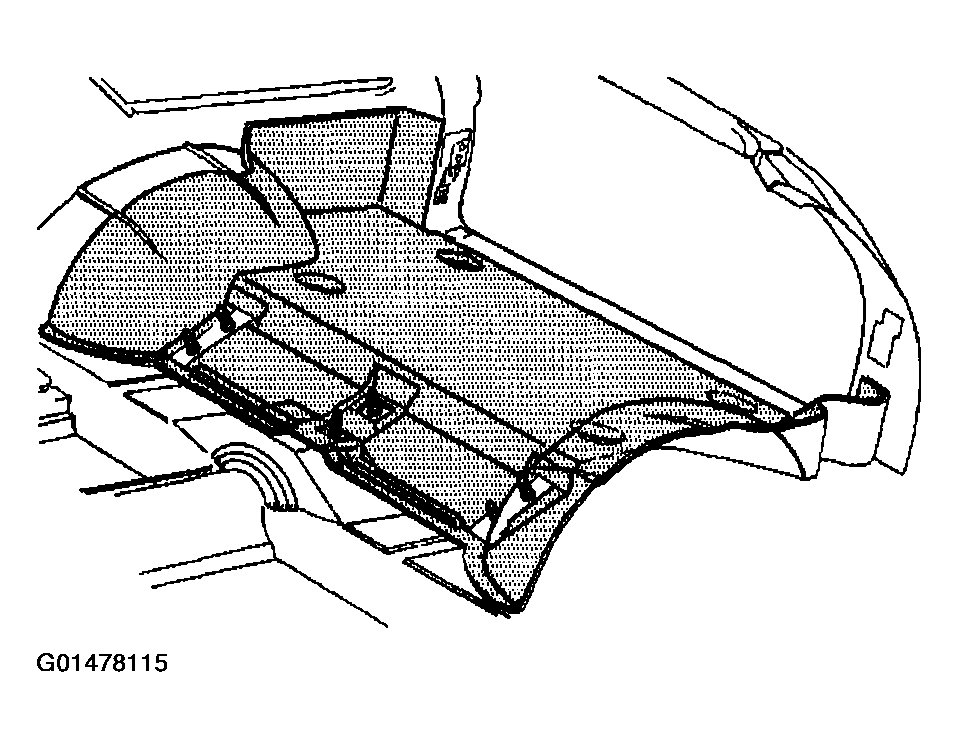

    Fig 2: Removing Rear Carpet From Vehicle
    G01478115Courtesy of GENERAL MOTORS CORP.
