Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: In order to avoid personal Injury or vehicle damage when you repair or replace the carpet, use the same thickness and material size as the original installation. Always return the carpet to the original location.
  1. Install the rear carpet or the mat to the vehicle.

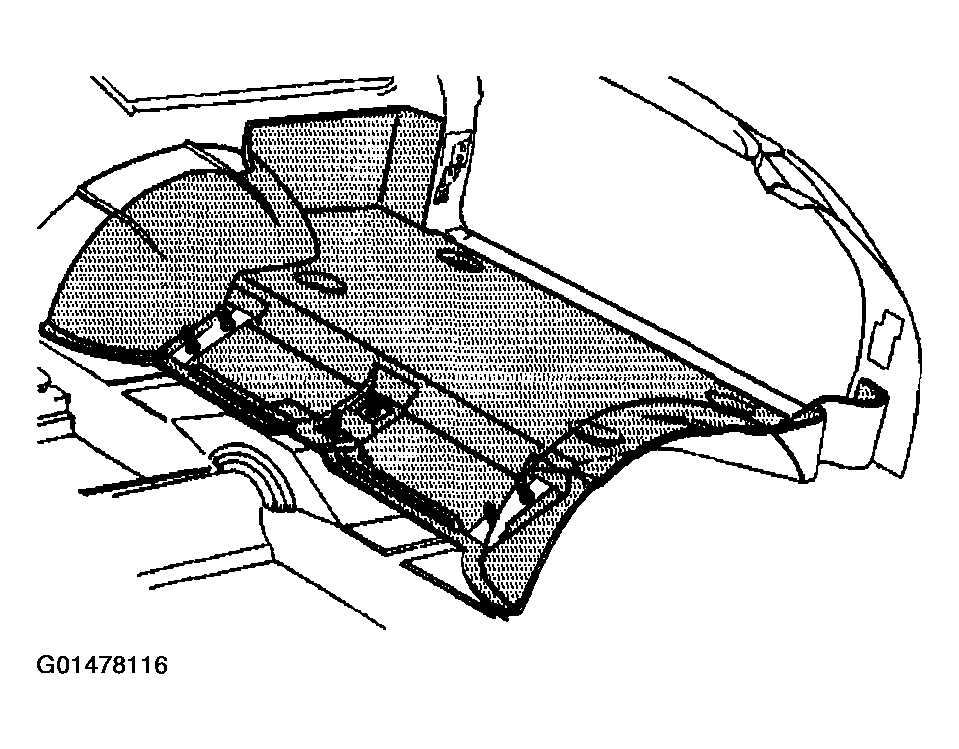

    Fig 1: Installing Rear Carpet To Vehicle
    G01478116Courtesy of GENERAL MOTORS CORP.
  2. Install the cargo tie down hooks.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the bolts that retain the cargo tie down hooks to the floor.

    Tighten

    Tighten the bolts to 35 N.m (26 Ib ft).

  4. Install the endgate or the liftgate door sill trim plate. Refer to DOOR SILL PLATE REPLACEMENT - END GATE  or to DOOR SILL PLATE REPLACEMENT - LIFT GATE .
  5. Install the jack to the vehicle.
  6. Install the body side trim panels, as necessary. Refer to TRIM PANEL REPLACEMENT - BODY SIDE (STANDARD CAB PICKUP)  or TRIM PANEL REPLACEMENT - BODY SIDE (EXTENDED CAB PICKUP)  or TRIM PANEL REPLACEMENT - BODY SIDE (2-DOOR UTILITY)  or TRIM PANEL REPLACEMENT - BODY SIDE (4-DOOR UTILITY)  or TRIM PANEL REPLACEMENT - BODY SIDE (CREW CAB) .

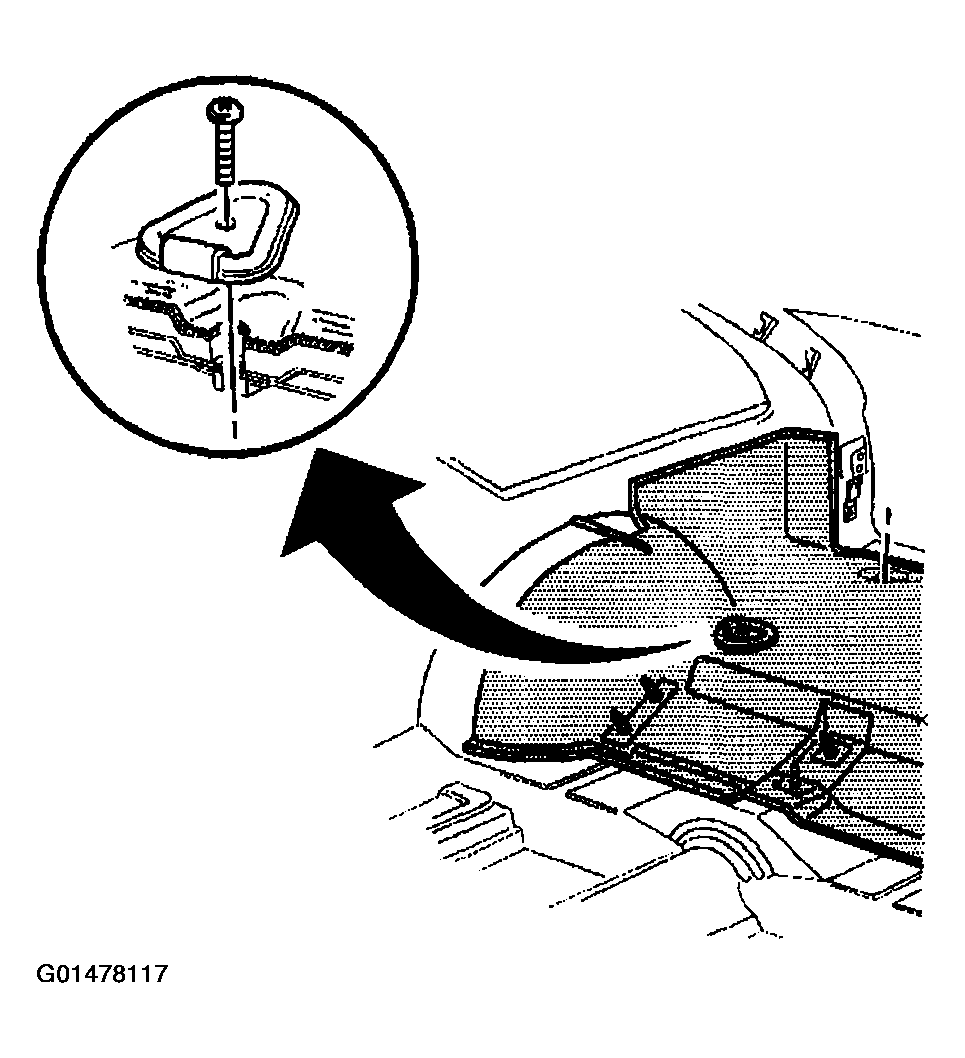

    Fig 2: Cargo Tie Down Hooks
    G01478117Courtesy of GENERAL MOTORS CORP.
  7. Install the rear seat floor filler trim panels. Refer to SEAT BACK FILLER PANEL REPLACEMENT -- REAR in Seats.
