Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the rear seat back in the vehicle.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the 2 bolts securing the rear seat back to the floor.

    Tighten

    Tighten the rear seat back mounting bolts to 80 N.m (59 lb ft).

  3. Install the 2 washers and nuts securing the rear seat back to the floor studs.

    Tighten

    Tighten the rear seat back nuts to 80 N.m (59 lb ft).

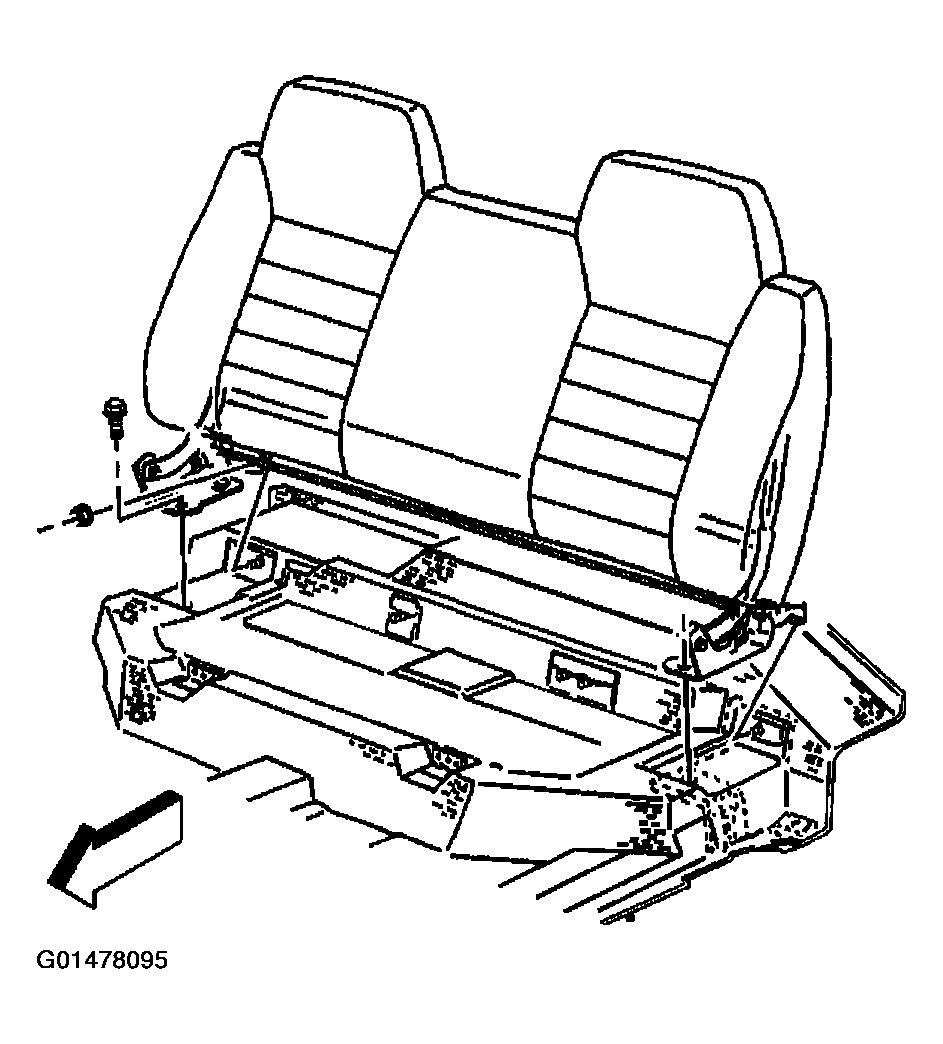

    Fig 1: Installing Rear Seat Back In Vehicle
    G01478095Courtesy of GENERAL MOTORS CORP.
  4. Install the rear seat bottom to vehicle. Insure seat bottom frame is engaged with tabs in seat back mounting bracket.
  5. Install the 2 bolts retaining the rear seat bottom to the floor.

    Tighten

    Tighten the rear seat bottom bolts to 25 N.m (18 lb ft).

  6. Install the seat bottom cushion ear retainers into the seat back mounting bracket.

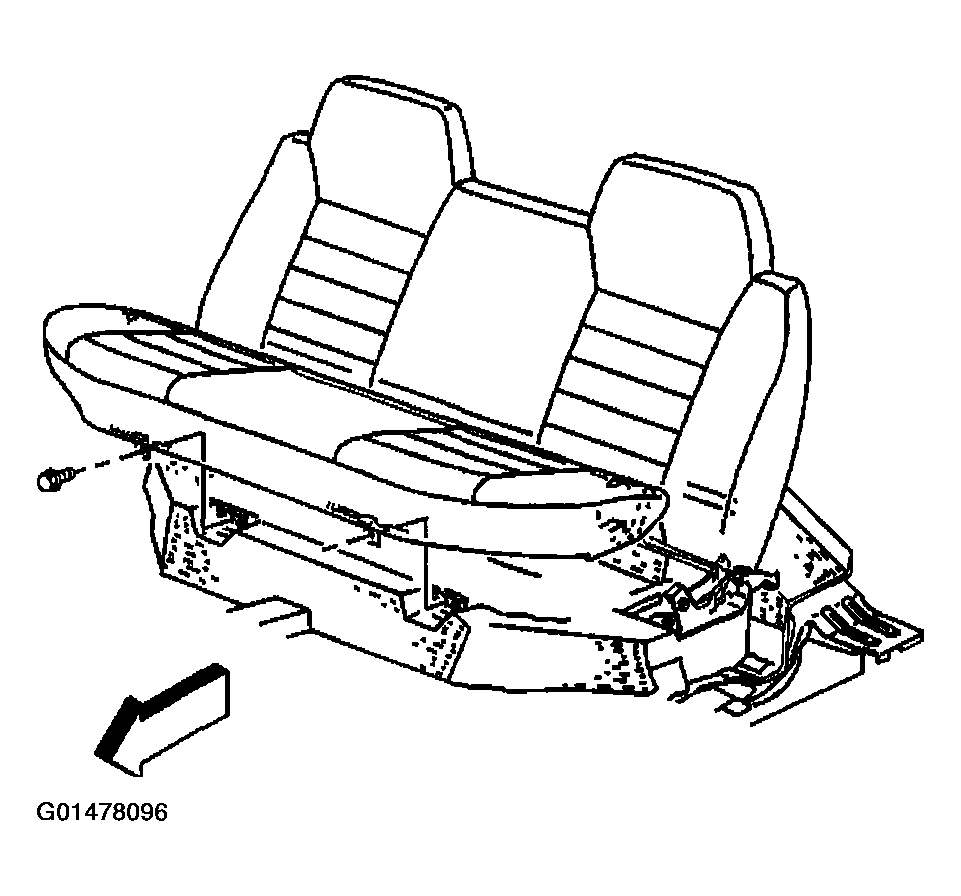

    Fig 2: Installing Rear Seat Bottom To Vehicle
    G01478096Courtesy of GENERAL MOTORS CORP.
