Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the seat adjuster trim covers. Refer to SEAT ADJUSTER TRACK COVER REPLACEMENT - Front (Power)  or SEAT ADJUSTER TRACK COVER REPLACEMENT - Front (Manual) .
  2. Remove 3 seat mounting nuts.
  3. Remove the seat mounting bolt.
  4. Disconnect the electrical connectors from seat if necessary.
  5. Remove the seat from the vehicle.

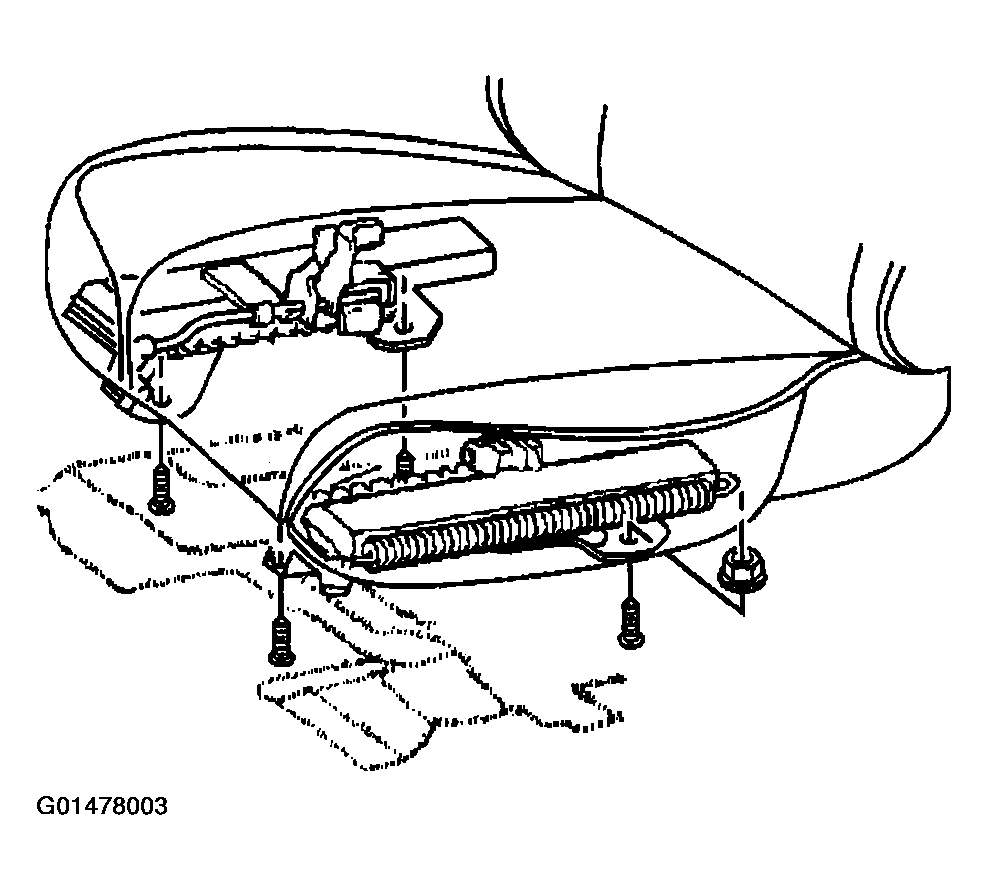

    Fig 1: Removing Seat (Bucket) From Vehicle
    G01478003Courtesy of GENERAL MOTORS CORP.
