Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Refer to BATTERY DISCONNECT CAUTION in Cautions and Notices.
  1. Disconnect the battery negative cable in the power seat only.
  2. Remove the seat adjuster trim covers. Refer to SEAT ADJUSTER TRACK COVER REPLACEMENT - Front (Power)  or SEAT ADJUSTER TRACK COVER REPLACEMENT - Front (Manual) .
  3. Disconnect the electrical connectors, if equipped.
  4. Remove the seat mounting nuts.
  5. Remove the seat mounting bolts.
  6. Guide the seat belts through the slots in the seat. Remove the seat from the vehicle.

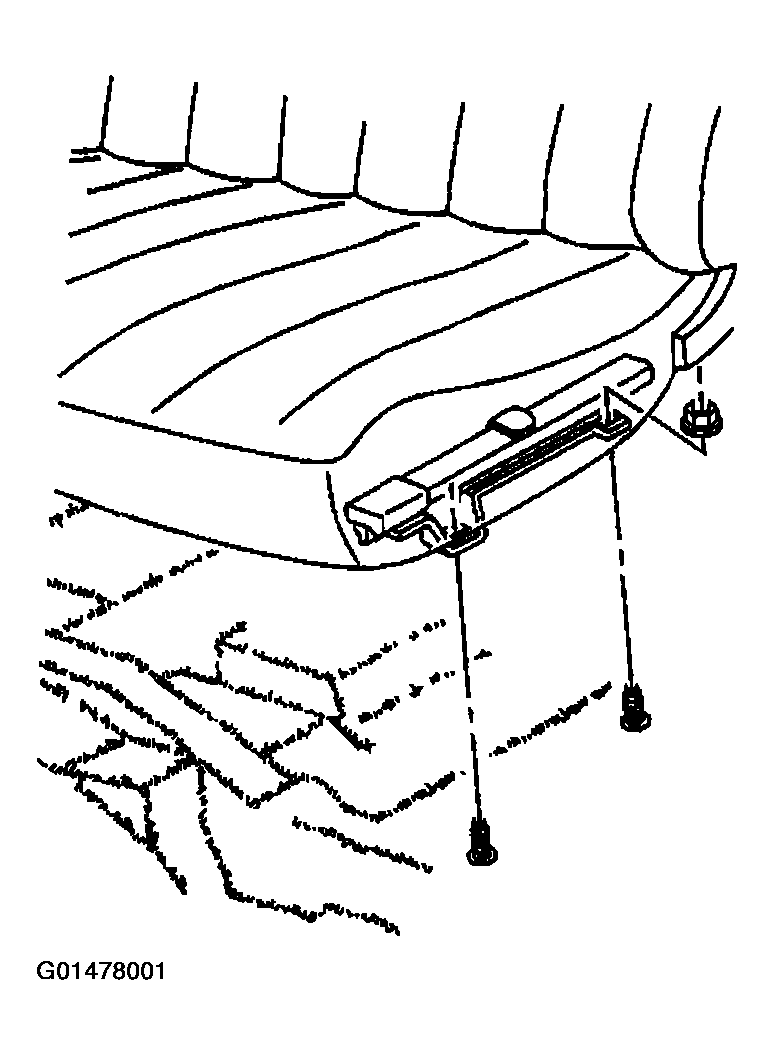

    Fig 1: Removing Seat (Bench) From Vehicle
    G01478001Courtesy of GENERAL MOTORS CORP.
