Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the seat from the vehicle. Refer to SEAT REPLACEMENT - Bucket .
  2. Remove the seat back recliner handle.
  3. Remove the 4 J-strips (1) securing the seat cover to the frame.
  4. Remove spring (2) from the seat adjuster.

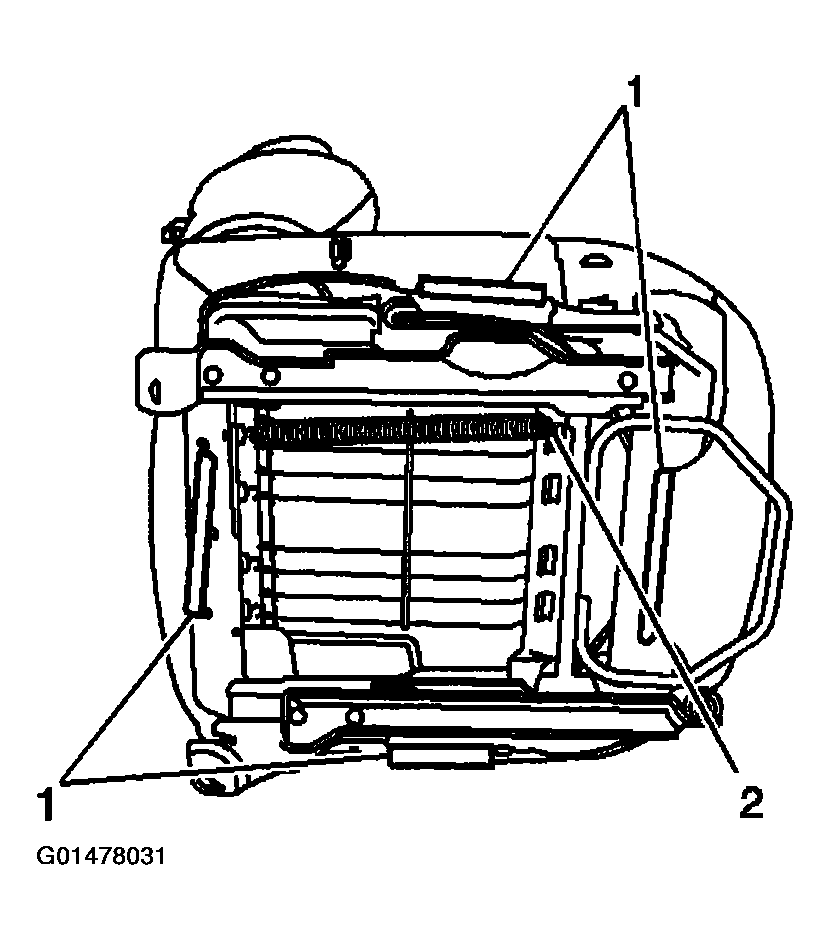

    Fig 1: Removing J-Strips Securing Seat Cover To Frame & Spring From Seat Adjuster
    G01478031Courtesy of GENERAL MOTORS CORP.
  5. Pull the seat cushion pad and cover back to expose the frame.
  6. Remove the 2 nuts (1) securing the seat adjuster rail to the frame.

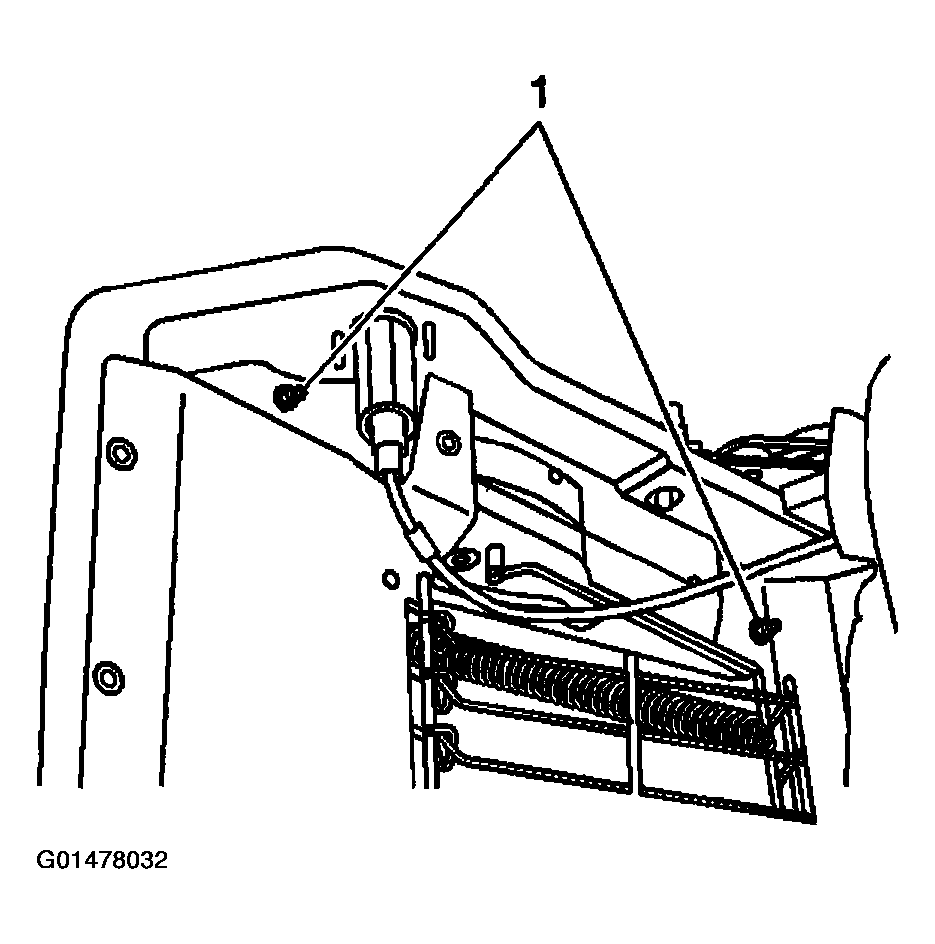

    Fig 2: Removing Nuts Securing Seat Adjuster Rail To Frame
    G01478032Courtesy of GENERAL MOTORS CORP.
  7. Remove the cable (2) from the clip (1) on the adjuster rail.
  8. Remove the cable (2) from the hole in the adjuster rail.
  9. Remove the cable from the pass through hole (2) in the adjuster rail.

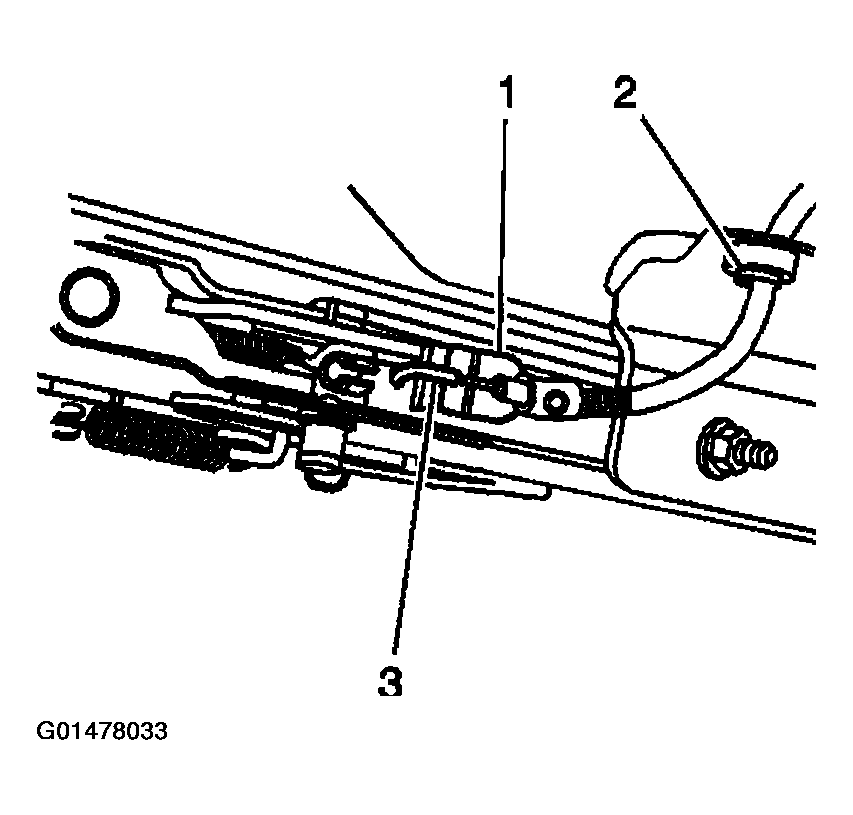

    Fig 3: Removing Cable From Clip On Adjuster Rail
    G01478033Courtesy of GENERAL MOTORS CORP.
  10. Remove the 2 bolts (1) from the seat back pivot assembly.
  11. Remove the cable cover bracket (2).

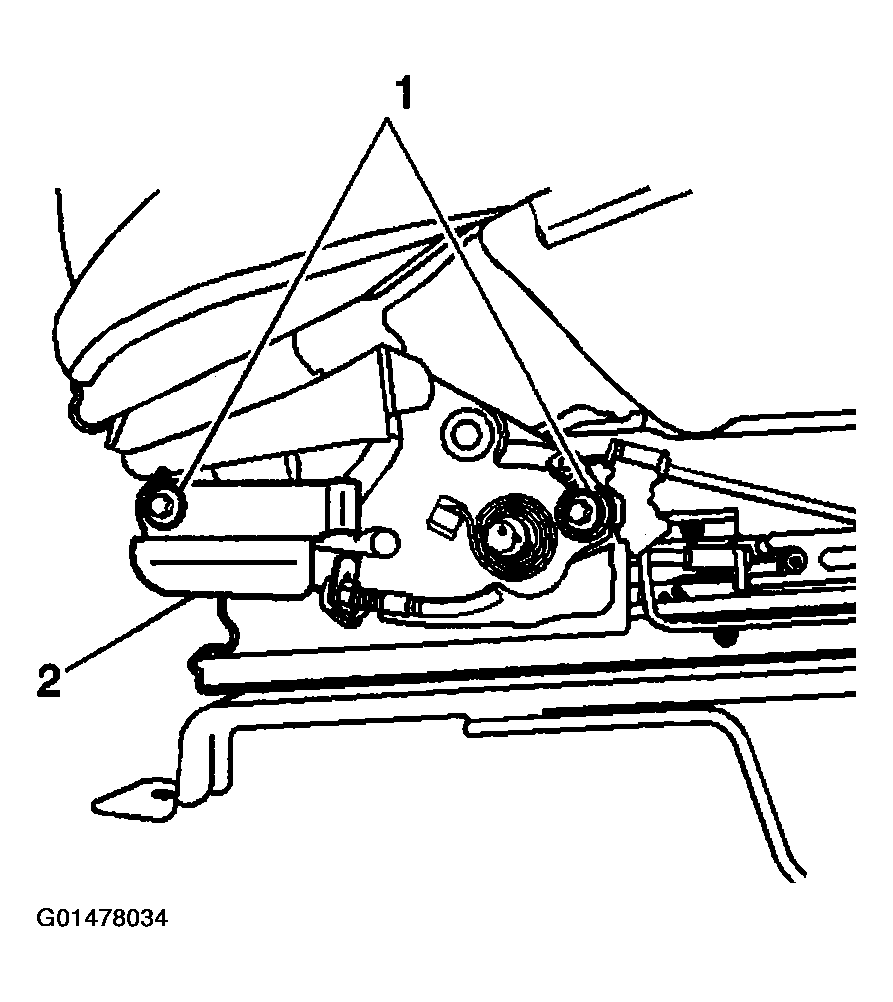

    Fig 4: Cable Cover Bracket
    G01478034Courtesy of GENERAL MOTORS CORP.
  12. Remove the cable (3) from the bracket (1) by loosening cable nut (2).
  13. Remove cable (3).

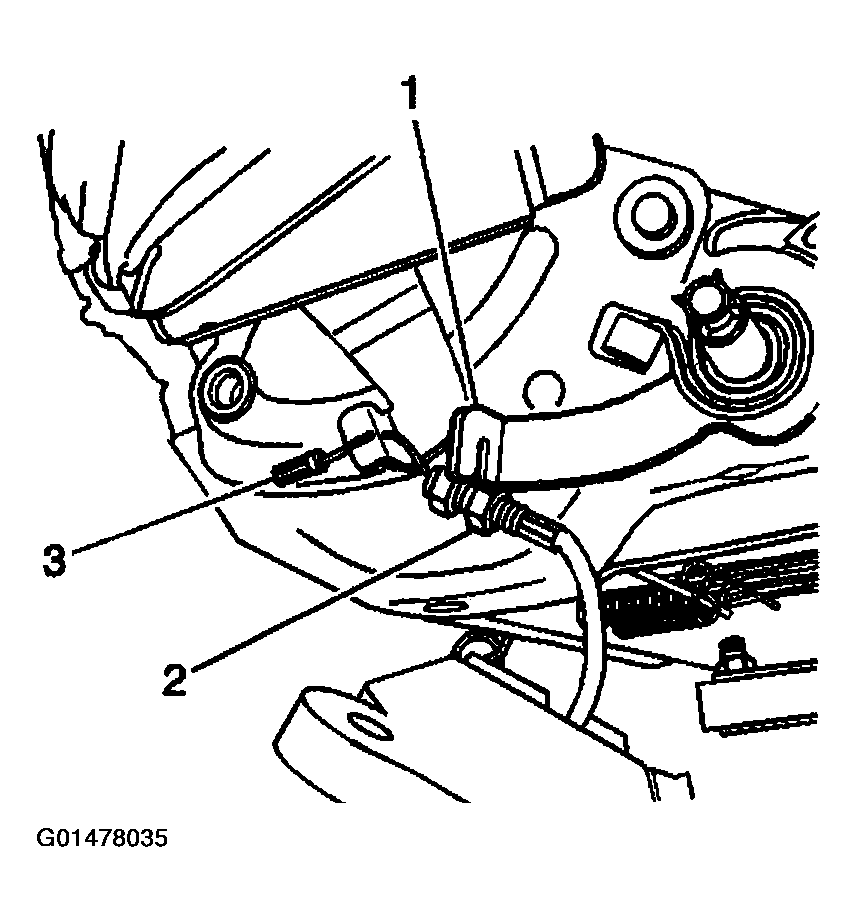

    Fig 5: Removing Cable From Bracket By Loosening Cable Nut
    G01478035Courtesy of GENERAL MOTORS CORP.
