Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the recliner assembly to the seat.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the recliner assembly to the seat frame bolts.

    Tighten

    Tighten the recliner assembly to the seat frame bolts to 24 N.m (18 lb ft).

  3. Install the inertia latch.
  4. Install the recliner trim cover to the seat.
  5. Install the recliner handle.

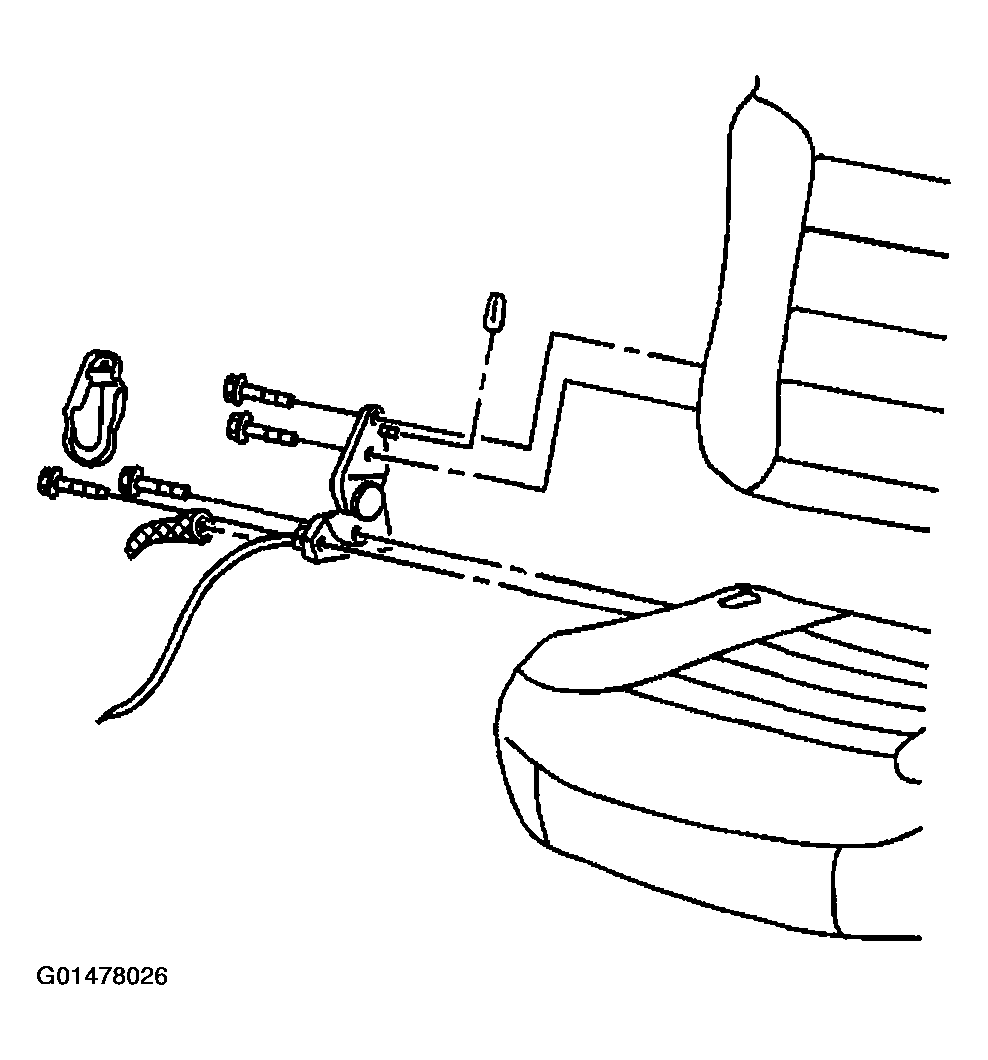

    Fig 1: Installing Recliner Assembly To Seat
    G01478026Courtesy of GENERAL MOTORS CORP.
