Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the handle retaining screw.
  2. Remove the recliner handle (1) from the seat bottom.

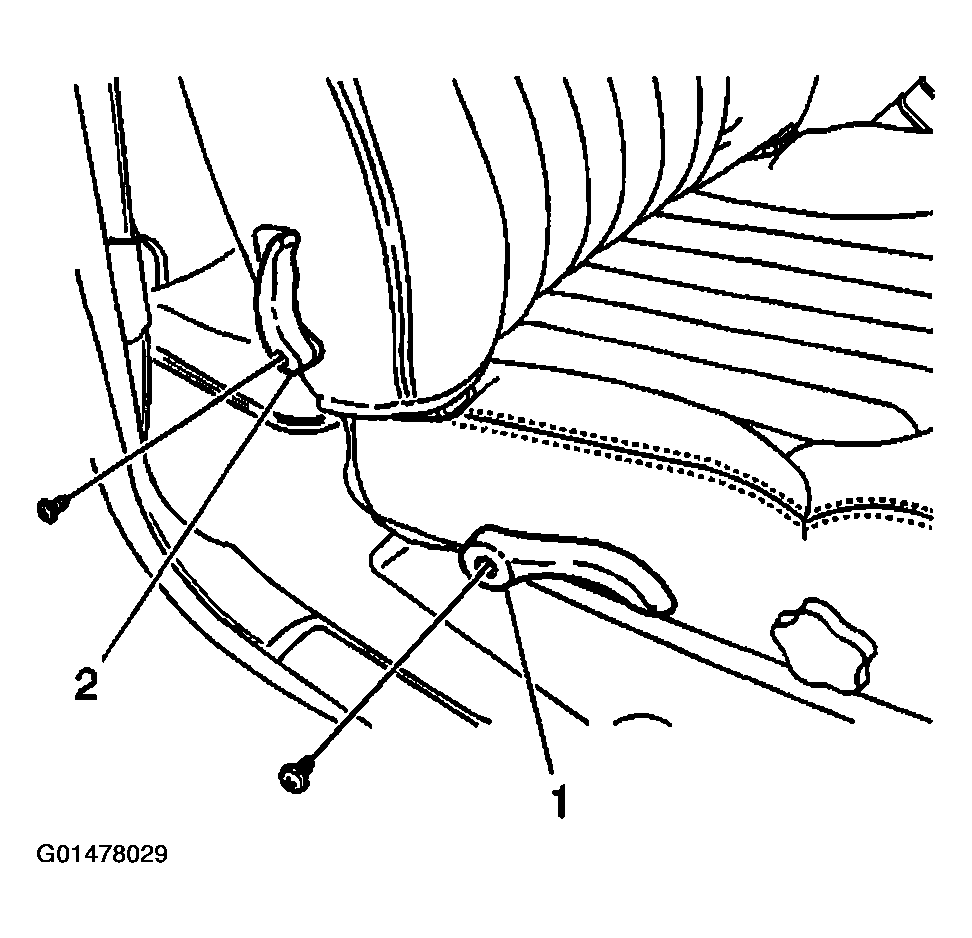

    Fig 1: Removing Recliner Handle From Seat Bottom
    G01478029Courtesy of GENERAL MOTORS CORP.
