Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the head restraint, if equipped, from the seat back. Refer to HEAD RESTRAINT REPLACEMENT - Front Seat .
  2. Remove the EZ entry release handle, if equipped, from the seat back. Refer to EZ ENTRY SEAT MANUAL RELEASE KNOB REPLACEMENT .
  3. Separate the J-strip at the base of the seat back.

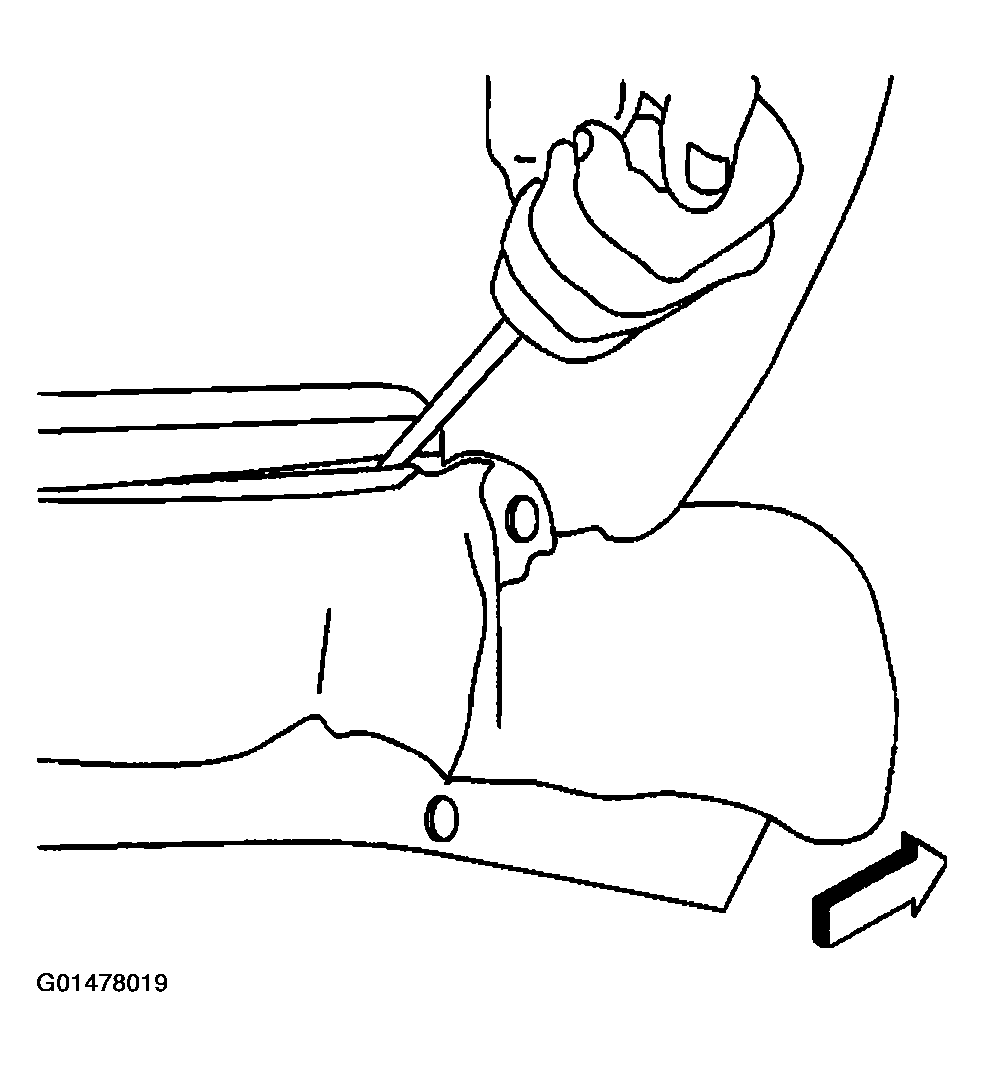

    Fig 1: Removing J-Strip At Base Of Seat Back
    G01478019Courtesy of GENERAL MOTORS CORP.
  4. Remove the seat cover from the pad by sliding the cover upward off the seat back.
  5. Remove the seat back cardboard by unhooking the plastic clips from the lumber support.
    Fig 2: Removing Seat Back Cardboard By Unhooking Plastic Clips From Lumber Support
    G01478020Courtesy of GENERAL MOTORS CORP.
  6. Separate the seat back pad from the seat back frame.

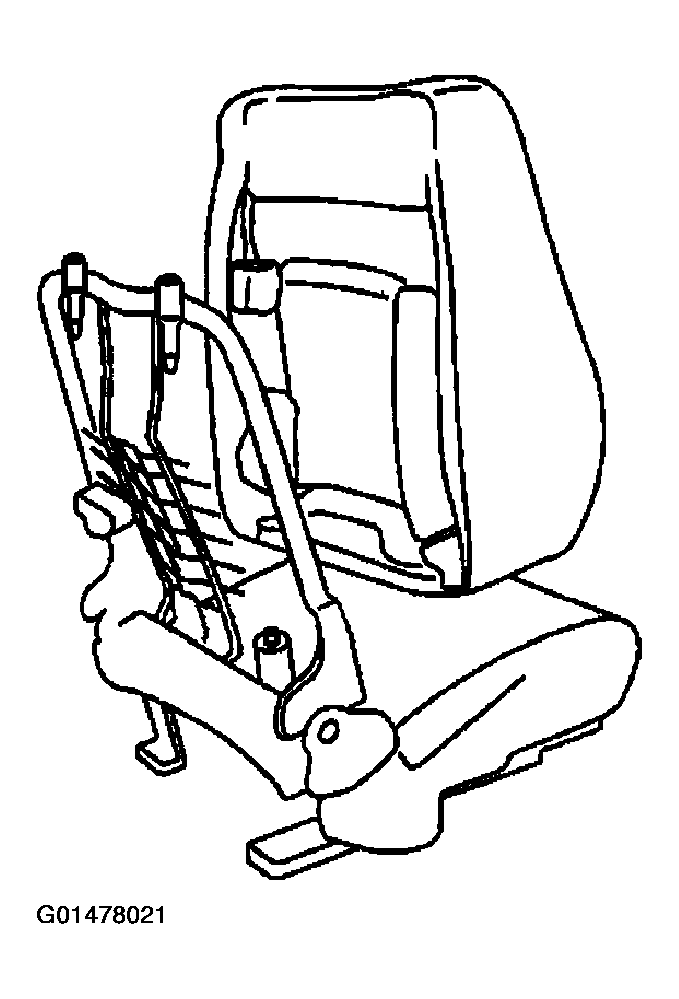

    Fig 3: Removing Seat Back Pad From Seat Back Frame
    G01478021Courtesy of GENERAL MOTORS CORP.
