Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the seat back pad onto the seat back frame.

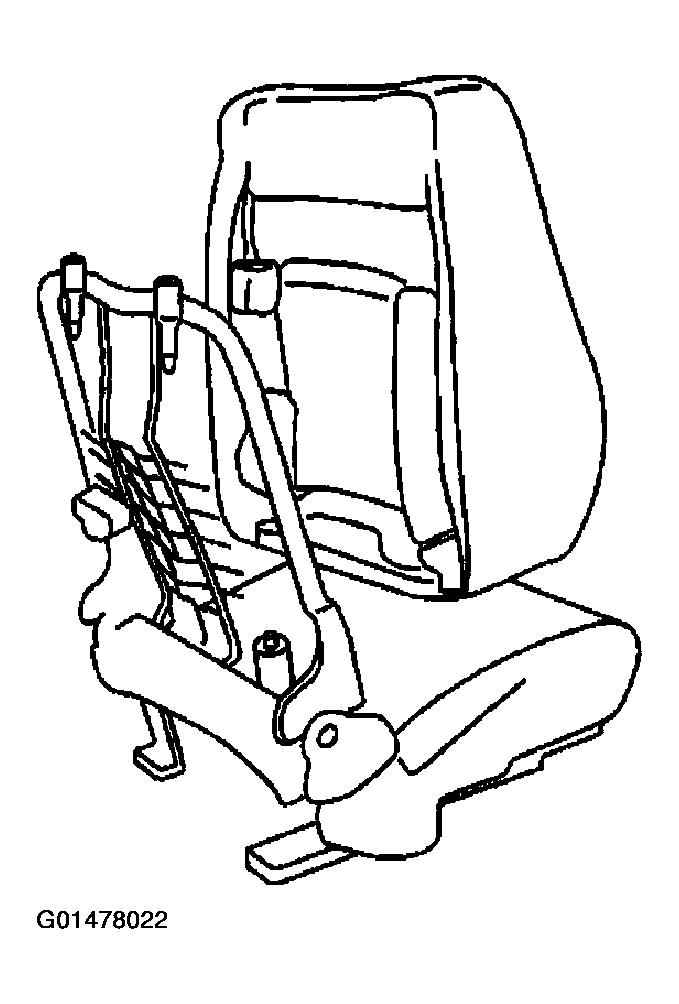

    Fig 1: Installing Seat Back Pad Onto Seat Back Frame
    G01478022Courtesy of GENERAL MOTORS CORP.
  2. Install the seat back cardboard to the seat by hooking the plastic clips onto the lumbar support.
  3. Pull the seat cover over the entire seat back.
    Fig 2: Installing Seat Back Cardboard To Seat By Hooking Plastic Clips Onto Lumbar Support
    G01478023Courtesy of GENERAL MOTORS CORP.
  4. Engage the J-strip at the base of the seat back.
  5. Install the head restraint to the seat back. Refer to HEAD RESTRAINT REPLACEMENT - Front Seat .

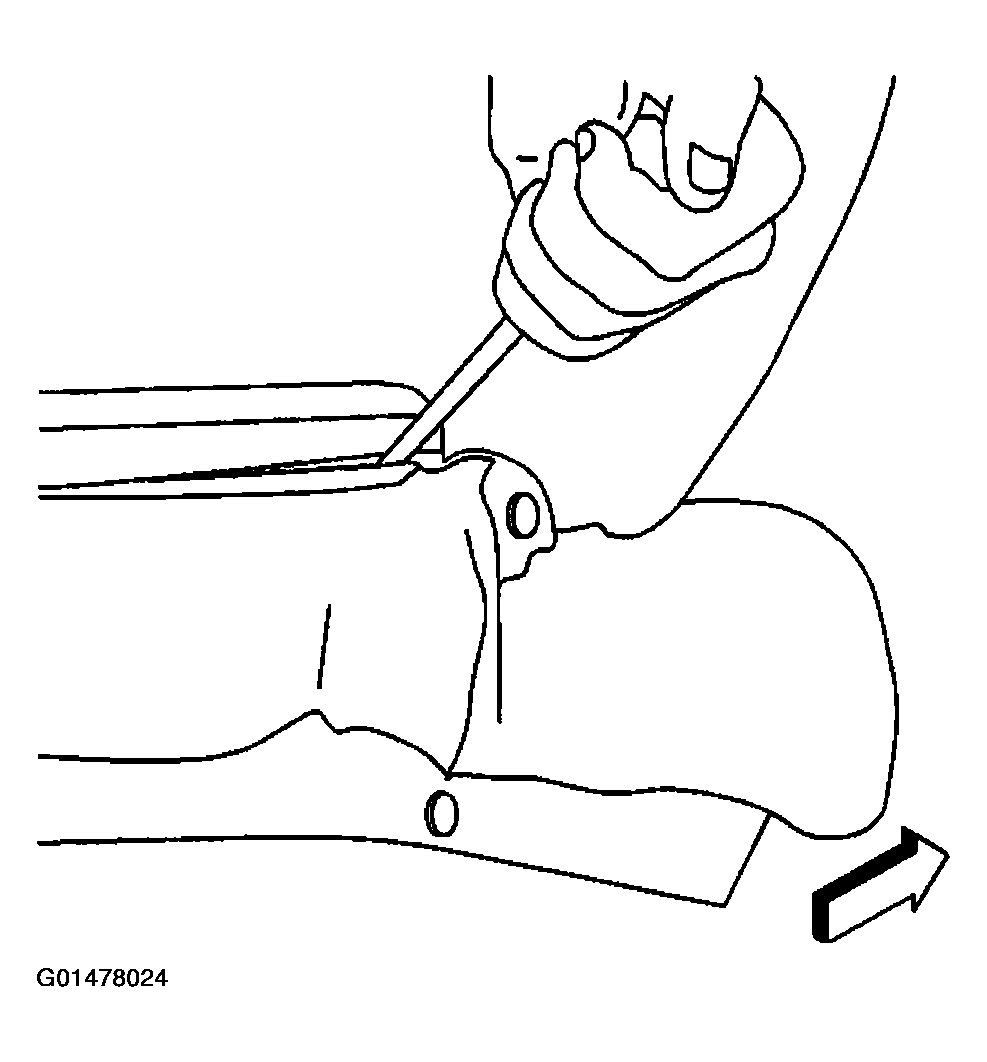

    Fig 3: Installing J-Strip At Base Of Seat Back
    G01478024Courtesy of GENERAL MOTORS CORP.
