Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the side covers.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the screws to the side covers at the seat assembly.

    Tighten

    Tighten the seat track cover retaining screws to 1.9 N.m (17 lb in).

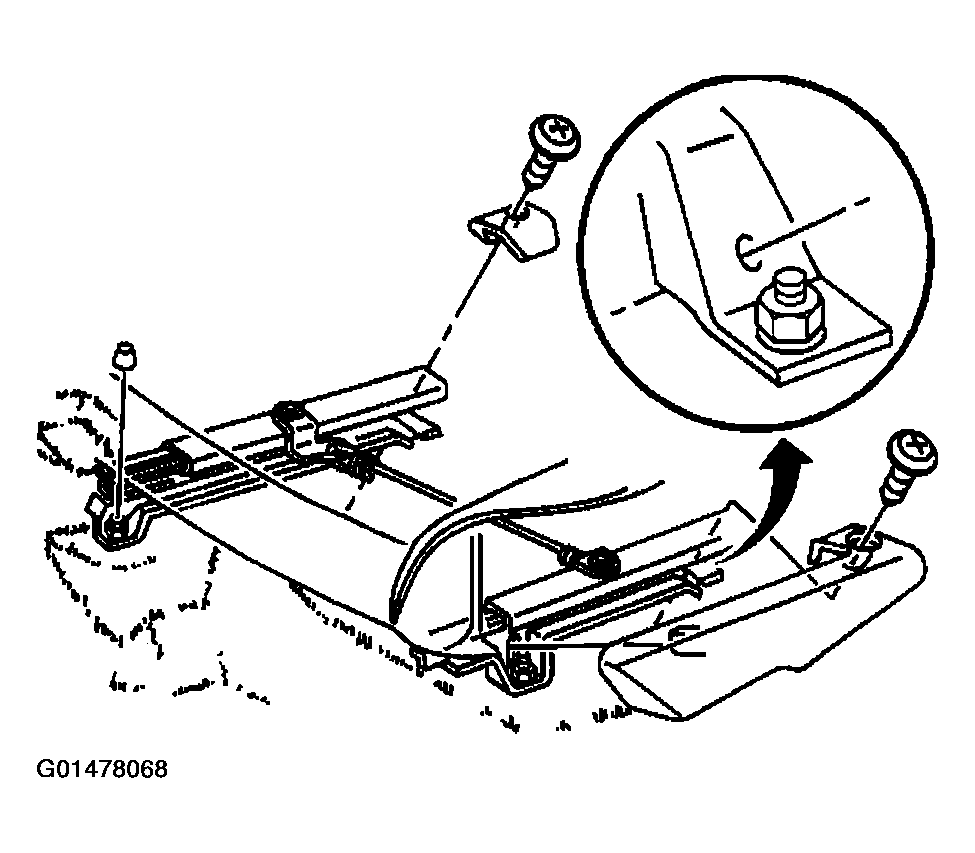

    Fig 1: Installing Screws To Side Covers At Seat Assembly
    G01478068Courtesy of GENERAL MOTORS CORP.
