Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Adjust the seat to the full upward front and rear position.
  2. Remove the seat from the vehicle. Refer to SEAT REPLACEMENT - Bucket .
  3. Remove the power seat switch from the seat. Refer to SEAT SWITCH REPLACEMENT - Power .
  4. Remove the seat belt buckle from the seat.
    Fig 1: Removing Seat Belt Buckle From Seat
    G01478049Courtesy of GENERAL MOTORS CORP.
  5. Separate the J-strips from the seat bottom frame.

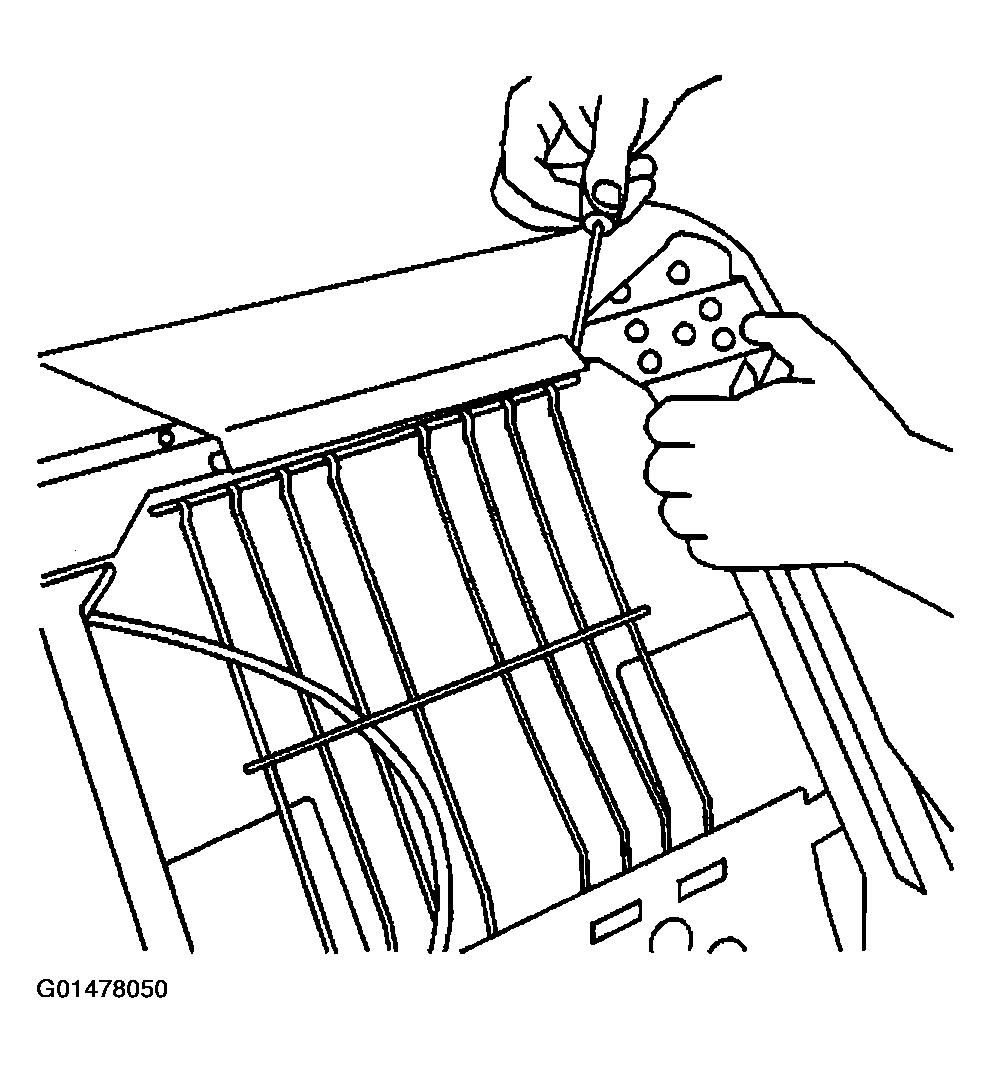

    Fig 2: Removing J-Strips From Seat Bottom Frame
    G01478050Courtesy of GENERAL MOTORS CORP.
  6. Pull the seat cover and pad up to expose the seat bottom frame.
  7. Disconnect the electrical connectors as necessary.
  8. Remove the bolts securing the seat back assembly to the seat adjuster assembly.
  9. Remove the seat back assembly.
  10. Remove the 4 nuts securing the seat bottom frame to the seat adjuster assembly.
  11. Remove the seat adjuster assembly.

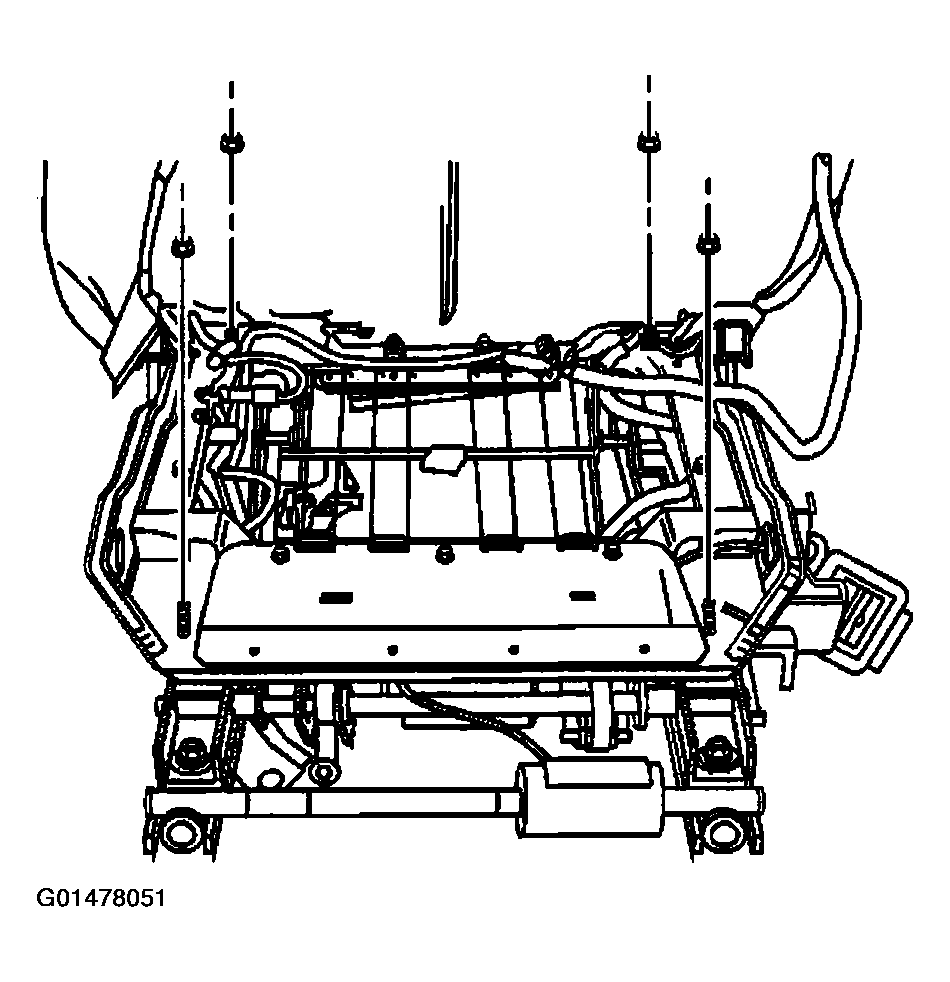

    Fig 3: Removing Nuts Securing Seat Bottom Frame To Seat Adjuster Assembly
    G01478051Courtesy of GENERAL MOTORS CORP.
