Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  1. Install the seat adjuster assembly to the seat bottom frame with 4 nuts.

    Tighten

    Tighten the adjuster to the seat bolts to 24 N.m (18 lb ft).

  2. Install the seat back assembly to the seat adjuster assembly with four bolts.

    Tighten

    Tighten the bolts to 24 N.m (18 lb ft).

  3. Connect the electrical connectors.

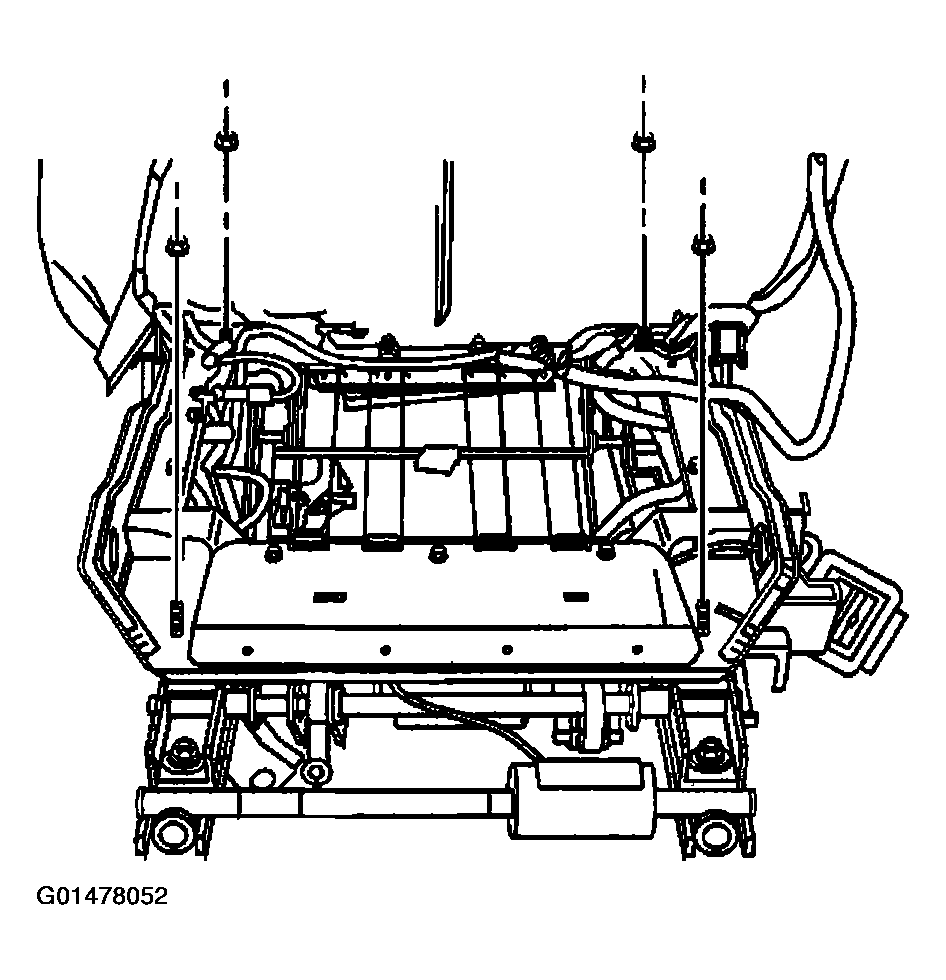

    Fig 1: Installing Seat Adjuster Assembly To Seat Bottom Frame With Nuts
    G01478052Courtesy of GENERAL MOTORS CORP.
  4. Pull the seat pad and seat cover back down on the seat bottom frame.
  5. Engage the J-strips to the seat bottom frame.

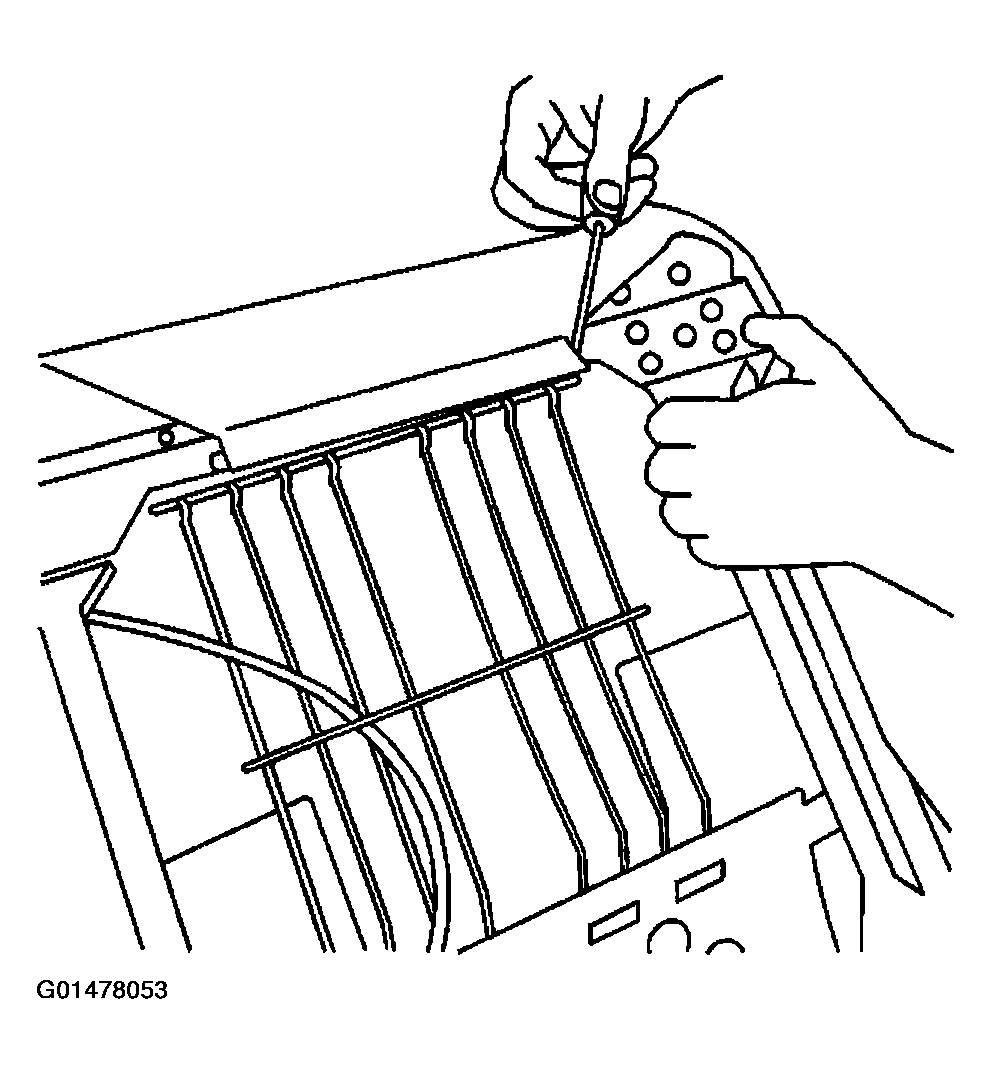

    Fig 2: Installing J-Strips To Seat Bottom Frame
    G01478053Courtesy of GENERAL MOTORS CORP.
  6. Install the seat belt buckle to the seat.

    Tighten

    Tighten the seat belt buckle bolt to 70 N.m (52 lb ft).

  7. Install the power seat switch to the seat. Refer to SEAT SWITCH REPLACEMENT - Power .
  8. Install the seat to the vehicle. Refer to SEAT REPLACEMENT - Bucket .
    Fig 3: Installing Seat Belt Buckle To Seat
    G01478054Courtesy of GENERAL MOTORS CORP.
