Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the seat from the vehicle. Refer to SEAT REPLACEMENT - Bench  or SEAT REPLACEMENT - Bucket .
  2. Remove the adjuster return spring.
  3. Remove the seat belt buckle from the seat.
    Fig 1: Removing Seat Belt Buckle From Seat
    G01478055Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the seat belt electrical pigtail (3) under the seat.
  5. Remove the seat back recliner handle. Refer to SEAT BACK RECLINER HANDLE REPLACEMENT - Front .
  6. Remove the lumbar support knob. Refer to LUMBAR SUPPORT KNOB REPLACEMENT .

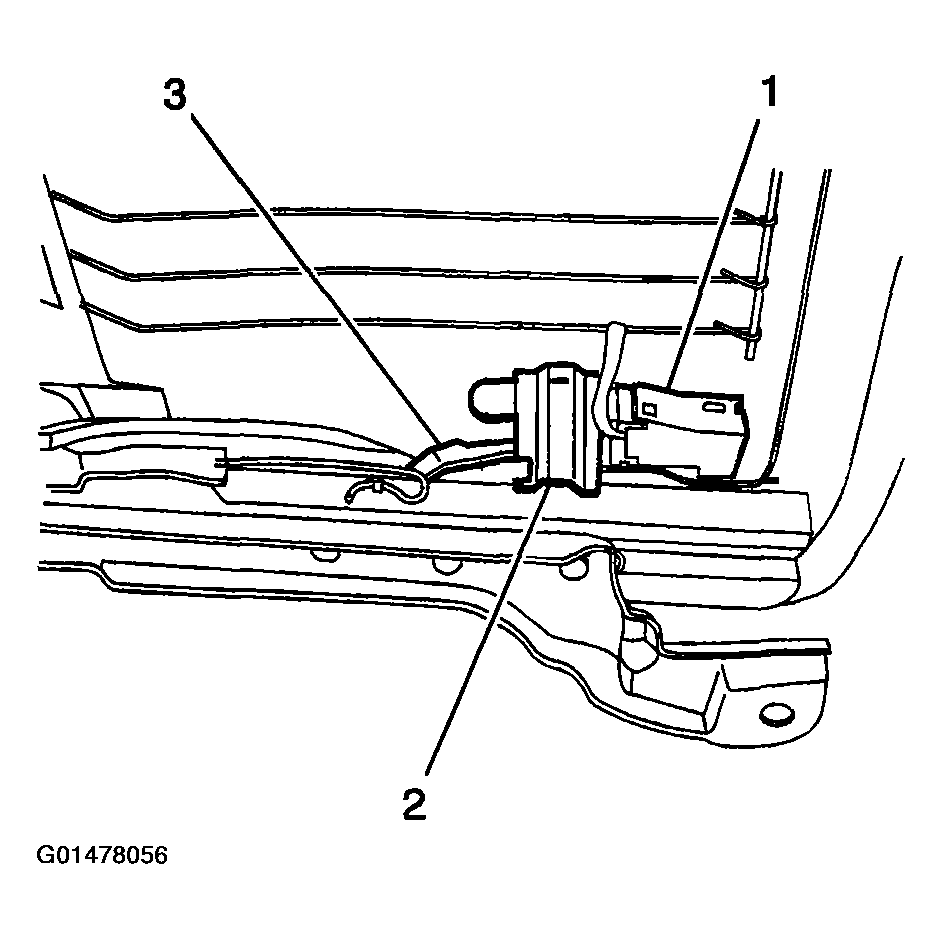

    Fig 2: Disconnecting Seat Belt Electrical Pigtail Under Seat
    G01478056Courtesy of GENERAL MOTORS CORP.
  7. Remove the J-strips (1, 2) from to seat cushion frame.

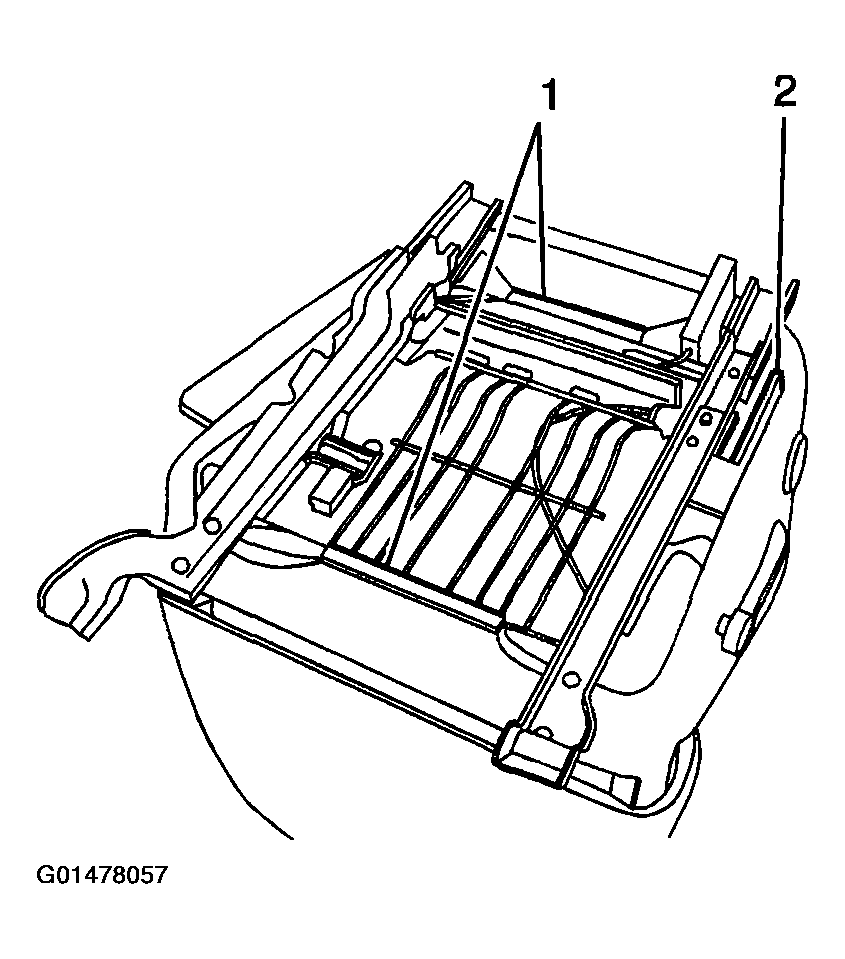

    Fig 3: Removing J-Strips From Seat Cushion Frame
    G01478057Courtesy of GENERAL MOTORS CORP.
  8. Remove the seat back recliner assembly mounting bolts (1).
  9. Remove the seat back recliner assembly.

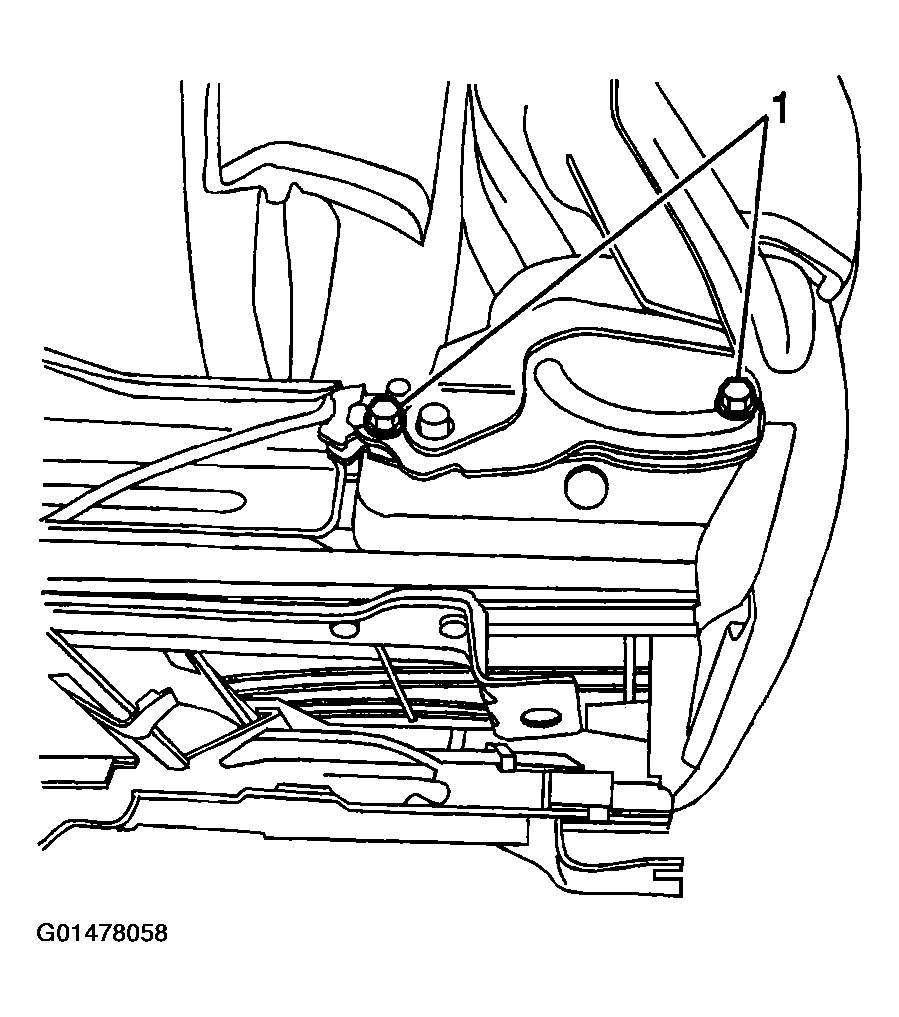

    Fig 4: Seat Back Recliner Assembly Mounting Bolts
    G01478058Courtesy of GENERAL MOTORS CORP.
  10. Pull the seat cover and cushion (1) up to expose the 4 seat frame mounting nuts (2).
  11. Remove the seat frame mounting nuts (2).
  12. Remove the seat adjuster assembly from the seat.

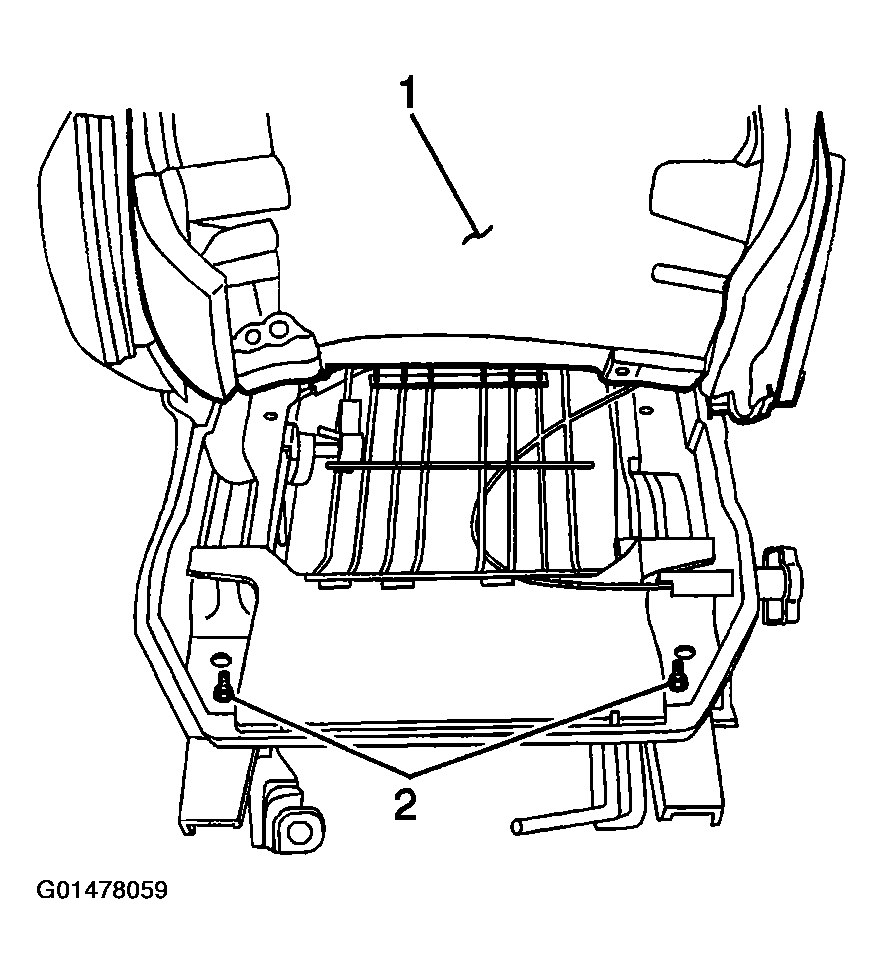

    Fig 5: Seat Frame Mounting Nuts
    G01478059Courtesy of GENERAL MOTORS CORP.
