Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the 2 screws securing the guard to the seat.
  2. Remove the guard.

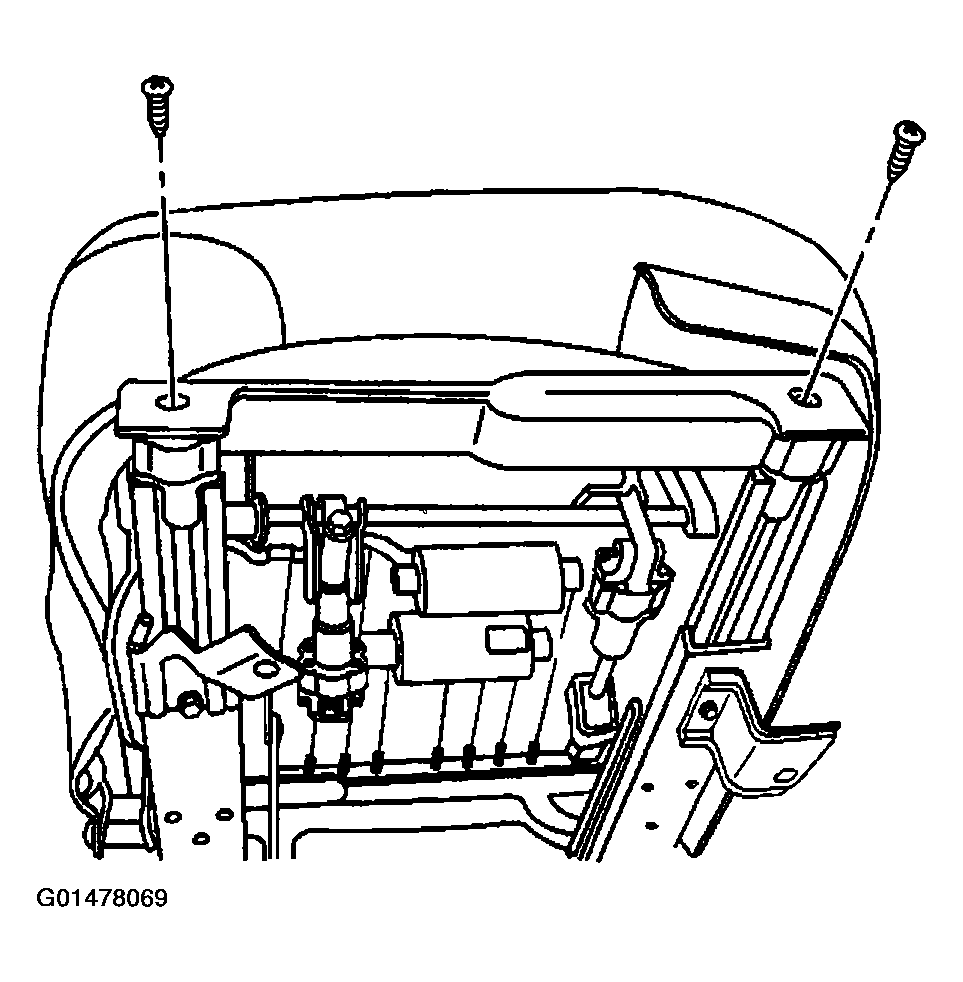

    Fig 1: Removing Screws Securing Guard To Seat
    G01478069Courtesy of GENERAL MOTORS CORP.
