Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the guard on the front of the seat adjuster assembly.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the guard to the seat with the 2 screws.

    Tighten

    Tighten the screws to 1.9 N.m (17 lb in).

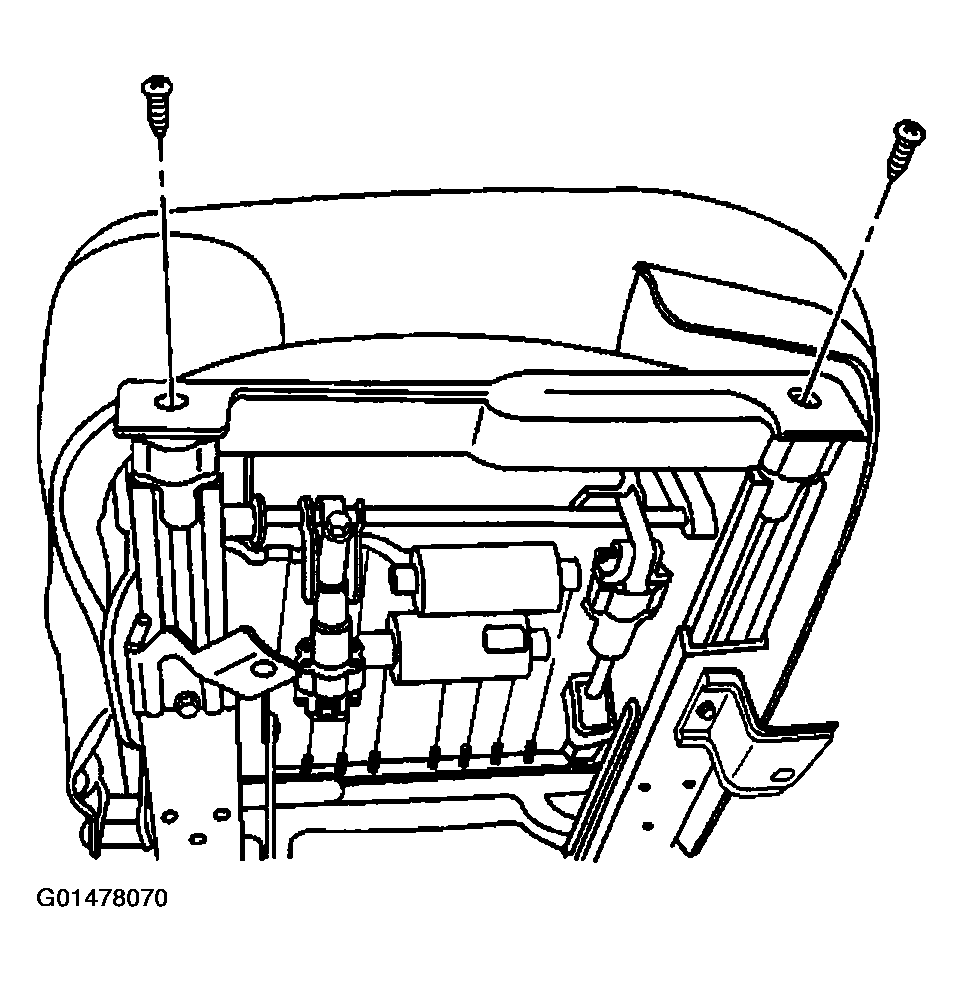

    Fig 1: Installing Guard To Seat With Screws
    G01478070Courtesy of GENERAL MOTORS CORP.
