Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove handle retaining screw.
  2. Remove the release handle (2) from the seat back.

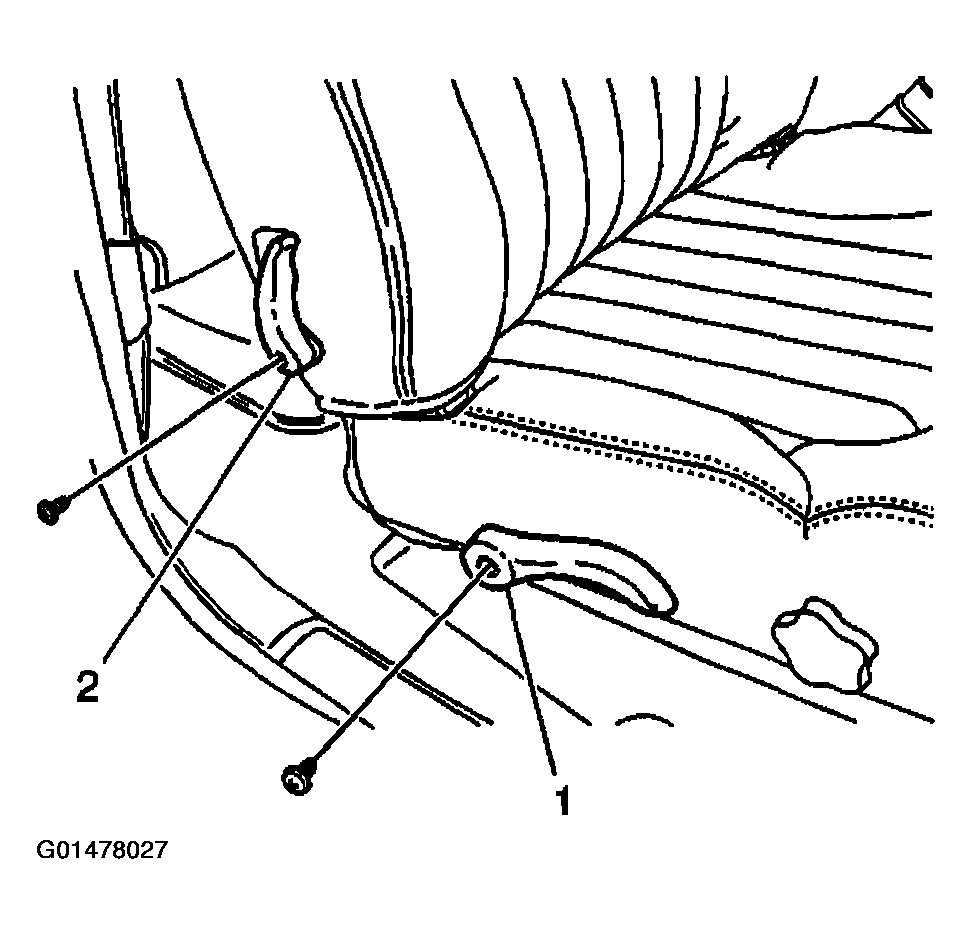

    Fig 1: Removing Release Handle From Seat Back
    G01478027Courtesy of GENERAL MOTORS CORP.
