Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the release handle (2) to the seat back.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the retaining screw to secure the handle.

    Tighten

    Tighten the handle retaining screw to 1.5 N.m (14 lb in).

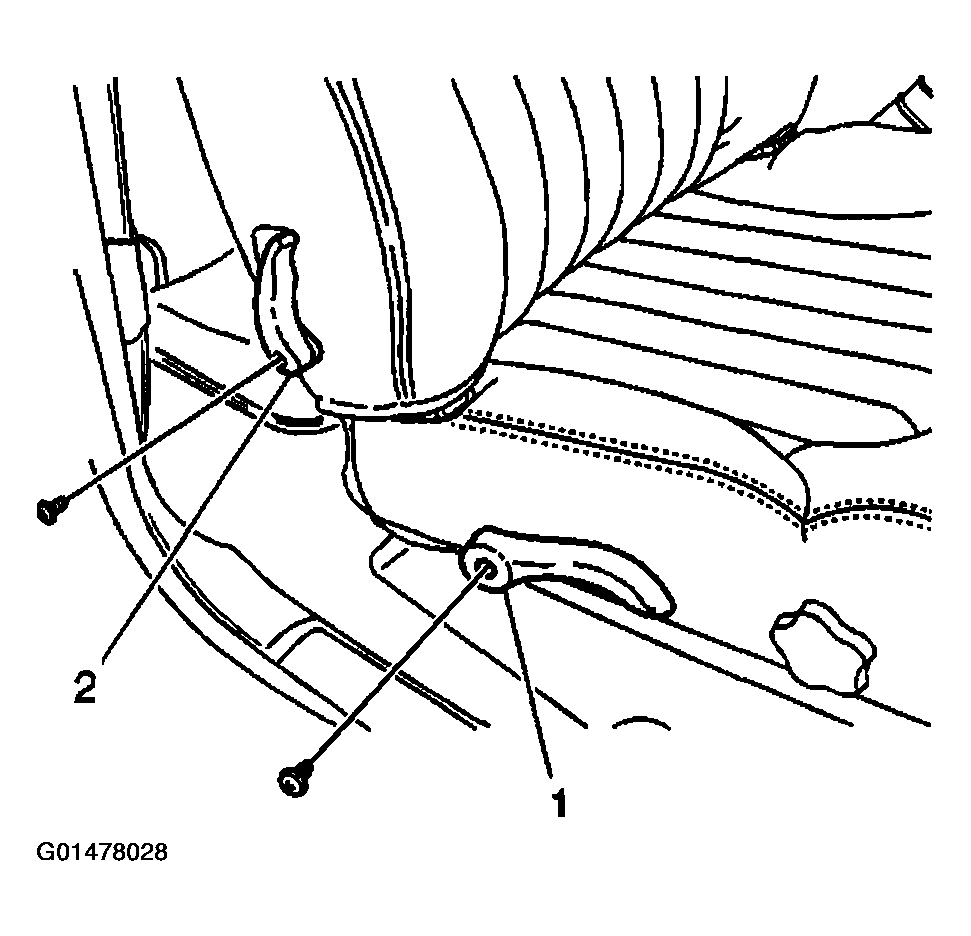

    Fig 1: Installing Release Handle To Seat Back
    G01478028Courtesy of GENERAL MOTORS CORP.
