Symptom List

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

Refer to a symptom diagnostic procedure from the following list in order to diagnose the symptom:

SYMPTOM LIST Power Seat Inoperative
SYMPTOM LIST Power Seat Does Not Move Forward/Rearward
SYMPTOM LIST Power Seat Does Not Tilt Forward
SYMPTOM LIST Power Seat Does Not Tilt Rearward
SYMPTOM LIST Power Seat Does Not Recline
SYMPTOM LIST Lumbar Support Inoperative
SYMPTOM LIST Memory Seat Feature Inoperative
SYMPTOM LIST Heated Seat Inoperative
SYMPTOM LIST Heated Seat Switch Mode Indicator Malfunction
SYMPTOM LIST Heated Seat Always On

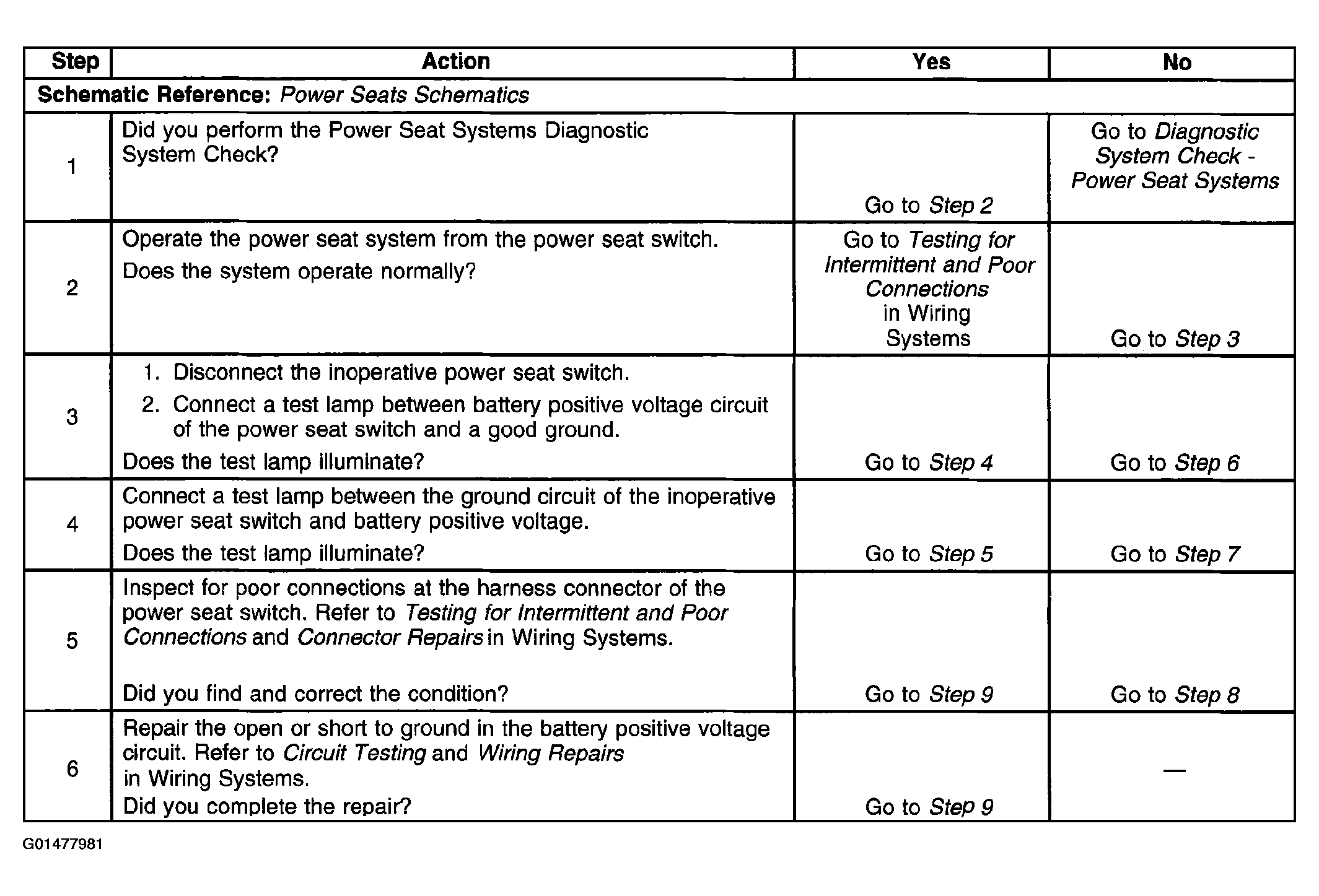

Fig 1: Power Seat Inoperative (1 Of 2)

G01477981

Courtesy of GENERAL MOTORS CORP.

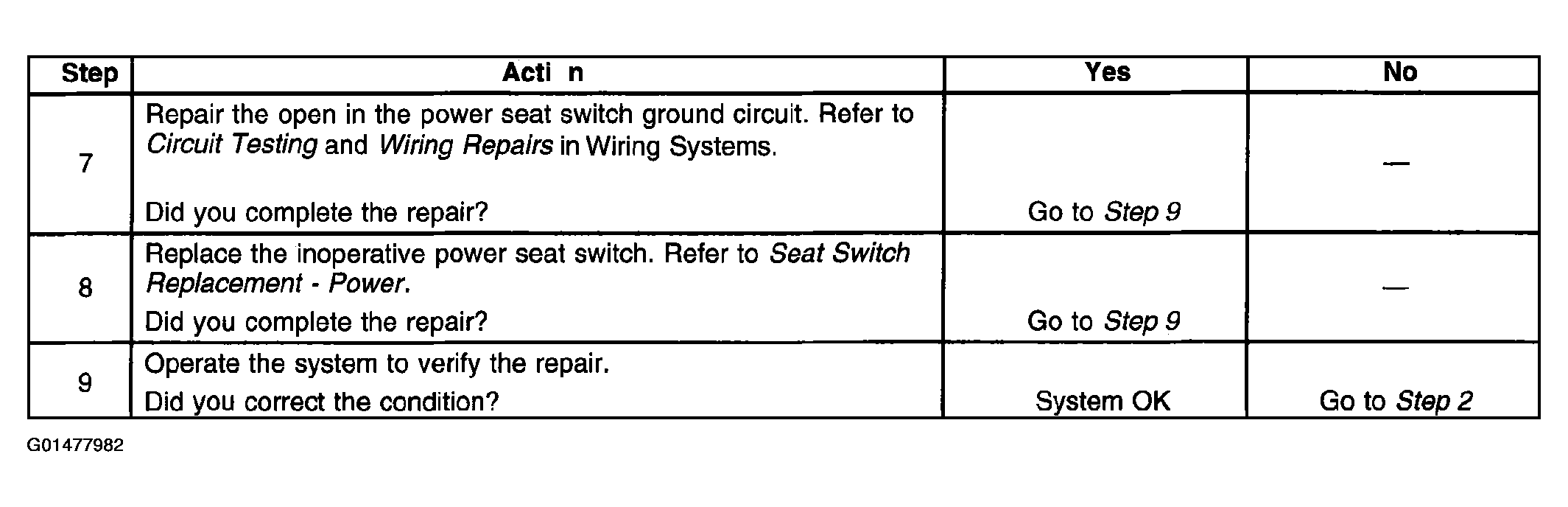

Fig 2: Power Seat Inoperative (2 Of 2)

G01477982

Courtesy of GENERAL MOTORS CORP.

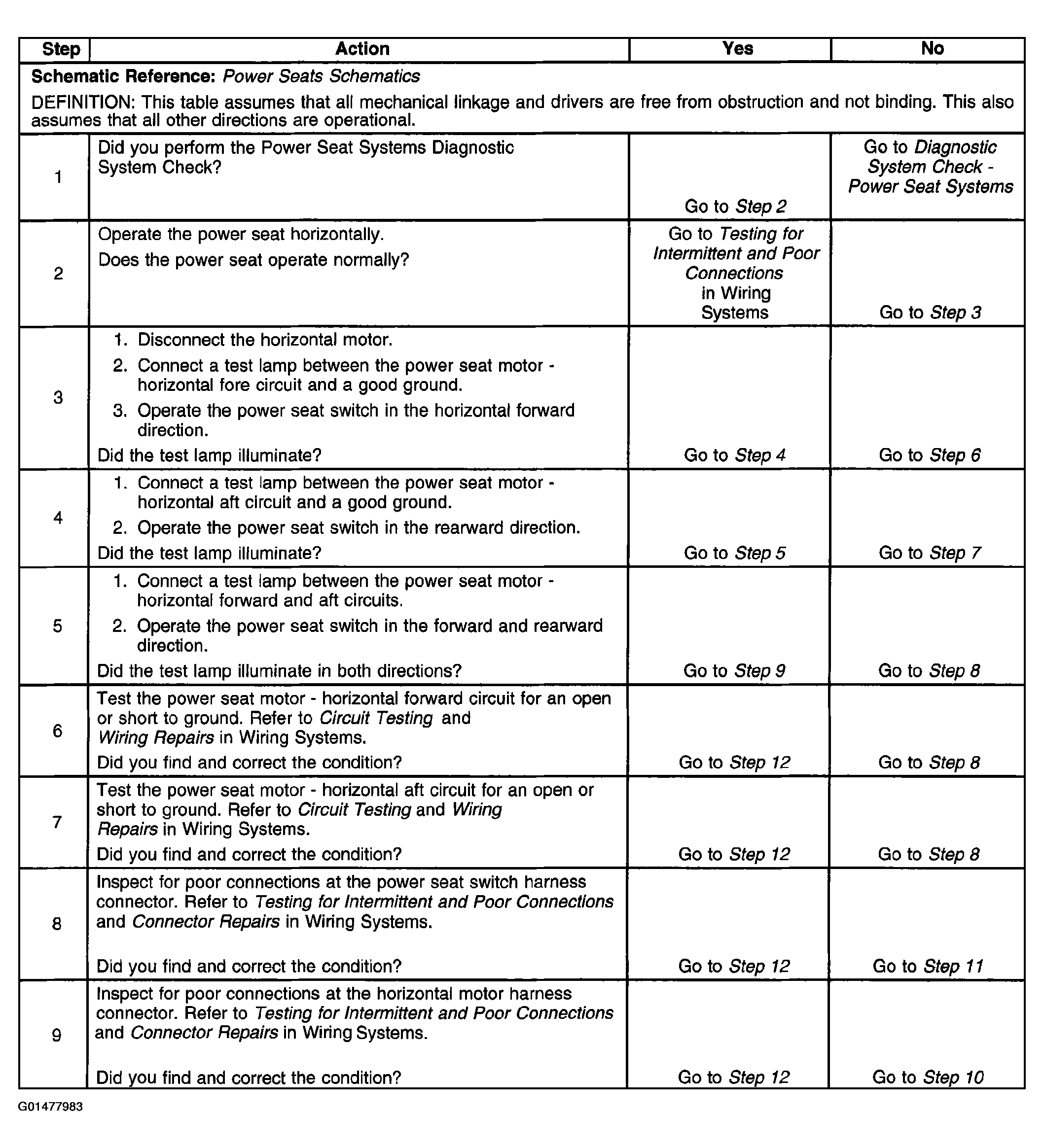

Fig 3: Power Seat Does Not Move Forward/Rearward (1 Of 2)

G01477983

Courtesy of GENERAL MOTORS CORP.

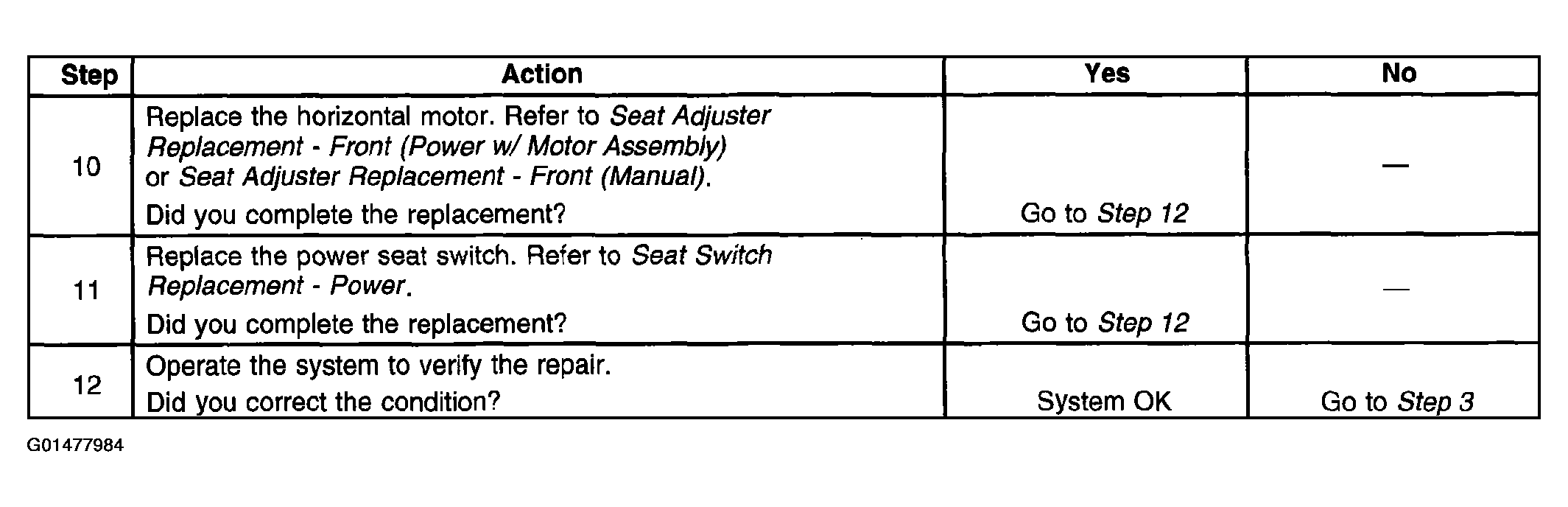

Fig 4: Power Seat Does Not Move Forward/Rearward (2 Of 2)

G01477984

Courtesy of GENERAL MOTORS CORP.

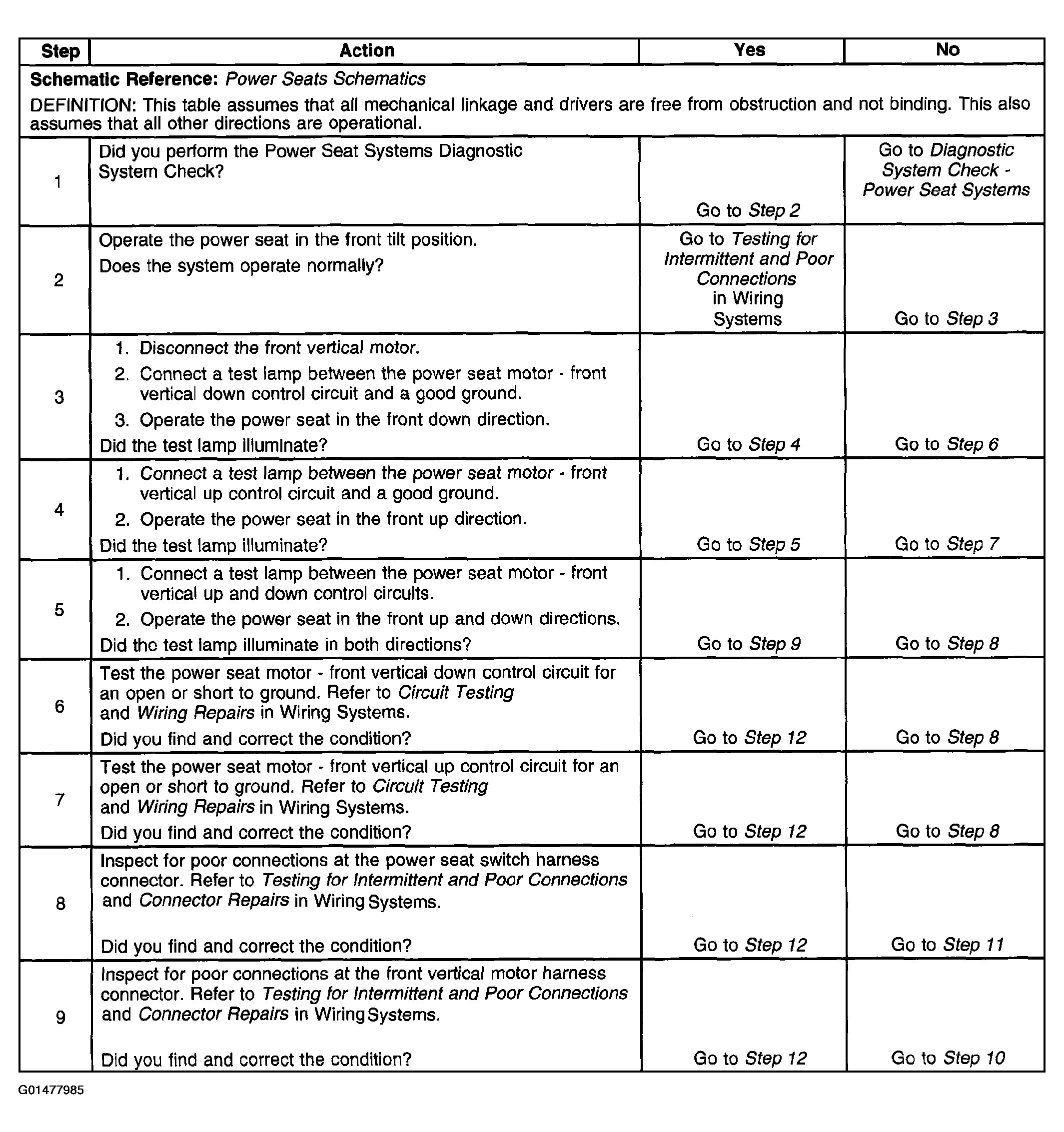

Fig 5: Power Seat Does Not Tilt Forward (1 Of 2)

G01477985

Courtesy of GENERAL MOTORS CORP.

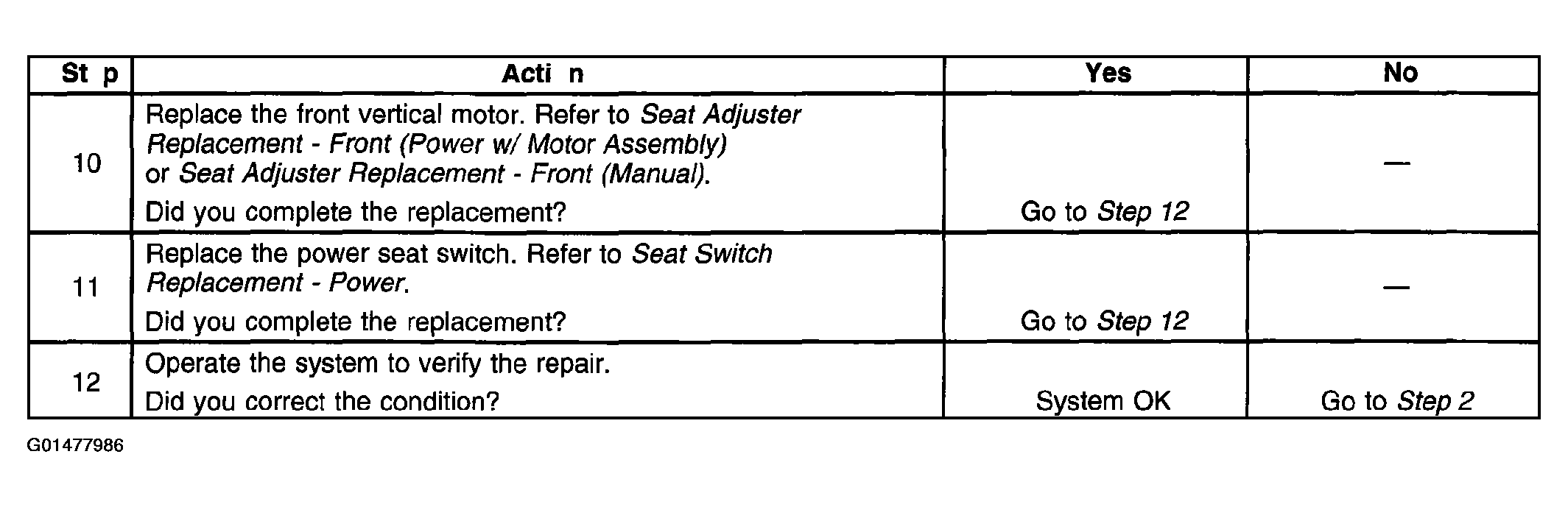

Fig 6: Power Seat Does Not Tilt Forward (2 Of 2)

G01477986

Courtesy of GENERAL MOTORS CORP.

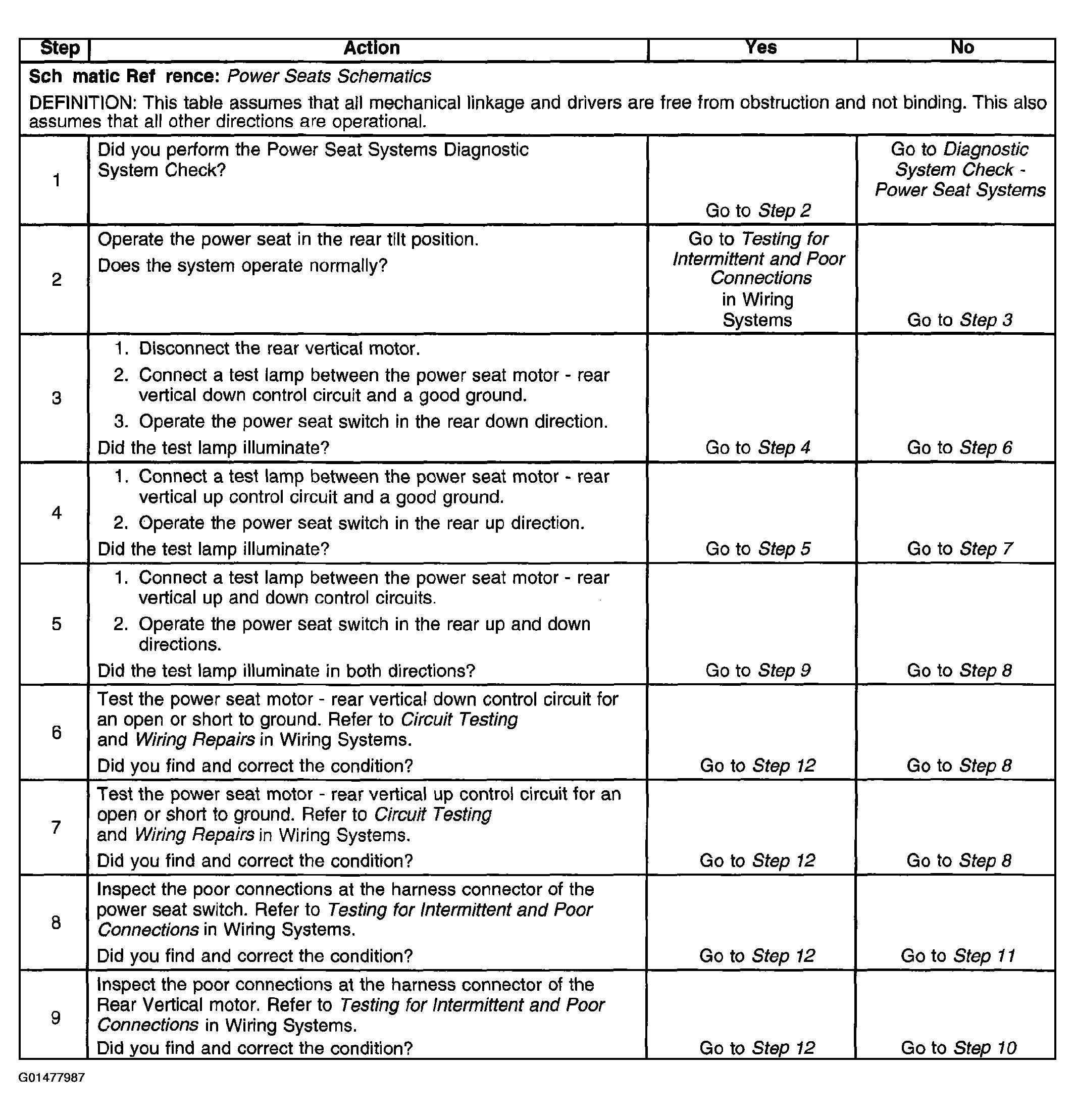

Fig 7: Power Seat Does Not Tilt Rearward (1 Of 2)

G01477987

Courtesy of GENERAL MOTORS CORP.

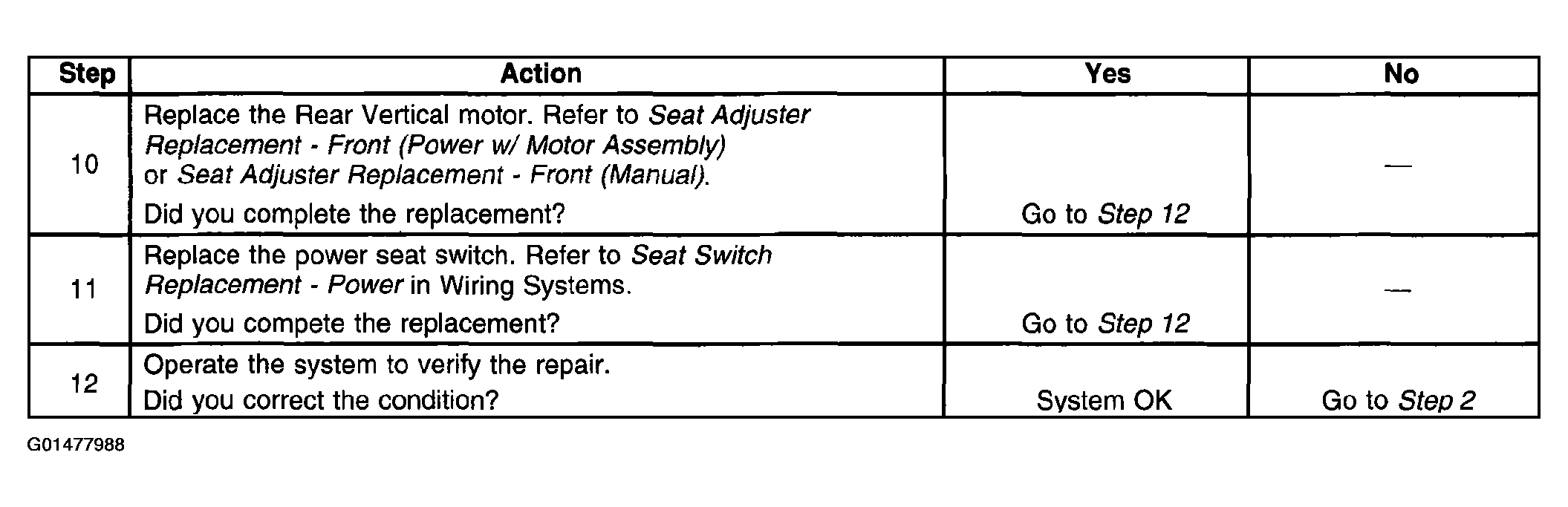

Fig 8: Power Seat Does Not Tilt Rearward (2 Of 2)

G01477988

Courtesy of GENERAL MOTORS CORP.

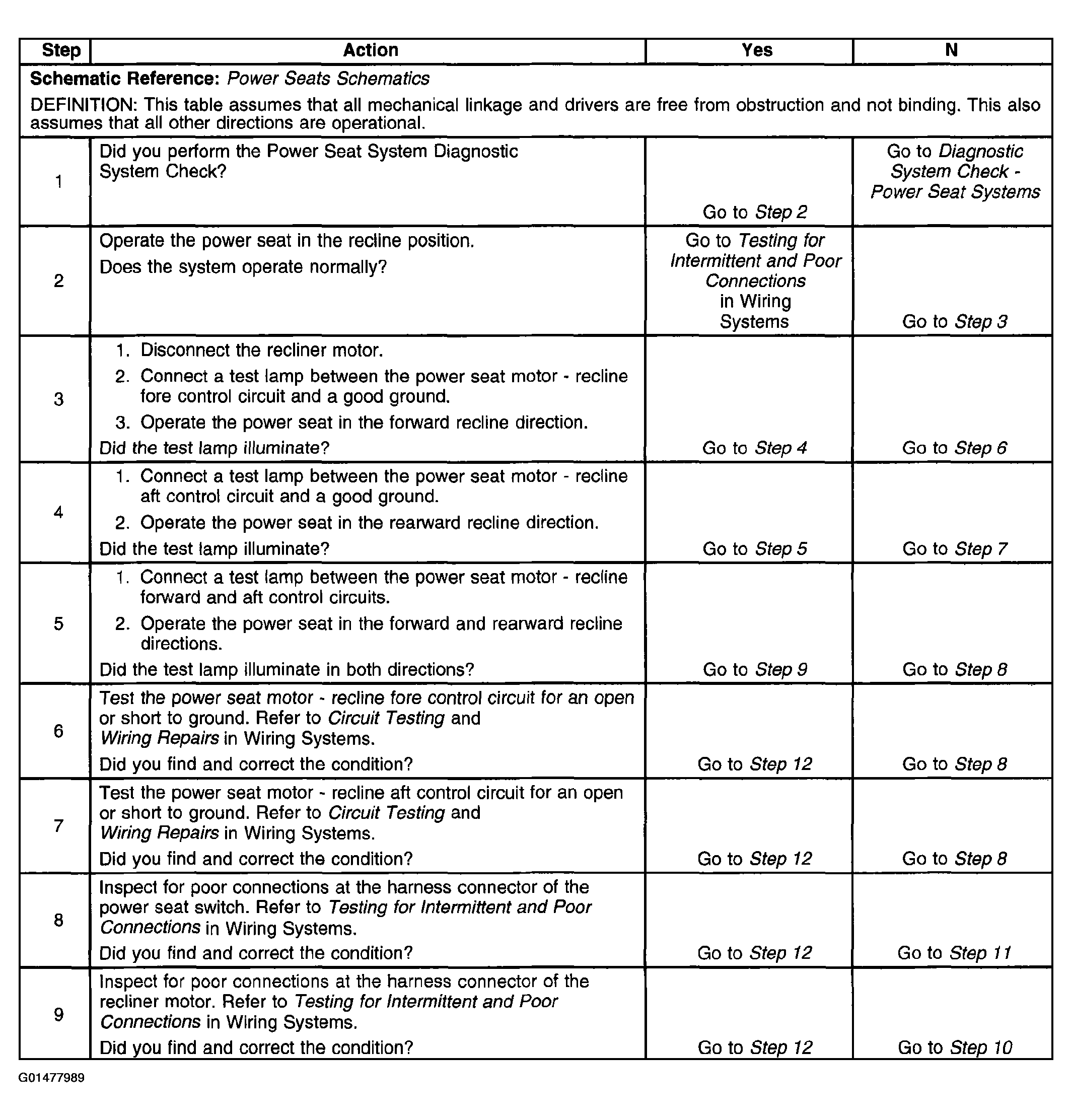

Fig 9: Power Seat Does Not Recline (1 Of 2)

G01477989

Courtesy of GENERAL MOTORS CORP.

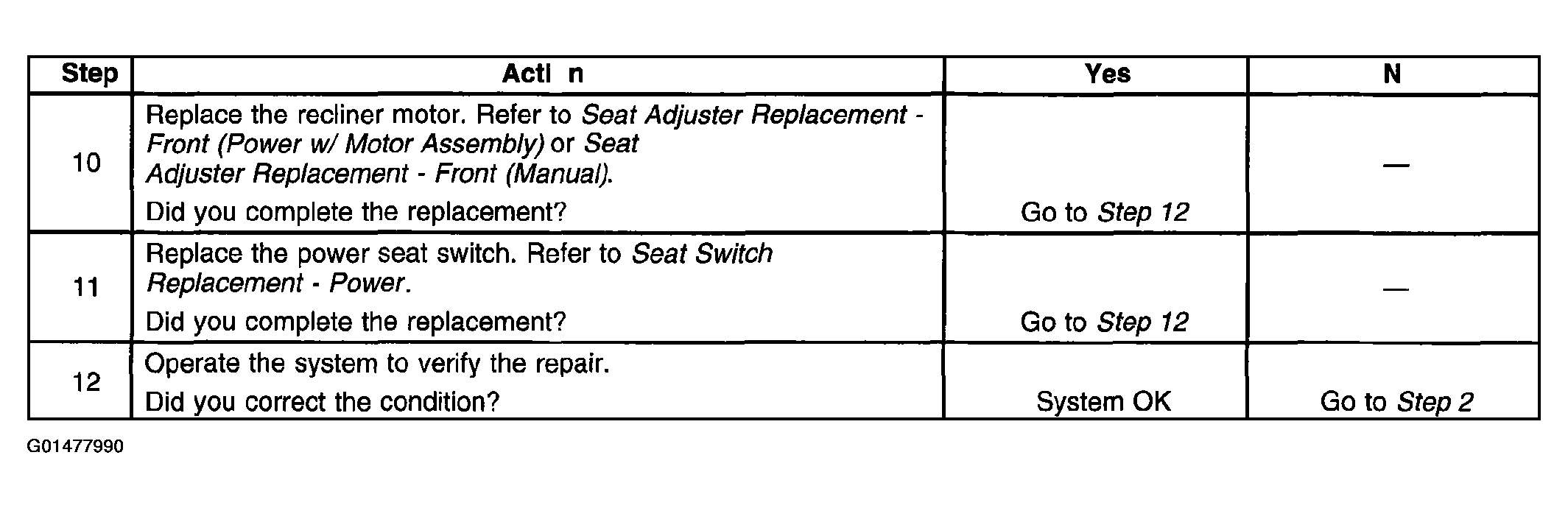

Fig 10: Power Seat Does Not Recline (2 Of 2)

G01477990

Courtesy of GENERAL MOTORS CORP.

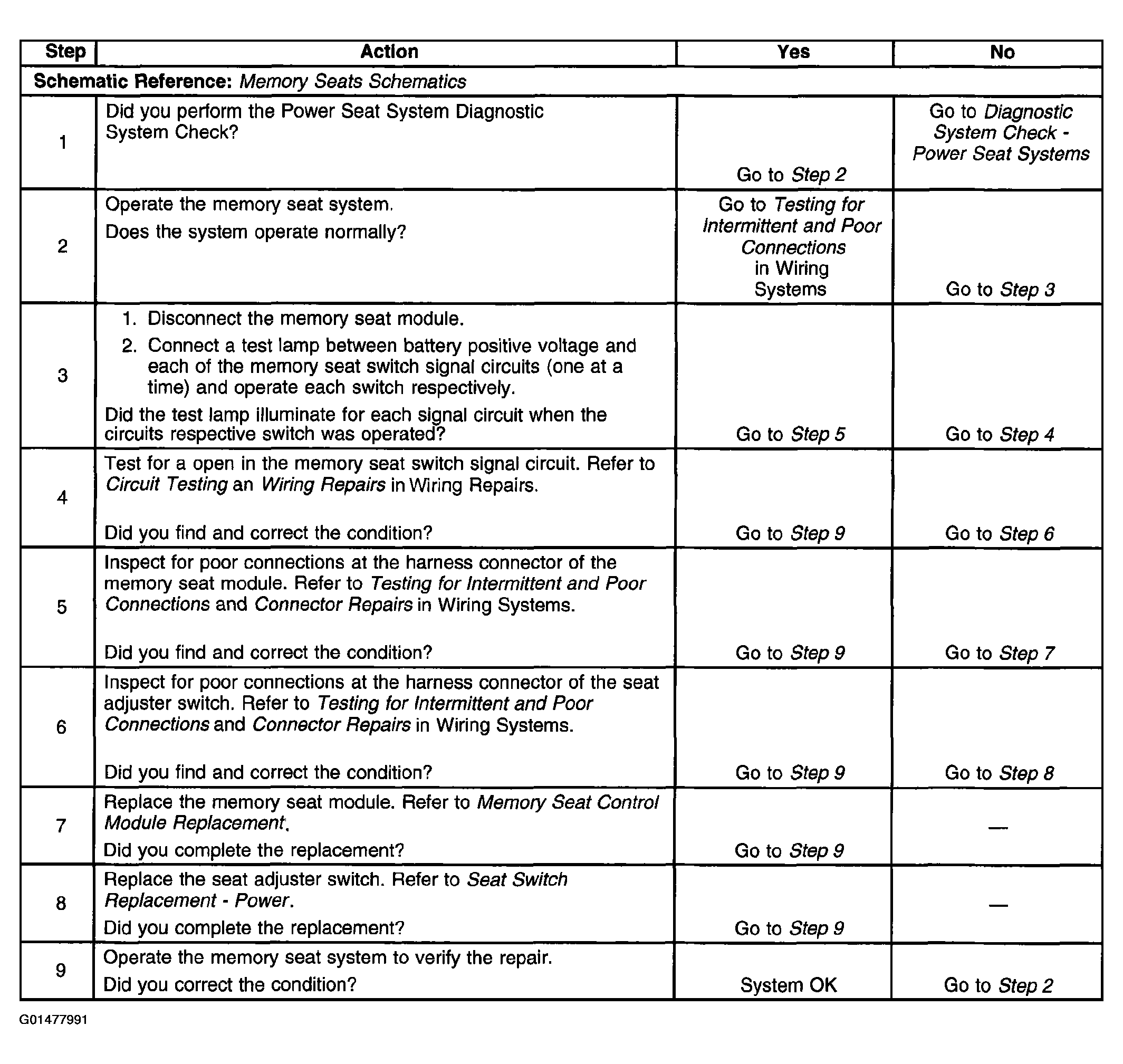

Fig 11: Memory Seat Feature Inoperative

G01477991

Courtesy of GENERAL MOTORS CORP.

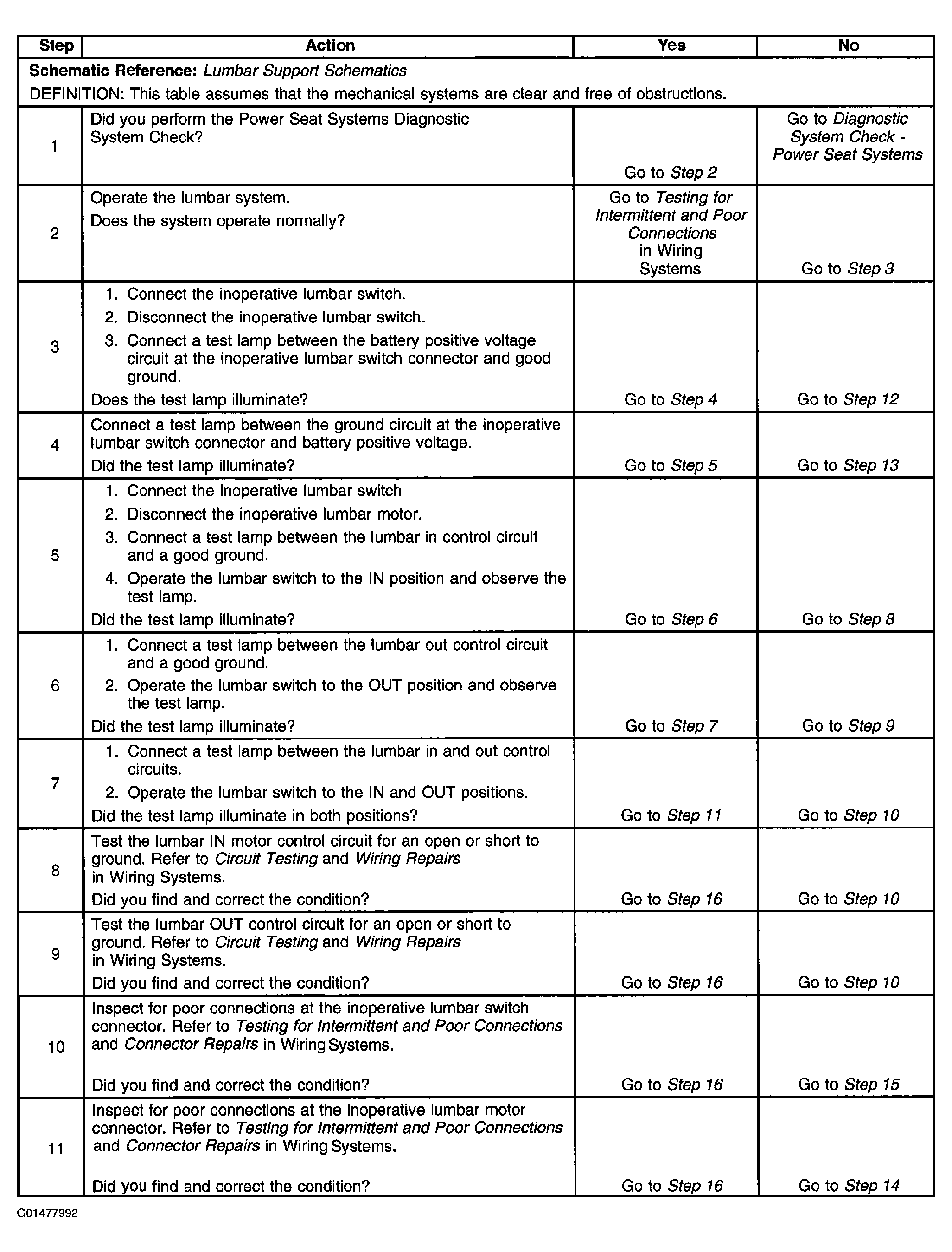

Fig 12: Lumbar Support Inoperative (1 Of 2)

G01477992

Courtesy of GENERAL MOTORS CORP.

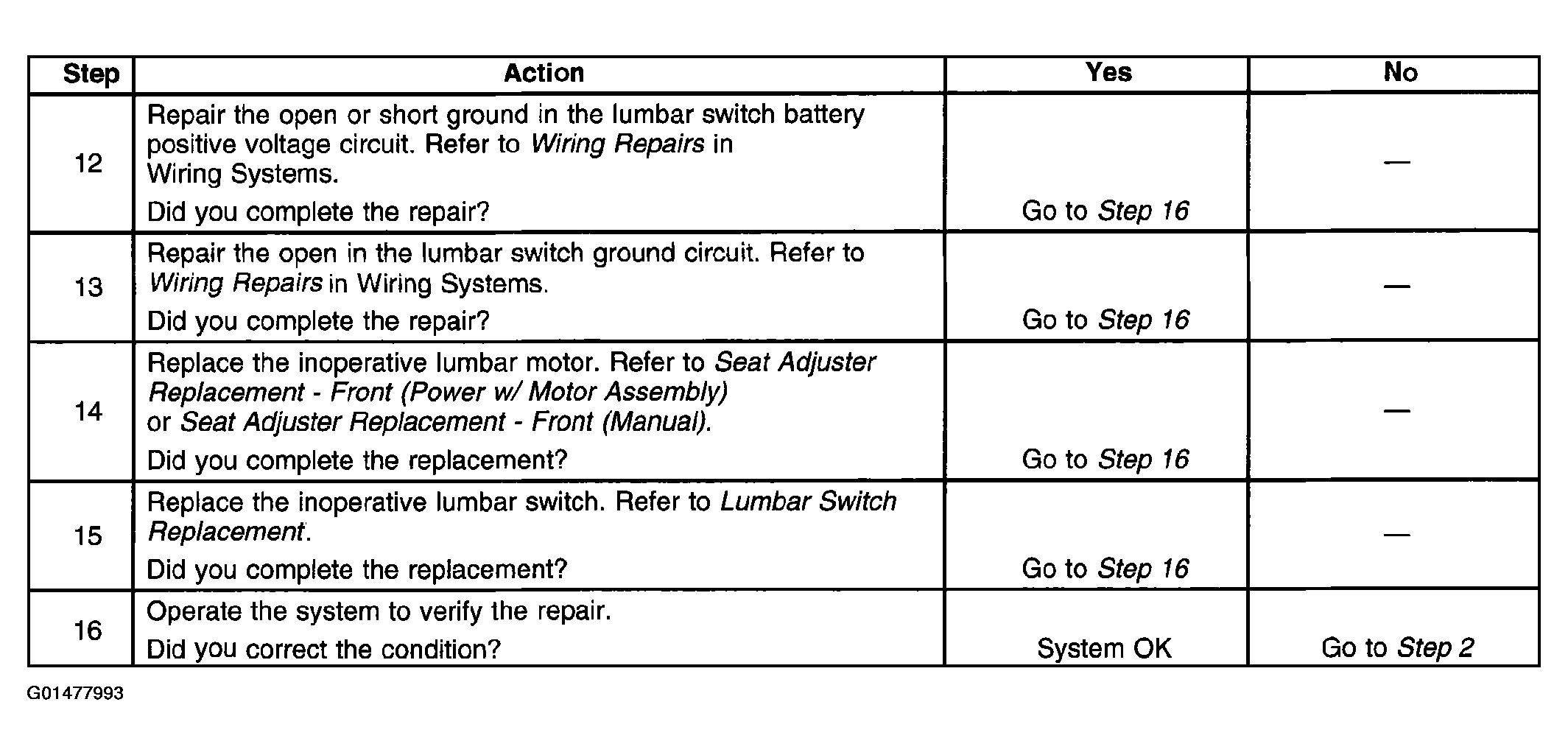

Fig 13: Lumbar Support Inoperative (2 Of 2)

G01477993

Courtesy of GENERAL MOTORS CORP.

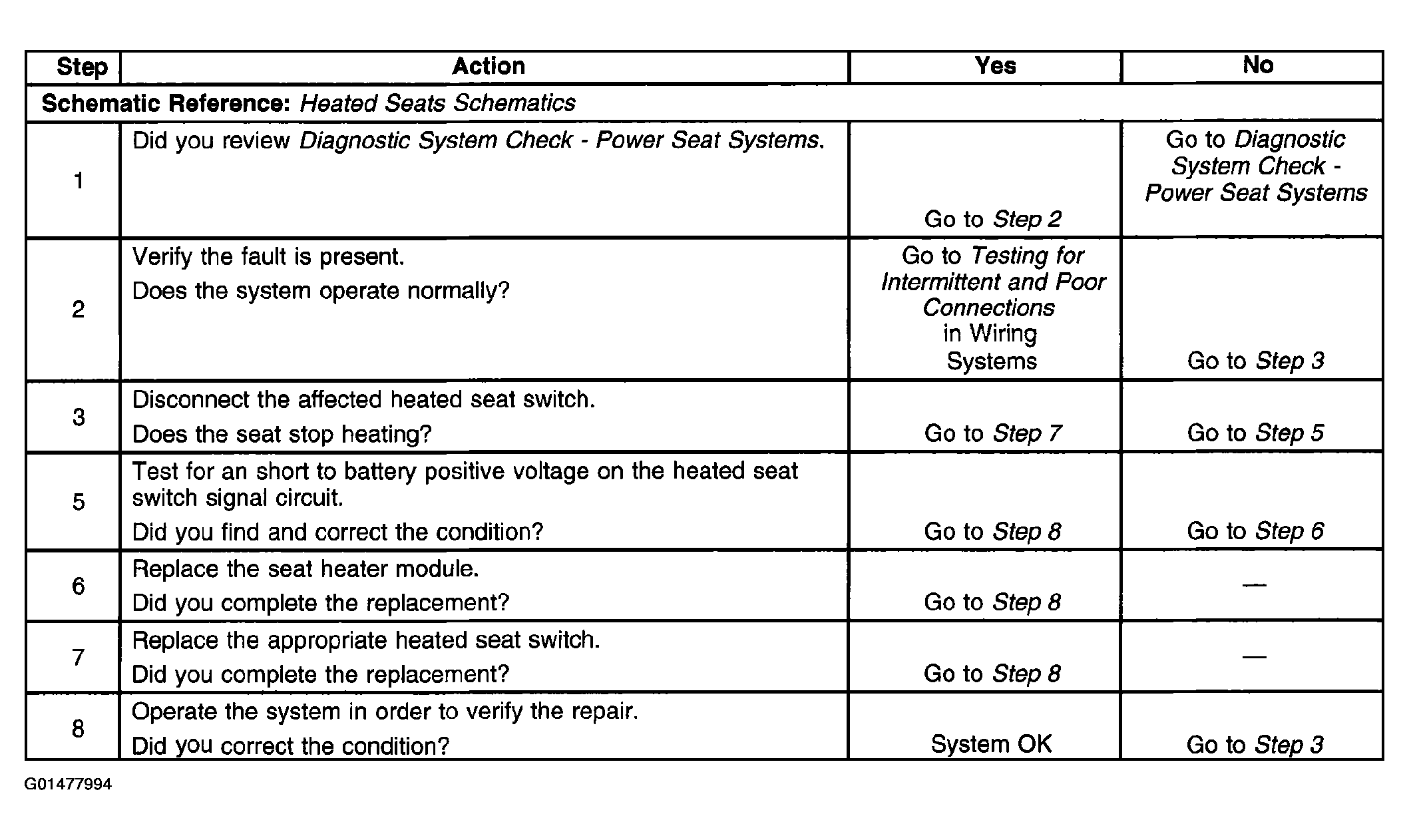

Fig 14: Heated Seat Always On

G01477994

Courtesy of GENERAL MOTORS CORP.

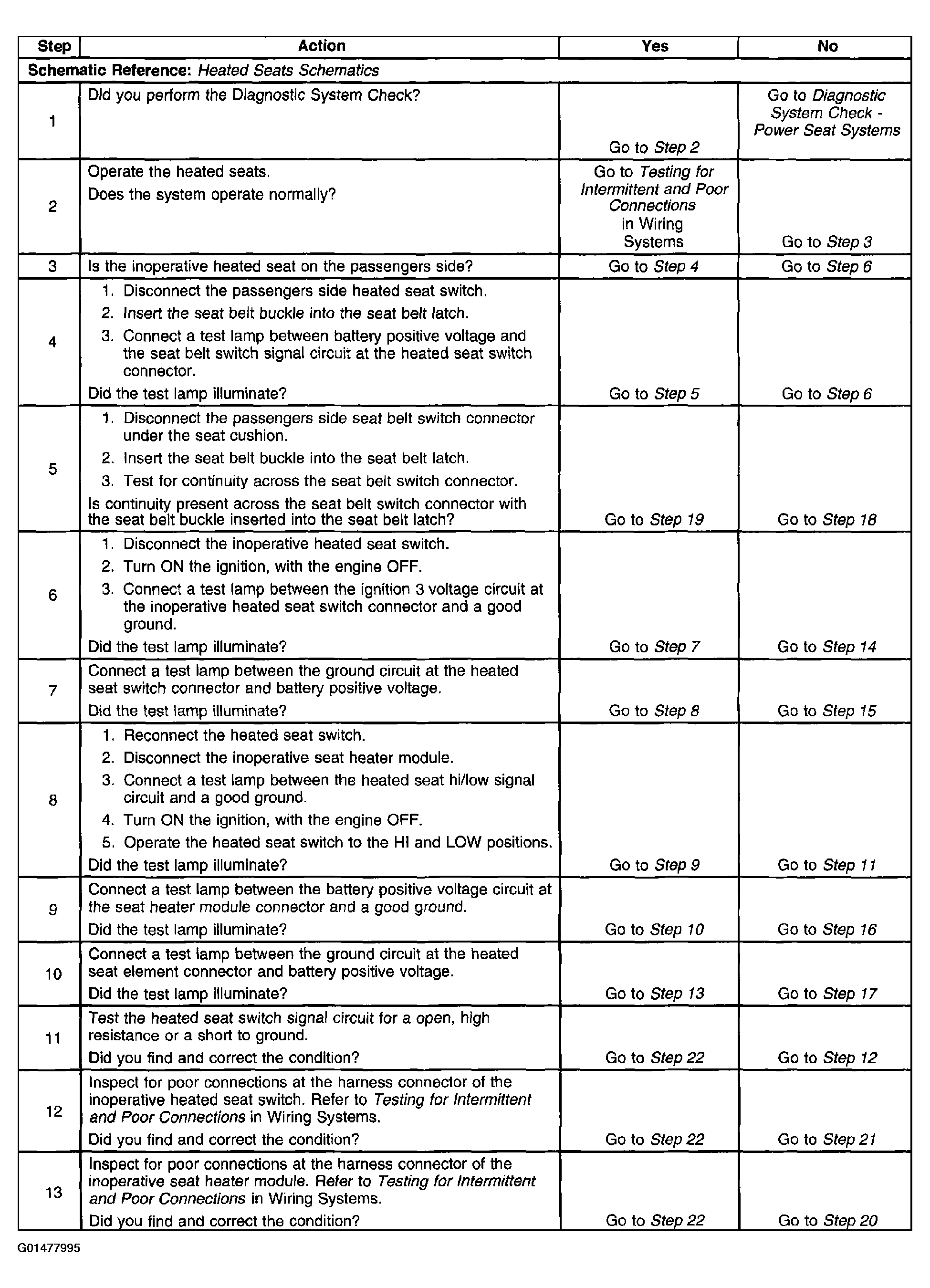

Fig 15: Heated Seat Inoperative (1 Of 2)

G01477995

Courtesy of GENERAL MOTORS CORP.

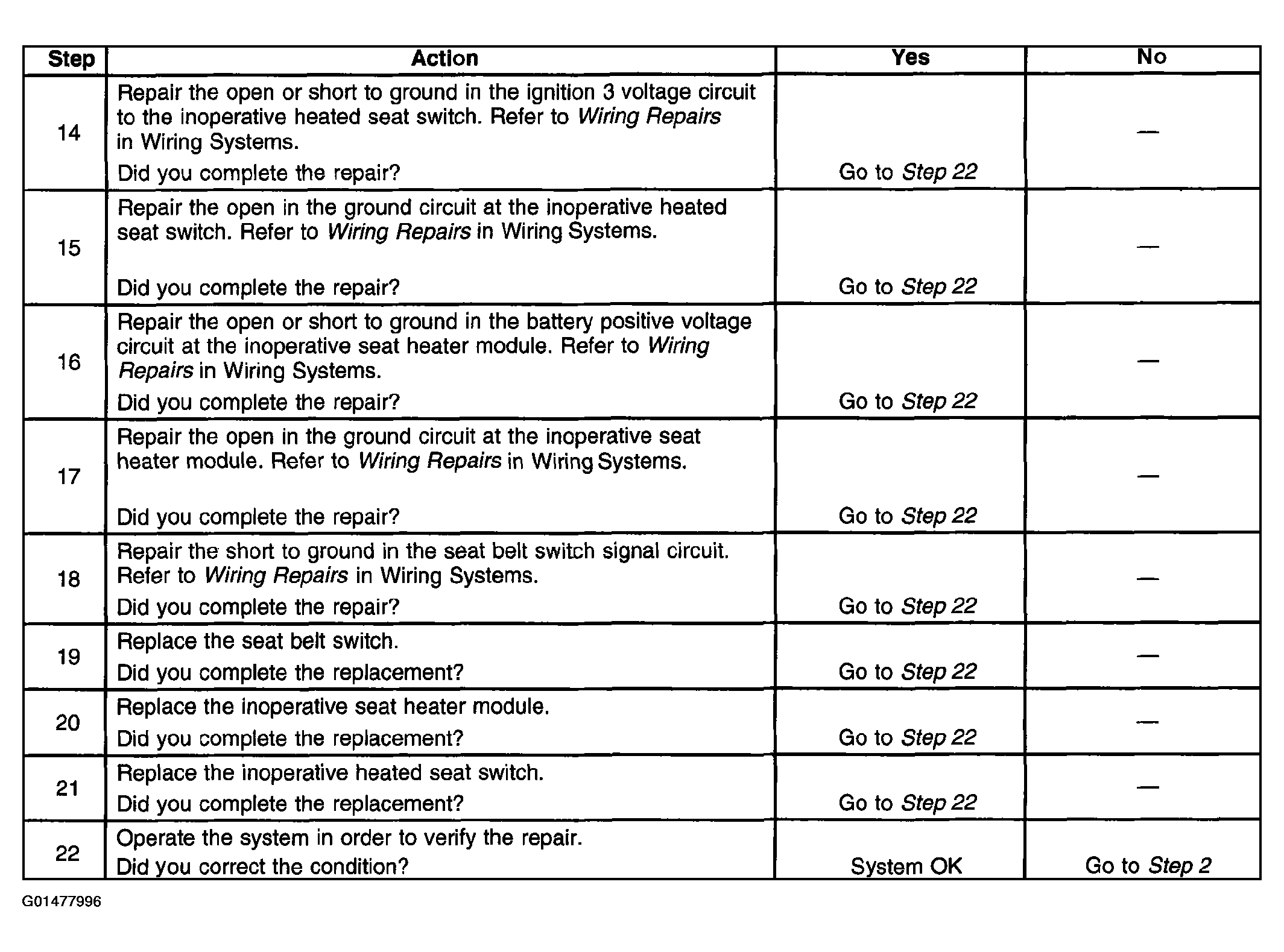

Fig 16: Heated Seat Inoperative (2 Of 2)

G01477996

Courtesy of GENERAL MOTORS CORP.

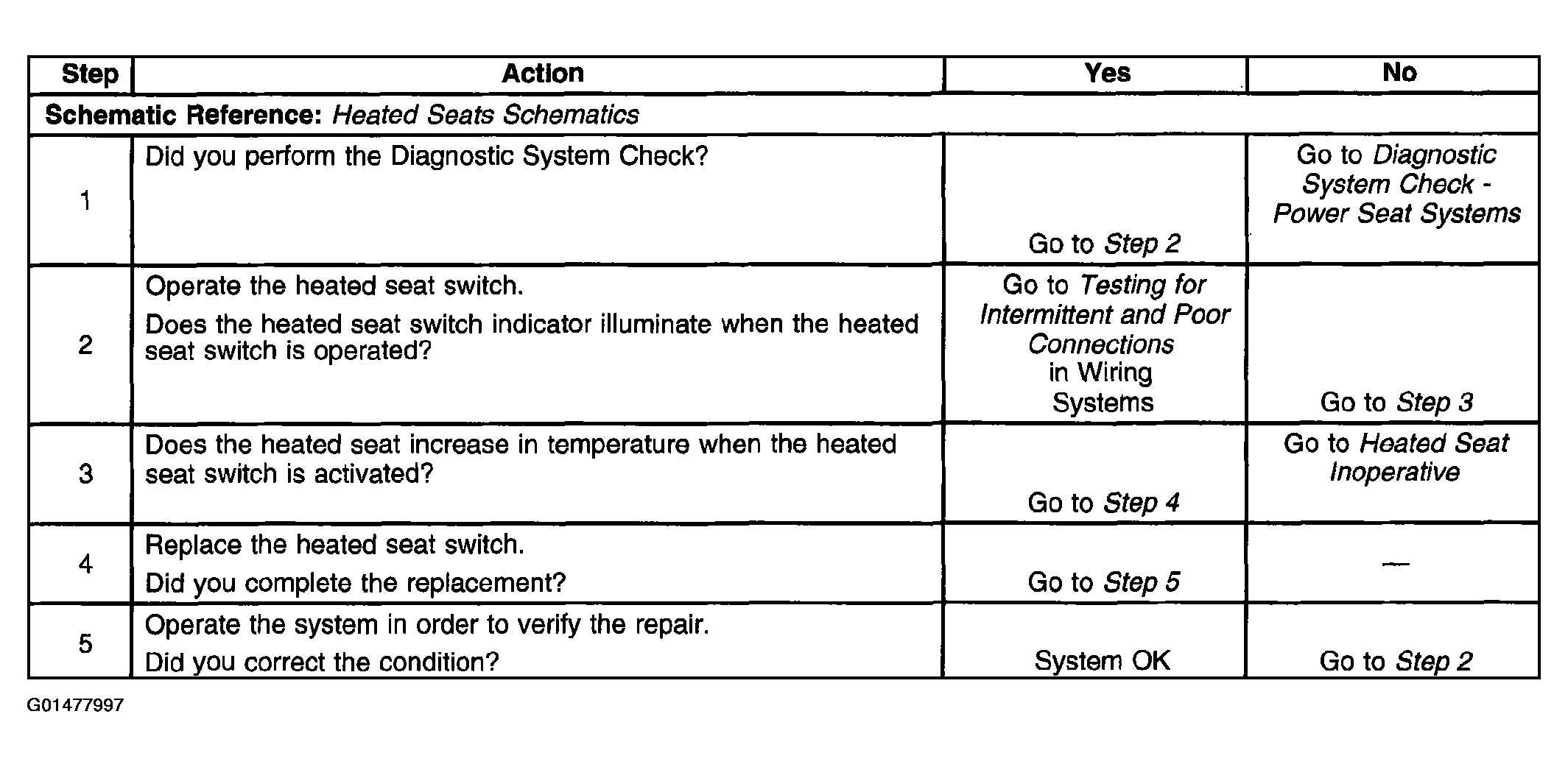

Fig 17: Heated Seat Switch Mode Indicator Malfunction

G01477997

Courtesy of GENERAL MOTORS CORP.

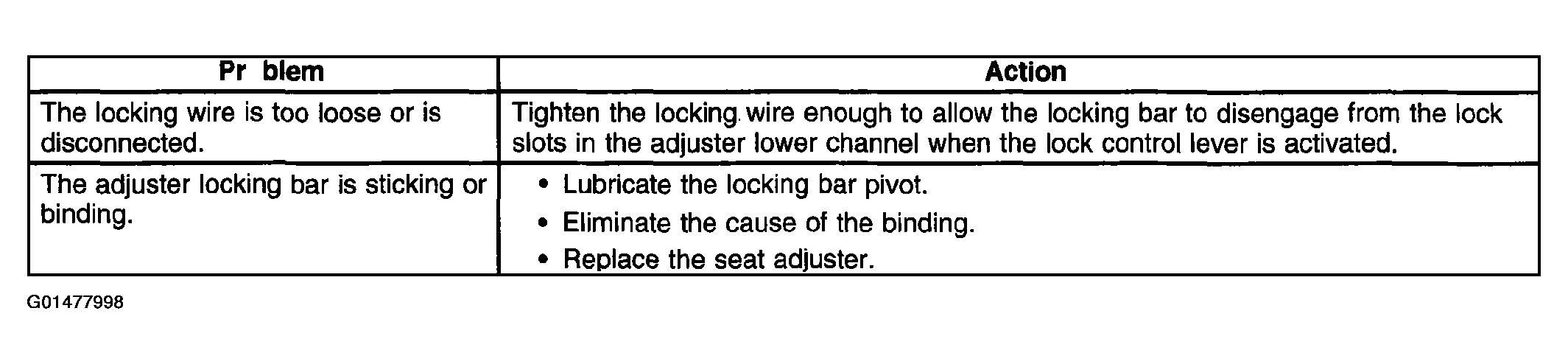

Fig 18: Seat - Manual Adjuster Does Not Unlock

G01477998

Courtesy of GENERAL MOTORS CORP.

Fig 19: Seat - Manual Adjuster Does Not Lock

G01477999

Courtesy of GENERAL MOTORS CORP.

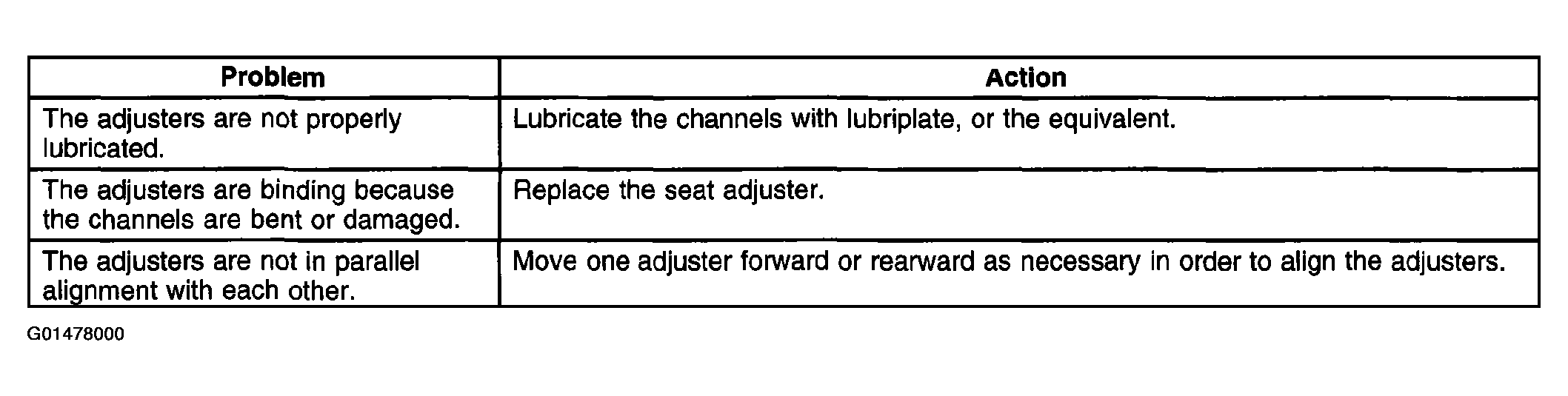

Fig 20: Seat - Hard To Move Forward & Rearward

G01478000

Courtesy of GENERAL MOTORS CORP.
