Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: To prevent personal injury, gloves should be worn when removing broken glass.
  1. Remove the door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE REAR DOOR (UTILITY)  or TRIM PANEL REPLACEMENT - SIDE REAR DOOR (EXTENDED CAB P/U ONLY) .
  2. Remove the water deflector. Refer to WATER DEFLECTOR REPLACEMENT - DOOR .
  3. Remove the stationary window assembly. Refer to REAR WINDOW REPLACEMENT in Stationary Windows.
  4. Remove the weatherstrip. Refer to WEATHERSTRIP REPLACEMENT - REAR DOOR WINDOW .
  5. Remove the rear window run channel. Refer to WINDOW RUN CHANNEL REPLACEMENT .
  6. Push the window rearward.
  7. Rotate the window in order to release the window sash channel from the regulator rollers.
  8. Remove the window from the regulator.
  9. Remove the window from the door.

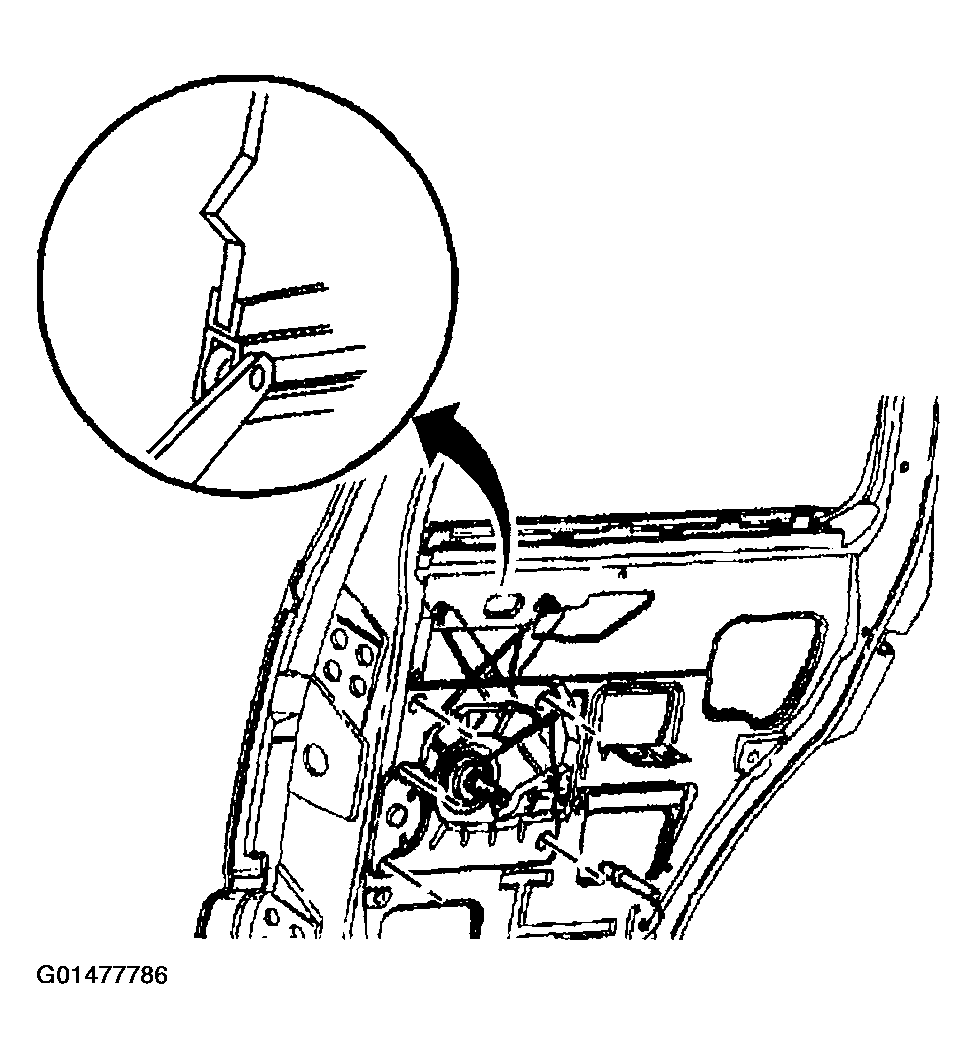

    Fig 1: Removing Rear Door Window From Door
    G01477786Courtesy of GENERAL MOTORS CORP.
