Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

Important:  The rear door power window motor and regulator replacement parts are sold as an assembly. Do not attempt to separate the motor from the regulator before verifying that separate replacement parts are available.

  1. Remove the window. Refer to WINDOW REPLACEMENT - REAR DOOR .
  2. Disconnect the power window motor electrical connector, if equipped.
  3. Remove the electrical harness retainers, if equipped.
  4. Drill out the rivets that secure the window regulator to the door.
  5. Remove the window regulator and the motor assembly (power windows only) from the door.

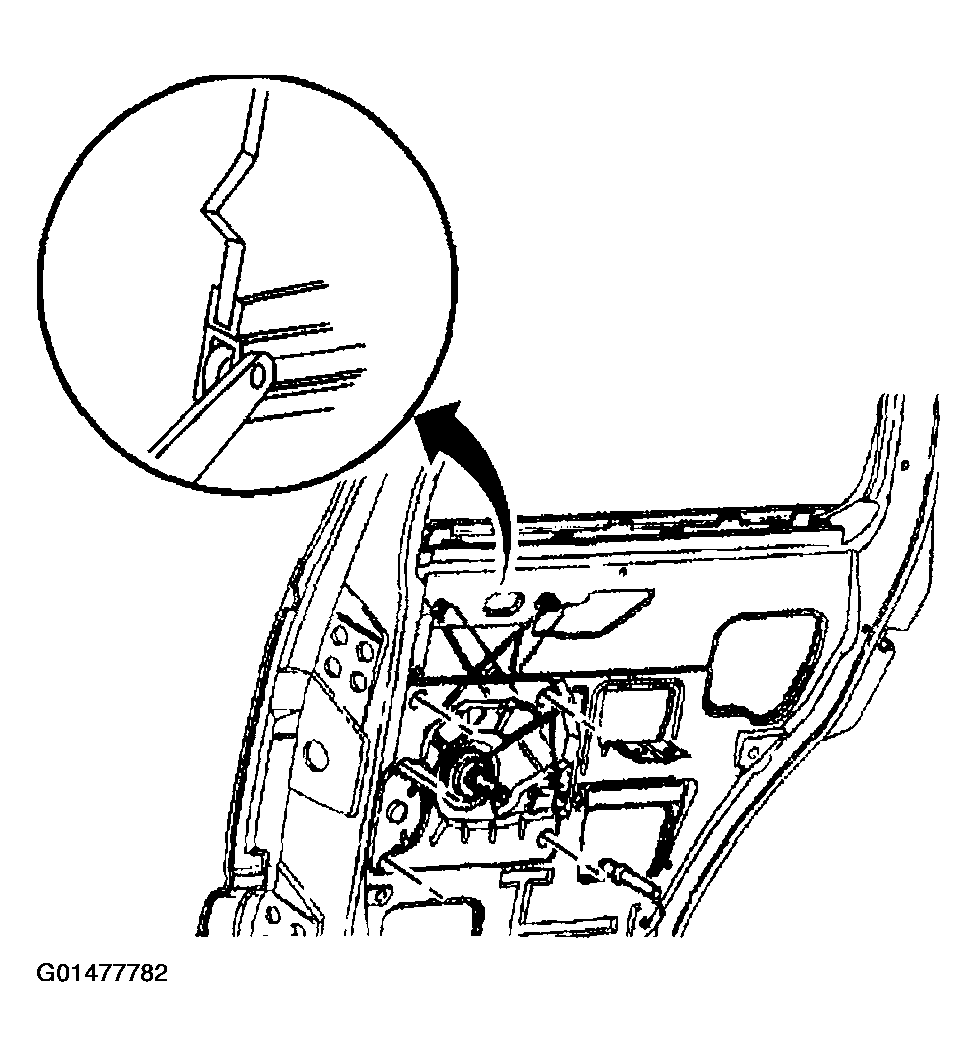

    Fig 1: Removing Window Regulator & Motor Assembly (Power Windows Only) From Door
    G01477782Courtesy of GENERAL MOTORS CORP.
