Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the window. Refer to WINDOW REPLACEMENT - FRONT DOOR .
  2. Disconnect the power window motor electrical connector, if equipped.
  3. Remove the electrical harness retainers, if equipped.
  4. Drill out the rivets that secure the window regulator to the door.
  5. Remove the window regulator from the door.
  6. Remove the power window motor, if equipped. Refer to MOTOR REPLACEMENT - POWER WINDOW .

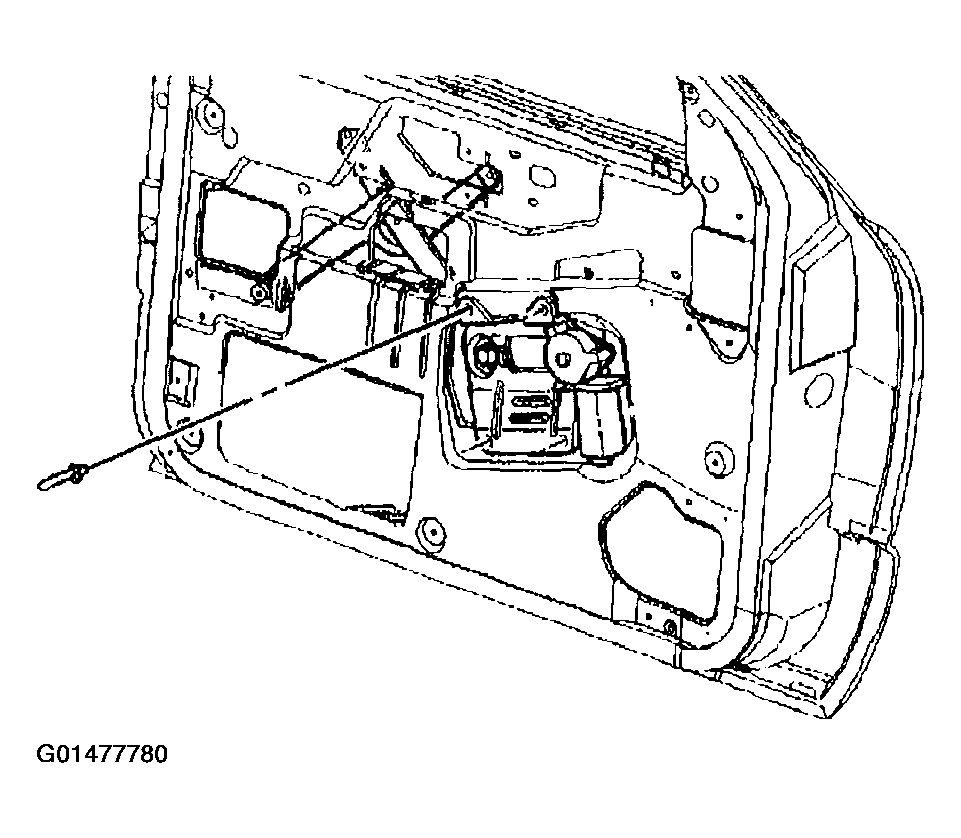

    Fig 1: Removing Window Regulator From Door
    G01477780Courtesy of GENERAL MOTORS CORP.
