Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the window weatherstrip. Refer to WEATHERSTRIP REPLACEMENT - REAR DOOR WINDOW .
  2. Remove the door handle bezel. Refer to HANDLE BEZEL REPLACEMENT - INSIDE .
  3. Remove the window regulator handle, if equipped. Refer to WINDOW REGULATOR HANDLE REPLACEMENT - DOOR .
  4. Remove the power window switch, if equipped. Refer to POWER WINDOW SWITCH REPLACEMENT .
  5. Remove the trim panel screws from the armrest. Carefully pry off the cover using a flat-bladed tool.
  6. Use the J 38778  in order to release the door trim panel retainers.
  7. Remove the door trim panel from the door.

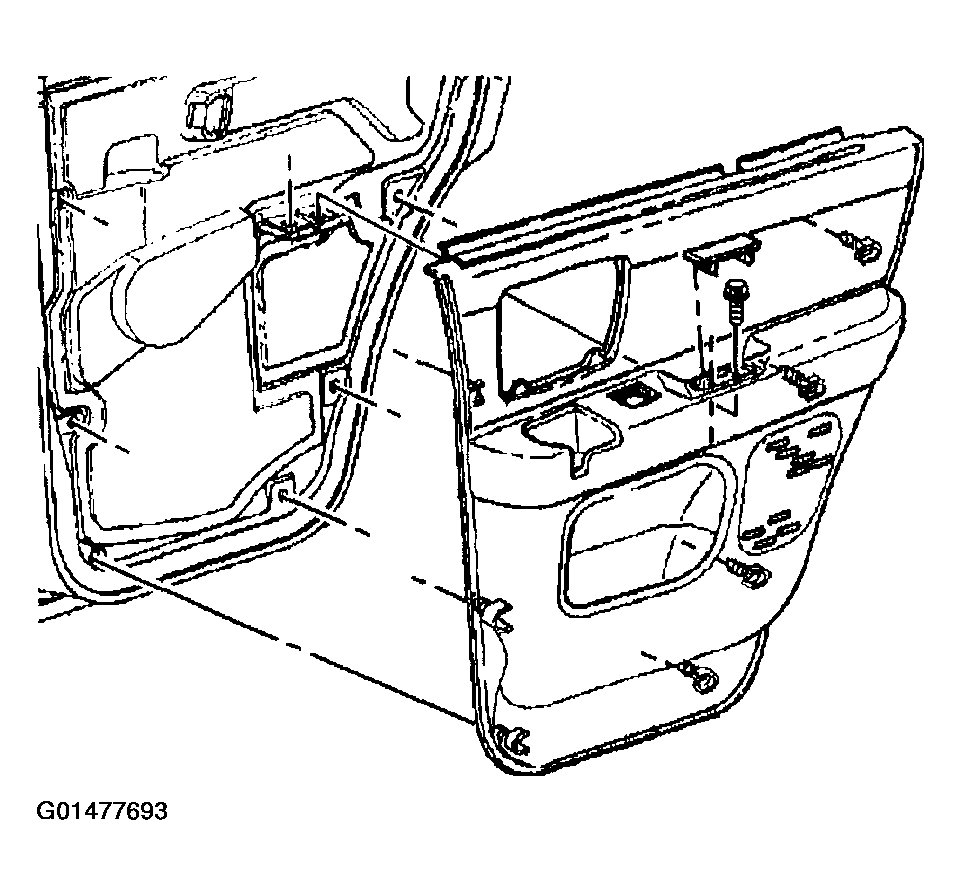

    Fig 1: Removing Rear Side Door Trim Panel (Utility) From Door
    G01477693Courtesy of GENERAL MOTORS CORP.
