Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the inside door handle bezel. Refer to HANDLE BEZEL REPLACEMENT - INSIDE .
  2. Remove the window regulator handle, if equipped. Refer to WINDOW REGULATOR HANDLE REPLACEMENT - DOOR .
  3. Remove the power accessory switch mounting panel, if equipped with power accessories. Refer to POWER ACCESSORY SWITCH PANEL REPLACEMENT .
  4. Remove the trim panel armrest screws.
  5. Use the J 38778  in order to release the door trim panel retainers.
  6. Remove the door trim panel from the door.

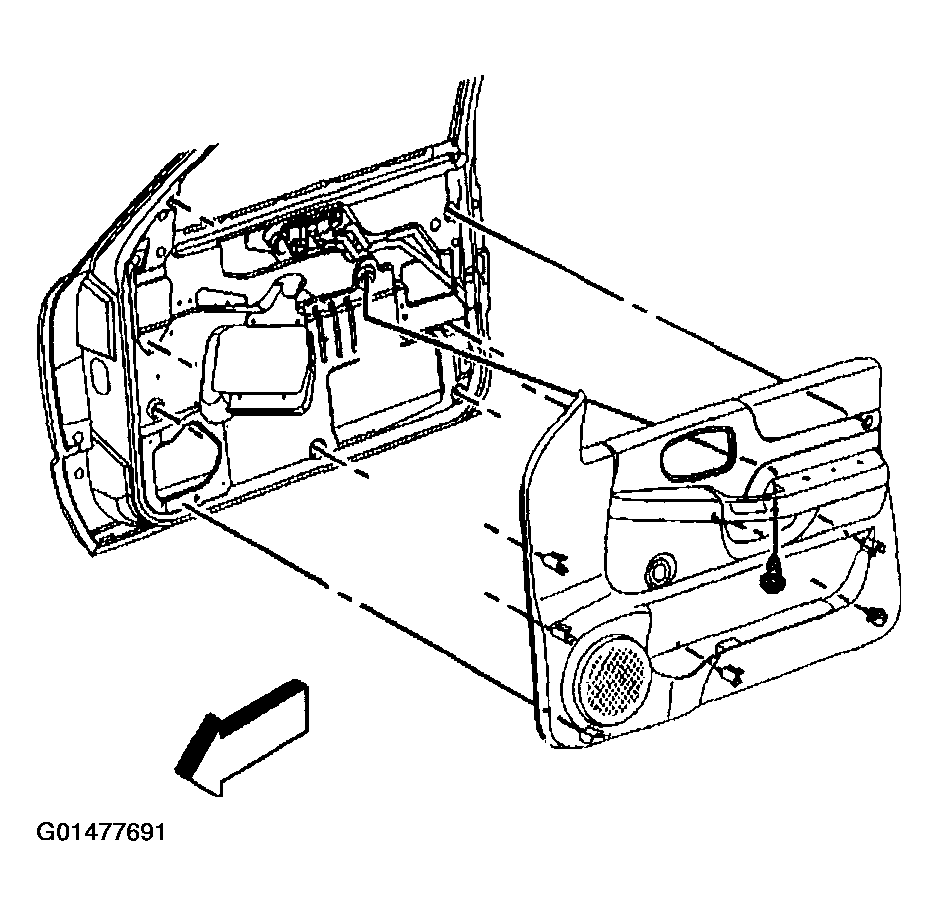

    Fig 1: Removing Front Side Door Trim Panel From Door
    G01477691Courtesy of GENERAL MOTORS CORP.
