Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear side door upper latch striker cover, use a flat-bladed tool to release the retainers from the roof panel.
    Fig 1: Rear Side Door Upper Latch Striker Cover
    G01477769Courtesy of GENERAL MOTORS CORP.
  2. Remove the bolts retaining the striker to roof panel.
  3. Remove the striker and shim(s) from the roof panel.

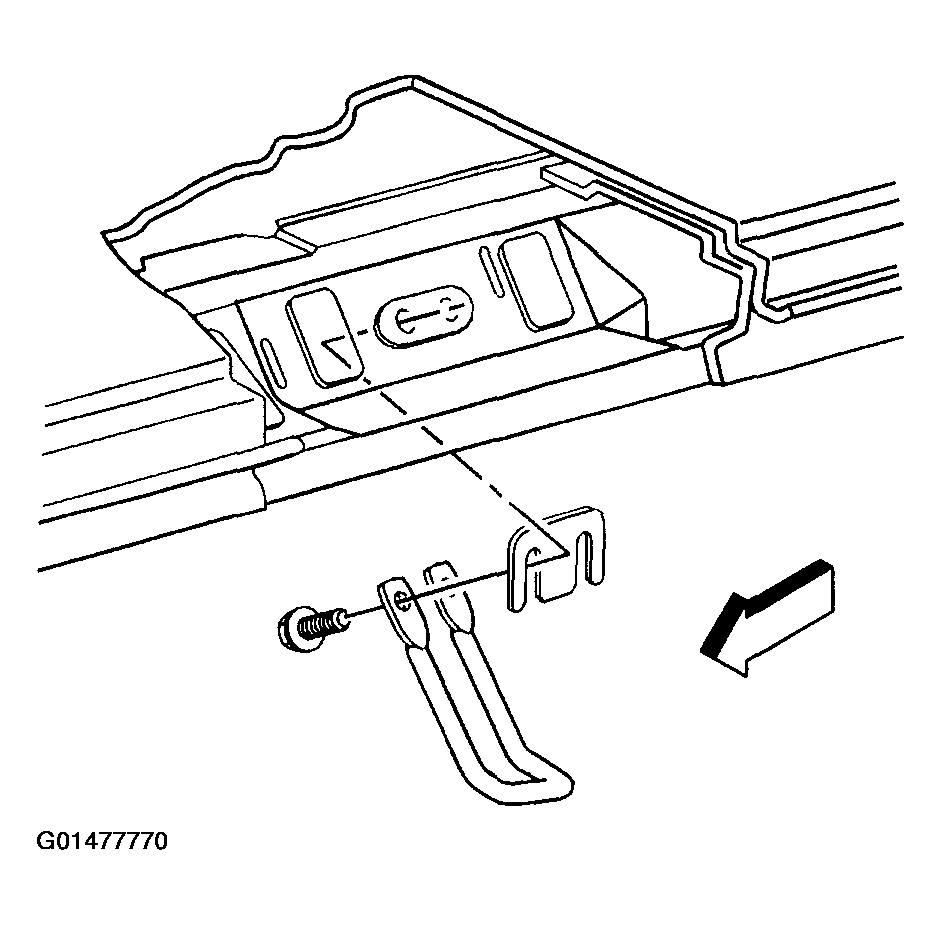

    Fig 2: Removing Striker & Shim(s) From Roof Panel
    G01477770Courtesy of GENERAL MOTORS CORP.
