Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the striker and shim(s) to the roof panel.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the bolts retaining the striker to the roof panel.
  3. Adjust the striker using the procedure below
    • Tighten the bolts to a sung fit.
    • Close the door to self align striker.
    • Check for door fit.
    • Add or remove shims as required (maximum of 3).

      Tighten

      Tighten the striker bolts to 10 N.m (89 Ib. in).

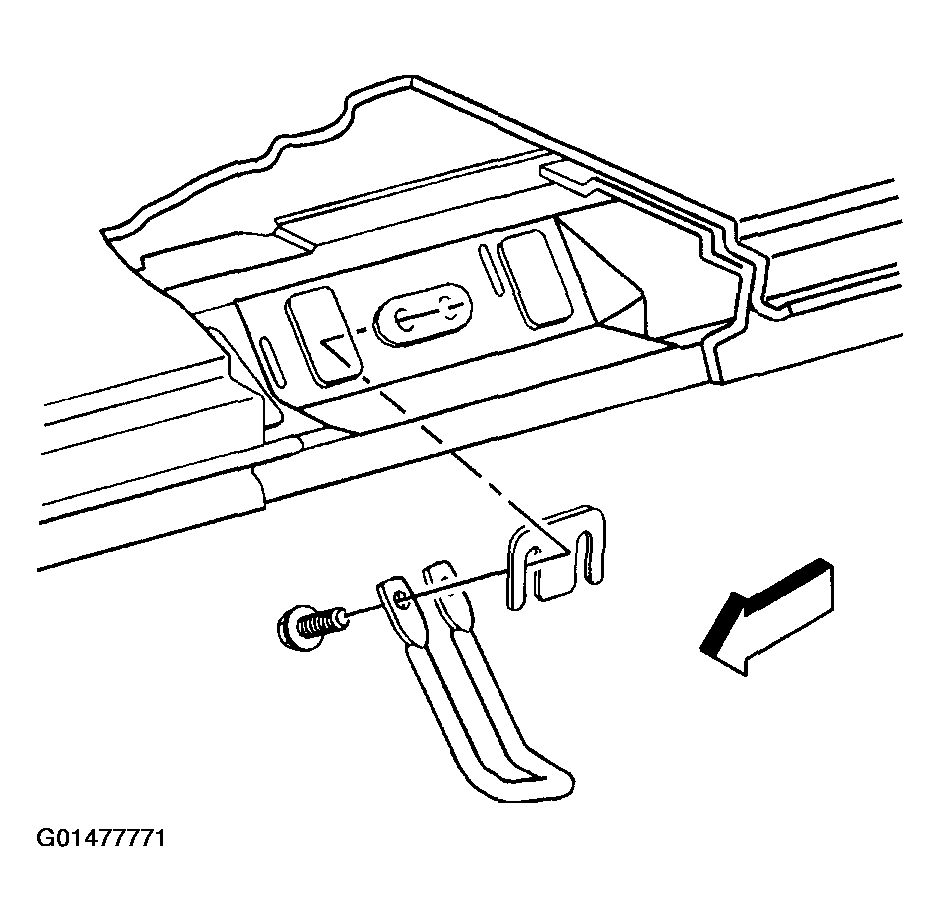

    Fig 1: Installing Striker & Shim(s) To Roof Panel
    G01477771Courtesy of GENERAL MOTORS CORP.
  4. Install the upper latch striker cover.
    Fig 2: Upper Latch Striker Cover
    G01477772Courtesy of GENERAL MOTORS CORP.
