Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the side access door
  2. Remove the bolts retaining the lower door striker.
  3. Remove the lower door striker.

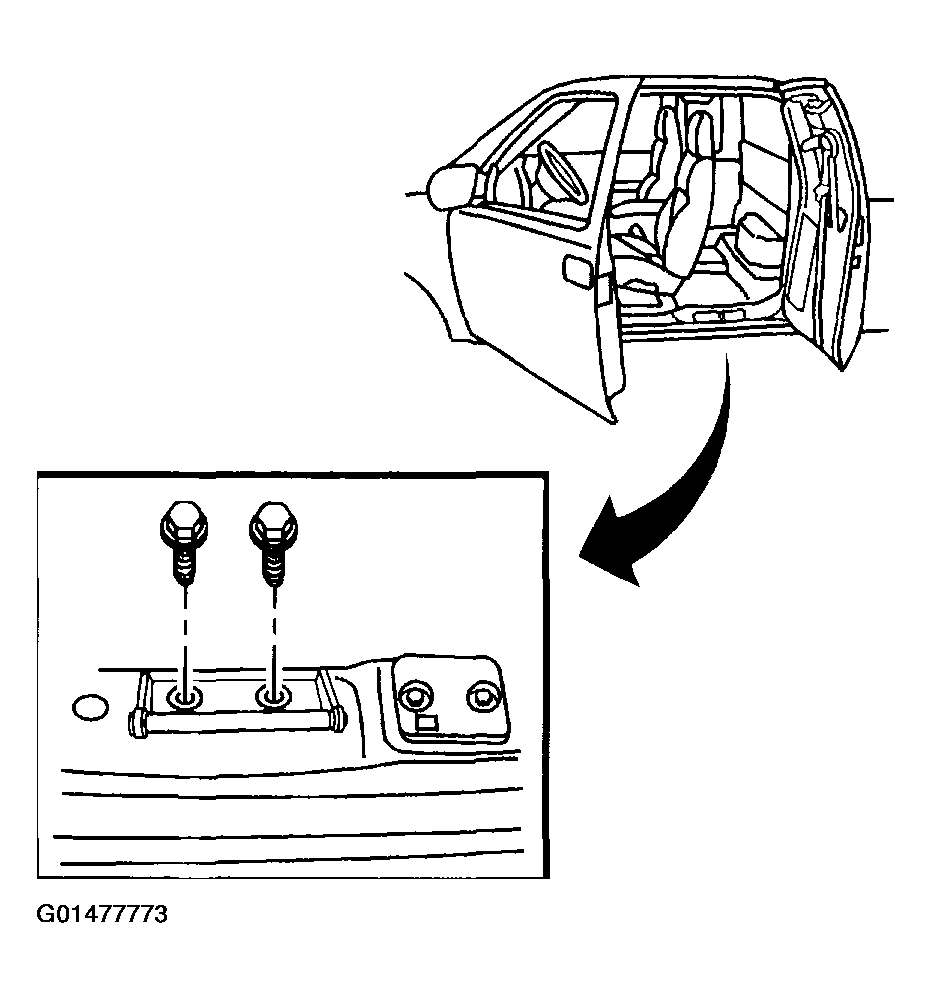

    Fig 1: Lower Door Striker
    G01477773Courtesy of GENERAL MOTORS CORP.
