Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

Important: If both of the door striker bolts are removed at the same time, the striker backing plate will fall into the body. This will result in additional time to perform the repair.

Remove the front door lower striker bolt.

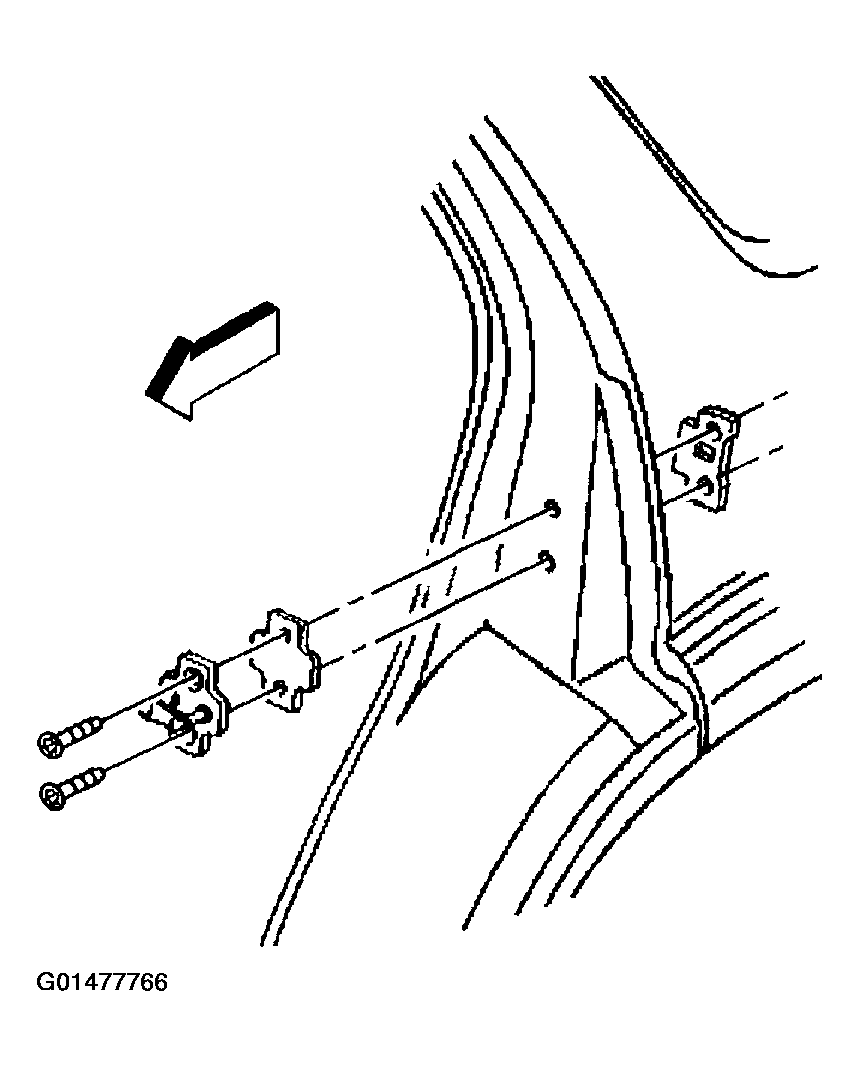

Fig 1: Front Door Lower Striker Bolt
Courtesy of GENERAL MOTORS CORP.
Remove the rear door lower striker bolt.
Loosen the upper striker bolts enough in order to rotate the striker and the spacer (if equipped) away from the lower bolt hole.
Install the lower striker bolt.
Tighten the lower striker bolt sufficiently in order to hold the striker backing plate in place.
Remove the following components:
- The upper striker bolt
- The spacer (if equipped)
- The striker

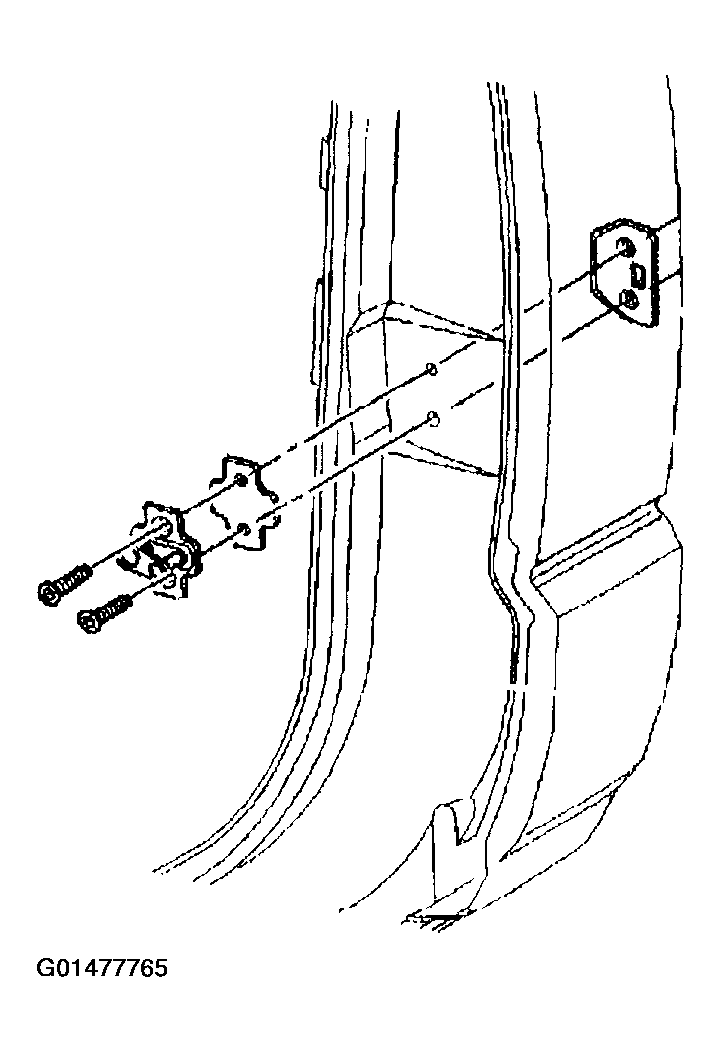

Fig 2: Rear Door Lower Striker Bolt
Courtesy of GENERAL MOTORS CORP.
