Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the side front door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR .
  2. Remove the staples that secure the sealing strip to the trim panel.
  3. Remove the sealing strip.

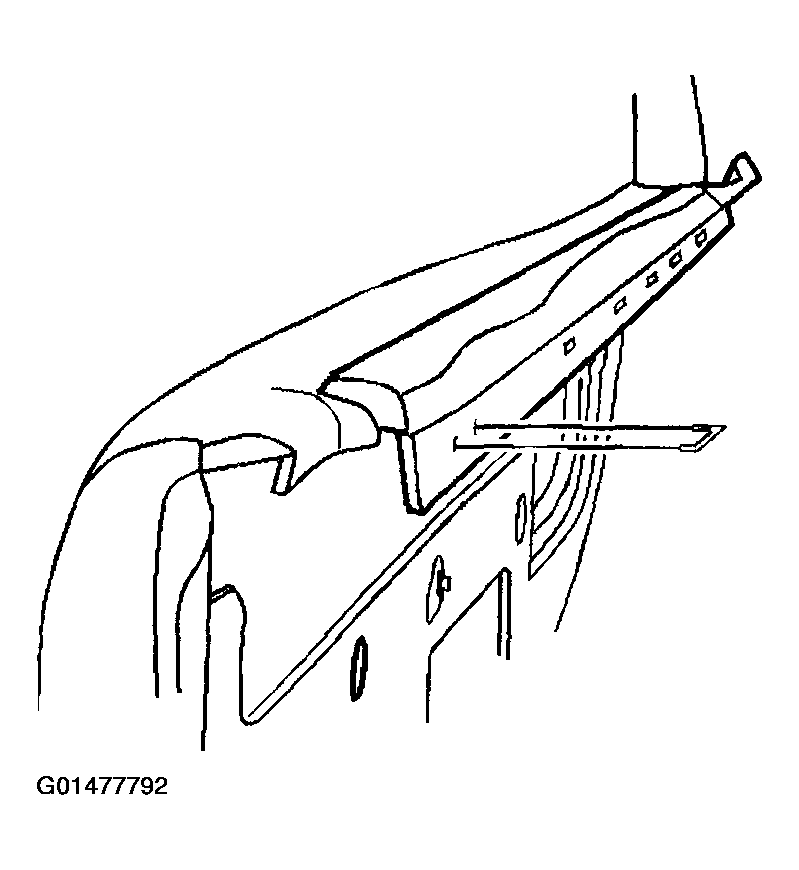

    Fig 1: Removing Front Door Window Belt Inner Sealing Strip From Trim Panel
    G01477792Courtesy of GENERAL MOTORS CORP.
