Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

Remove the door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE REAR DOOR (UTILITY) or TRIM PANEL REPLACEMENT - SIDE REAR DOOR (EXTENDED CAB P/U ONLY) .
Slide the lower latch cover up the latch rod to access the latch rod retainer.

Fig 1: Sliding Lower Latch Cover Up To Access Latch Rod Retainer
Courtesy of GENERAL MOTORS CORP.
Disconnect the latch rod from retainer on the lower latch

Fig 2: Disconnecting Latch Rod From Retainer On Lower Latch
Courtesy of GENERAL MOTORS CORP.
Remove the bolts retaining the lower latch to the door.
Remove the lower latch bolt.

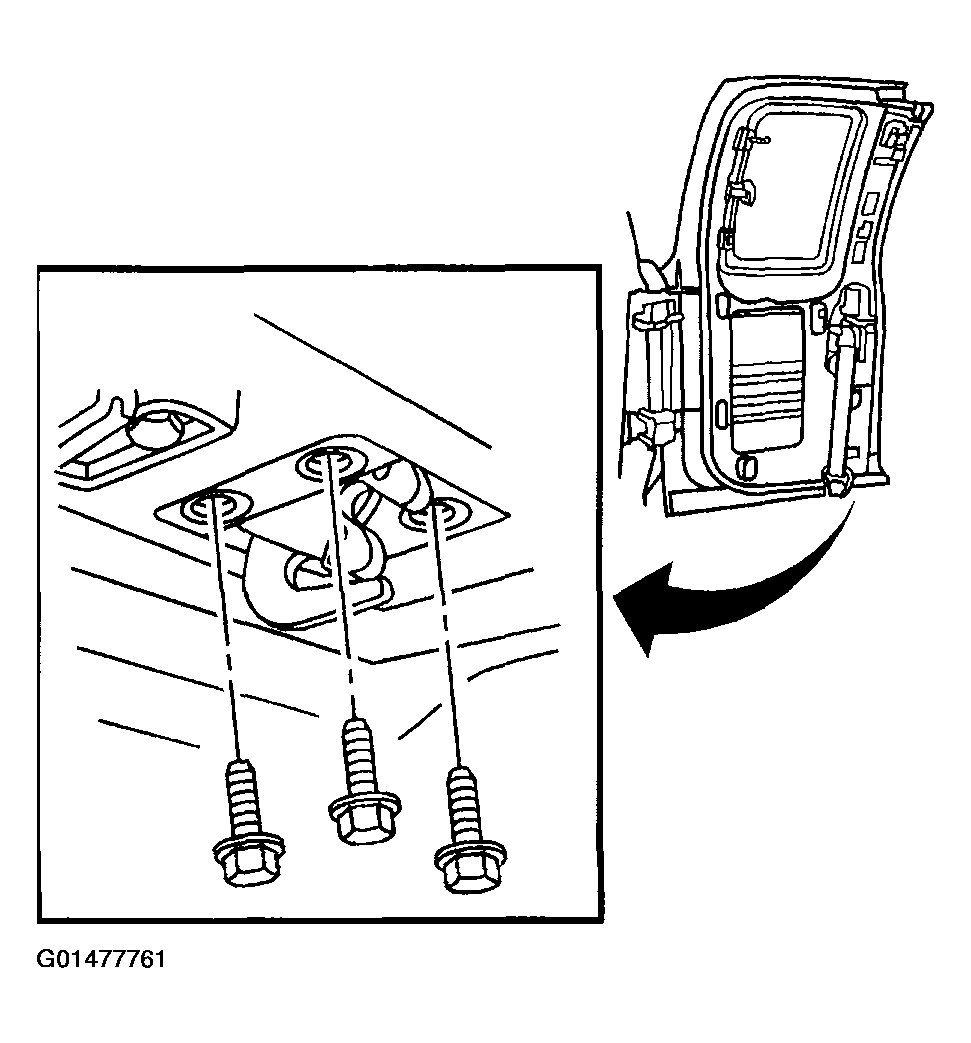

Fig 3: Removing Bolts Retaining Lower Latch To Door
Courtesy of GENERAL MOTORS CORP.
