Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Before removing the spring, cover the spring with a towel to prevent the spring from flying and possibly causing damage or personal injury.
  1. Remove the door hinge spring using the J 36604  .

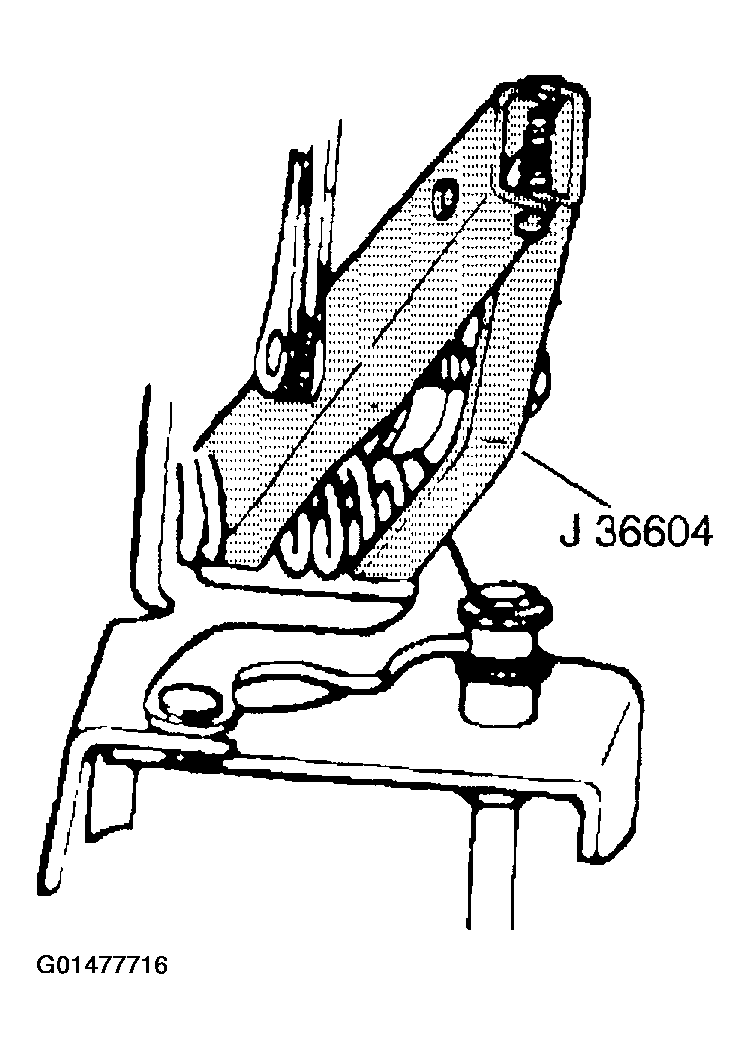

    Fig 1: Door Hinge Spring
    G01477716Courtesy of GENERAL MOTORS CORP.
  2. Remove the C-clips that retain the door hinge roller pins.
  3. Support the door in the open position.
  4. Remove the door hinge roller pins from the vehicle.

    Use a soft-faced hammer and locking pliers in order to remove the hinge pins.

  5. Position the door away from the hinge. Remove and discard the old bushings.

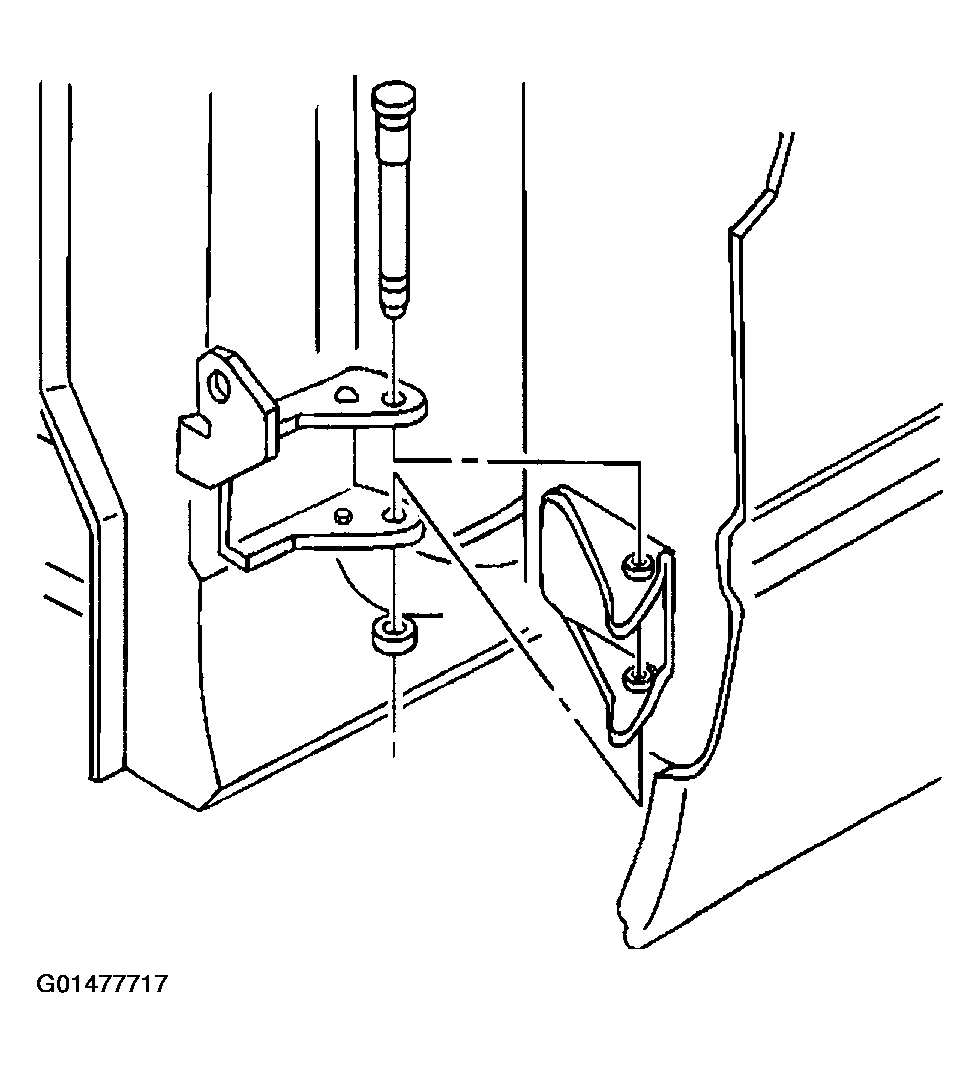

    Fig 2: Removing Door Hinge Roller Pins From Vehicle
    G01477717Courtesy of GENERAL MOTORS CORP.
