Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the screw that retains the front inside door handle bezel to the door trim panel.

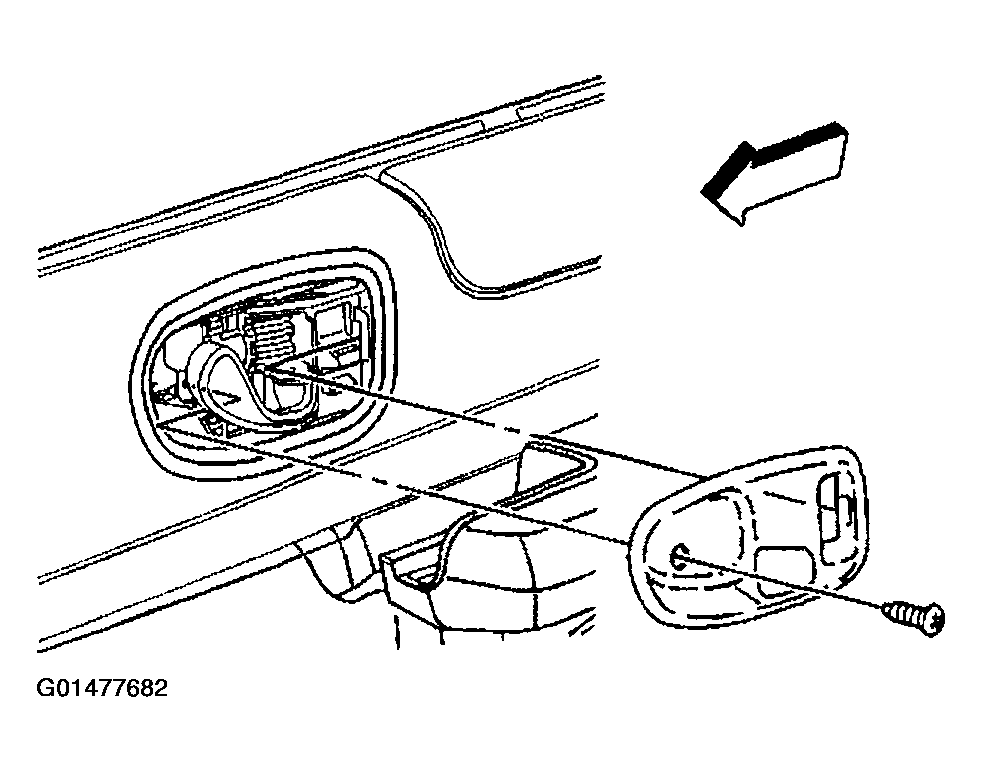

    Fig 1: Removing Front Inside Door Handle Bezel From Door Trim Panel
    G01477682Courtesy of GENERAL MOTORS CORP.
  2. Remove the screw that retains the rear inside door handle bezel to the door trim panel.
  3. Remove the inside door handle bezel from the door trim panel by sliding rearward.

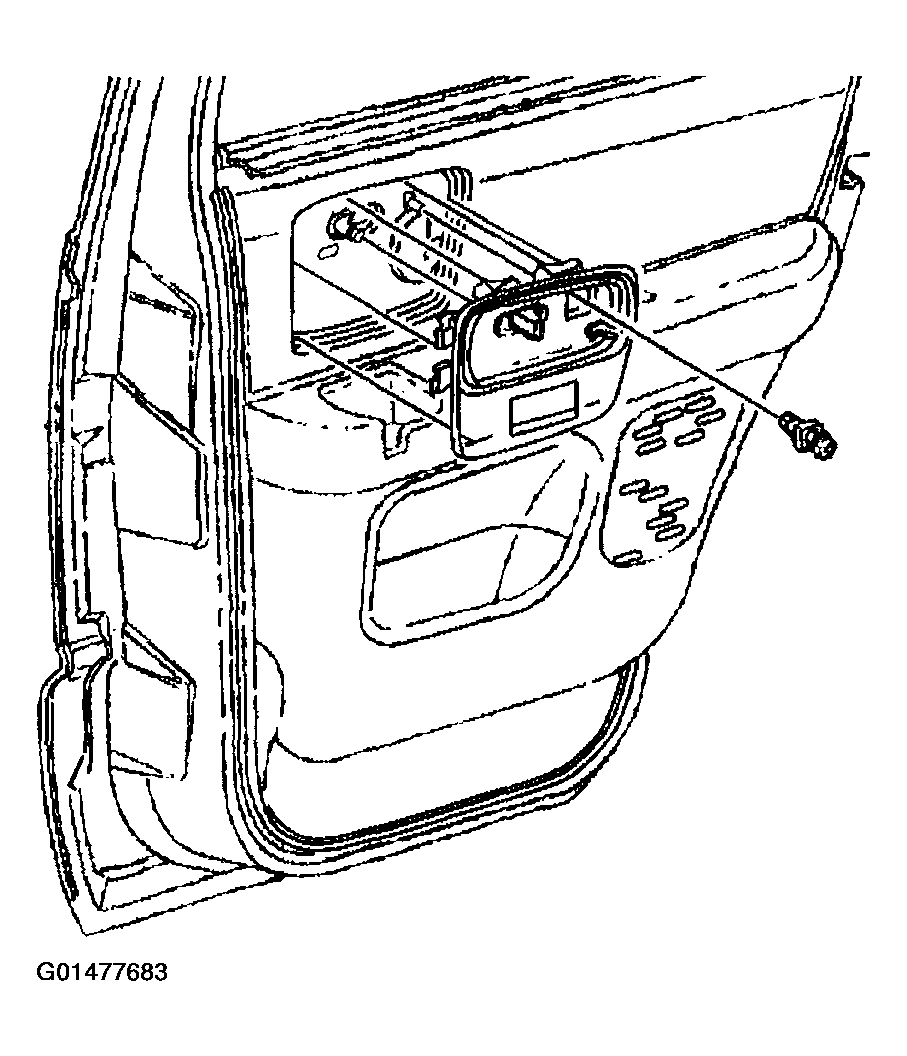

    Fig 2: Removing Rear Inside Door Handle Bezel From Door Trim Panel
    G01477683Courtesy of GENERAL MOTORS CORP.
