Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Close the window.
  2. Remove the door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE REAR DOOR (UTILITY)  or TRIM PANEL REPLACEMENT - SIDE REAR DOOR (EXTENDED CAB P/U ONLY) .
  3. Peel back the corner of the water deflector in order to expose the door handle screw access hole.
  4. Remove the outside door handle screw access hole plug.
  5. Remove the outside door handle rod from the handle.
  6. Remove the screws that retain the outside door handle to the door panel.
  7. Remove the outside door handle from the door.

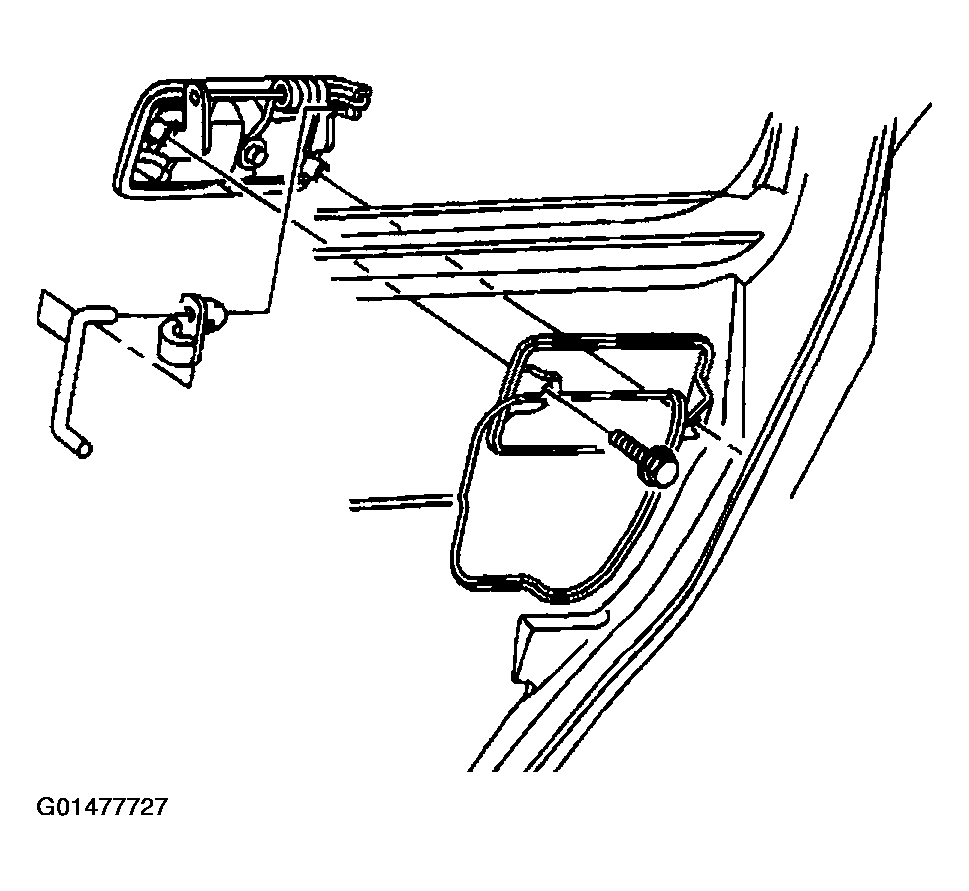

    Fig 1: Removing Outside Door Handle From Door
    G01477727Courtesy of GENERAL MOTORS CORP.
