Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE REAR DOOR (UTILITY)  or TRIM PANEL REPLACEMENT - SIDE REAR DOOR (EXTENDED CAB P/U ONLY) .
  2. Remove the inside door handle rod (2).
  3. Remove the inside door handle retaining rivets.
  4. Remove the inside door handle from the door by sliding the handle rearward.

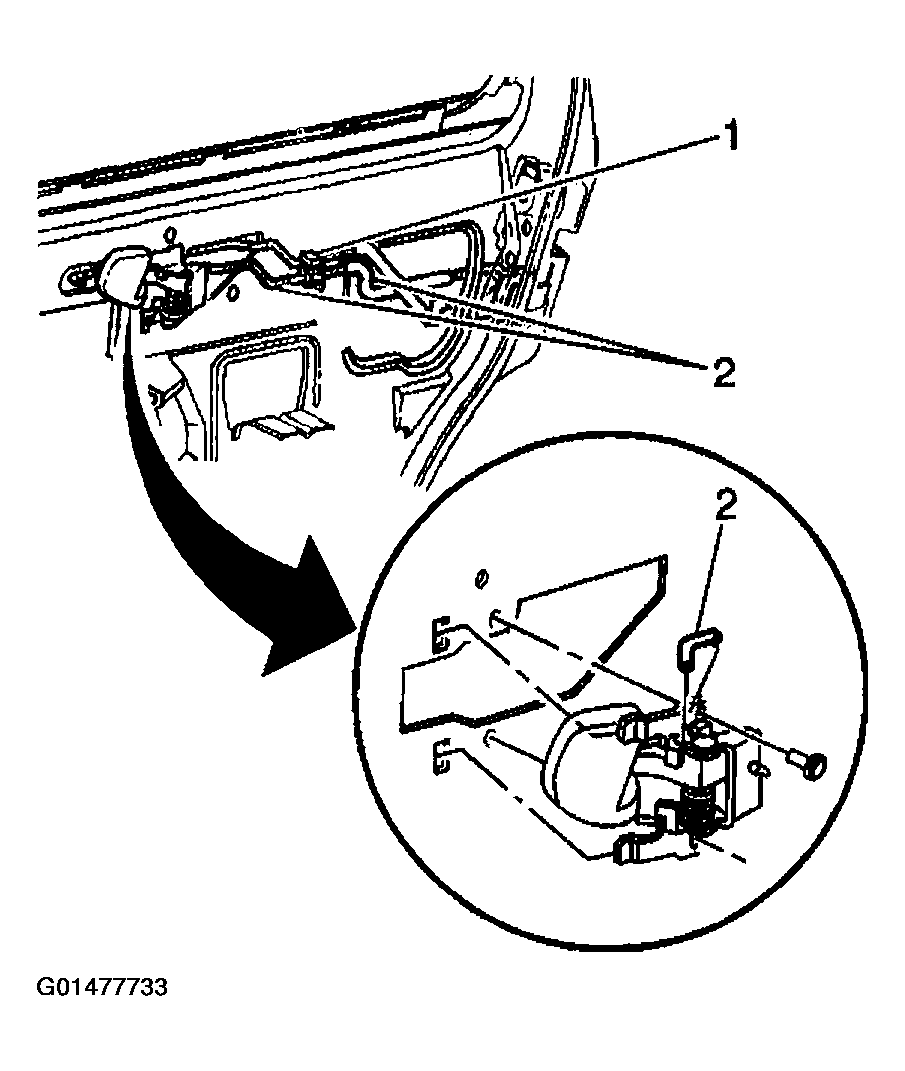

    Fig 1: Removing Rear Inside Door Handle From Door By Sliding Handle Rearward
    G01477733Courtesy of GENERAL MOTORS CORP.
