Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Close the window.
  2. Remove the door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR .
  3. Remove the water deflector. Refer to WATER DEFLECTOR REPLACEMENT - DOOR .
  4. Remove the outside door handle screw access hole plug.
  5. Remove the outside door lock rod from the handle (2).
  6. Remove the outside door handle rod from the handle (1).
  7. Remove the screws that retain the outside door handle to the door panel.

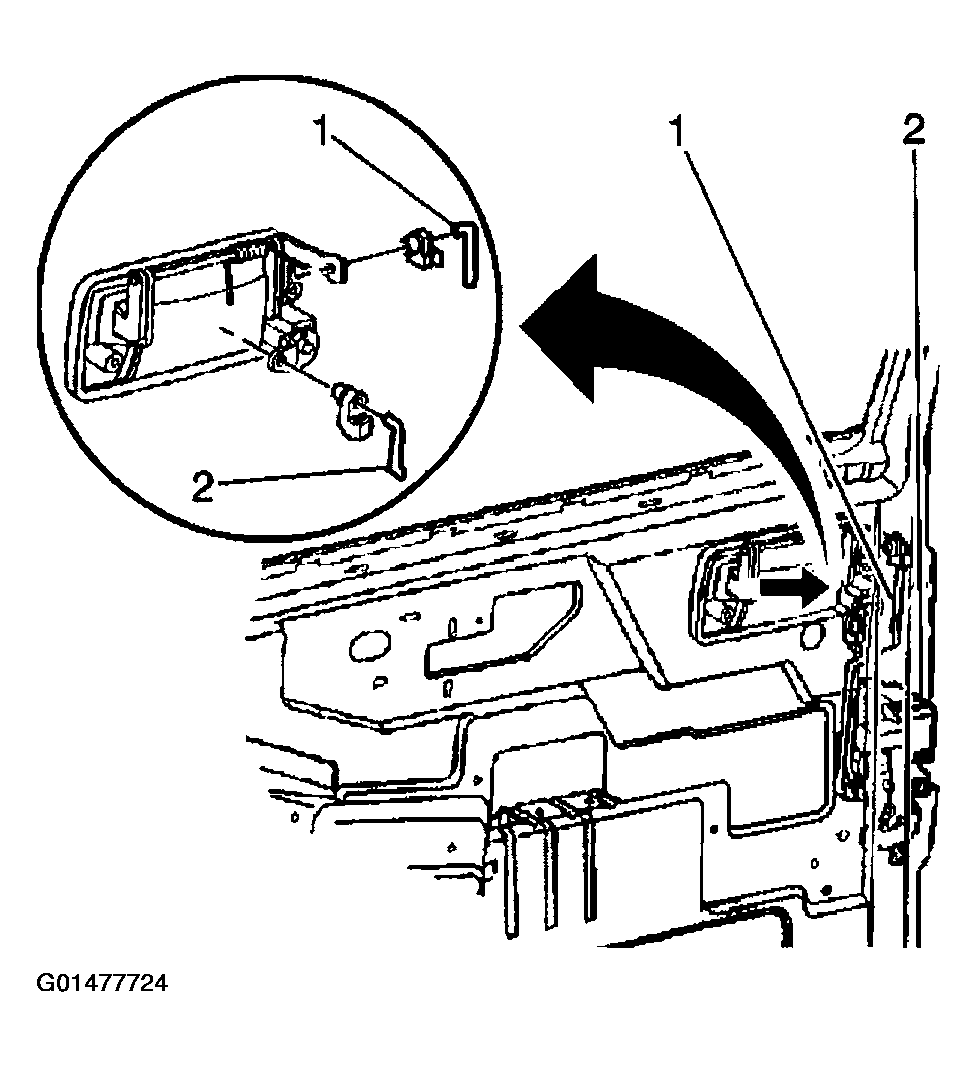

    Fig 1: Removing Outside Door Lock Rod & Handle Rod From Handle
    G01477724Courtesy of GENERAL MOTORS CORP.
  8. Remove the outside door handle from the door.
  9. Remove and retain the lock cylinder from the outside door handle. Refer to LOCK CYLINDER REPLACEMENT - DOOR .

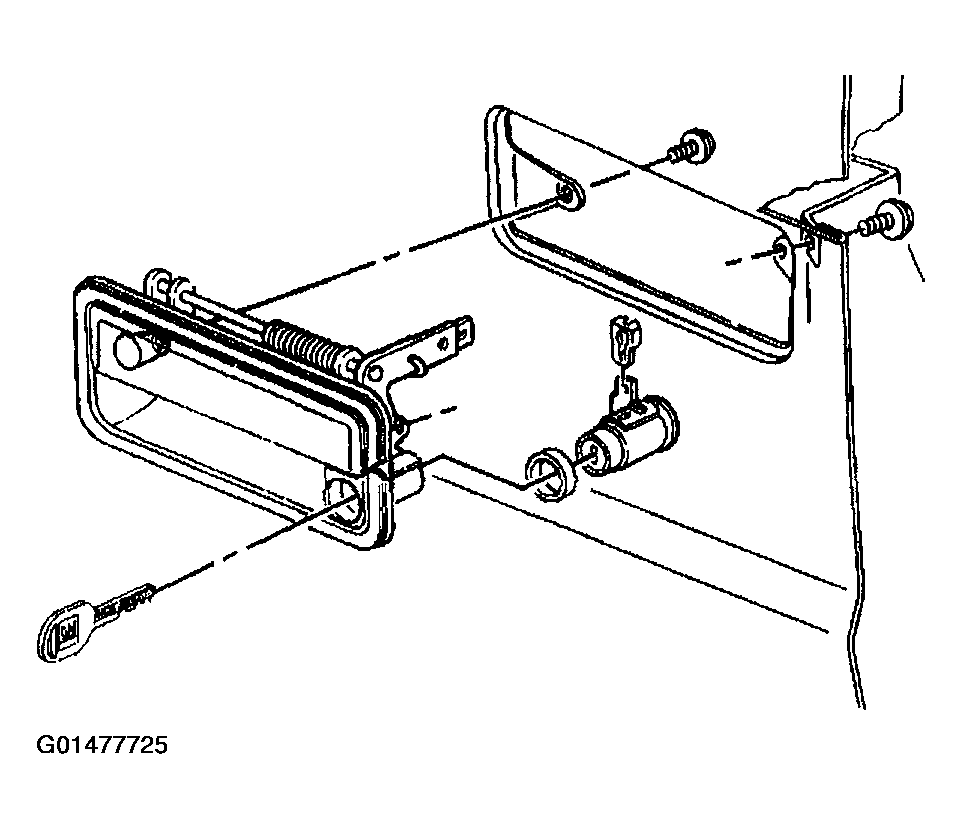

    Fig 2: Removing Outside Door Handle From Door
    G01477725Courtesy of GENERAL MOTORS CORP.
