Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the door trim panel from the door. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR  or TRIM PANEL REPLACEMENT - SIDE REAR DOOR (EXTENDED CAB P/U ONLY) .
  2. Release the 4 tabs retaining the bezel to the trim panel.
  3. Remove the bezel from the trim panel.

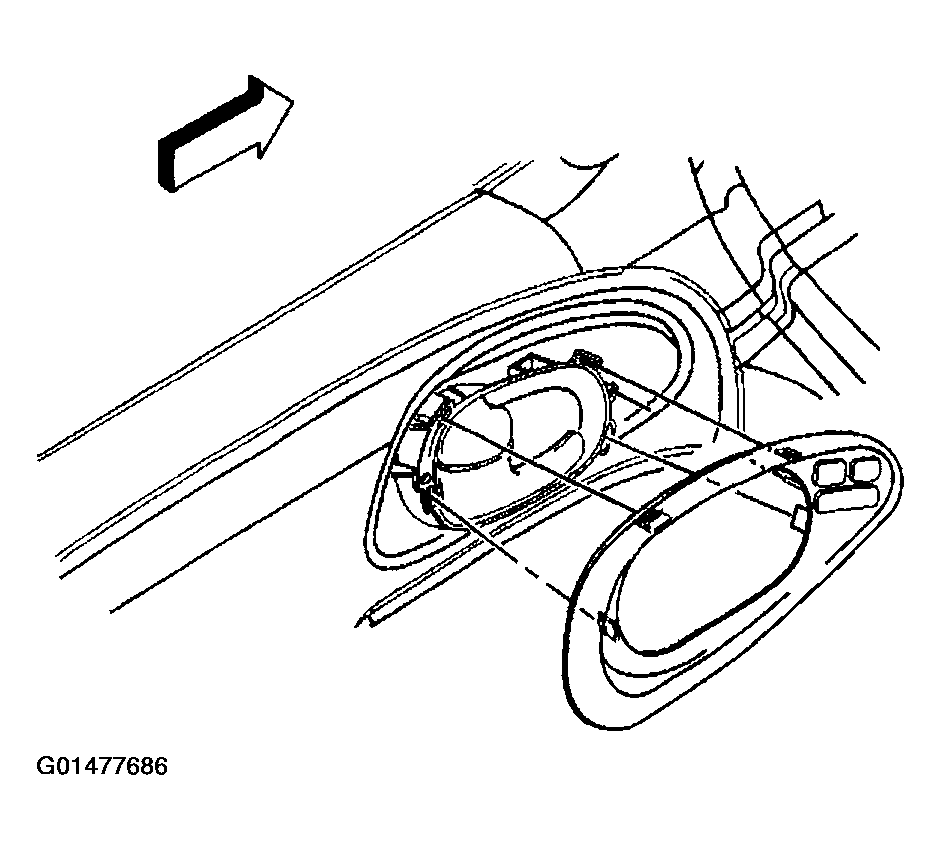

    Fig 1: Removing Door Handle Bezel From Trim Panel
    G01477686Courtesy of GENERAL MOTORS CORP.
