Test Description

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

  1. 6. This step tests the integrity of both the mirror control circuits and the power mirror switch. If both power mirrors are inoperative on one or more axis, begin testing by disconnecting one of the power mirrors, if an open circuit is detected and repaired for that power mirror, repeat step 6 for the other power mirror.
  2. 7. This step tests the integrity of the battery positive voltage circuit not the fuse.

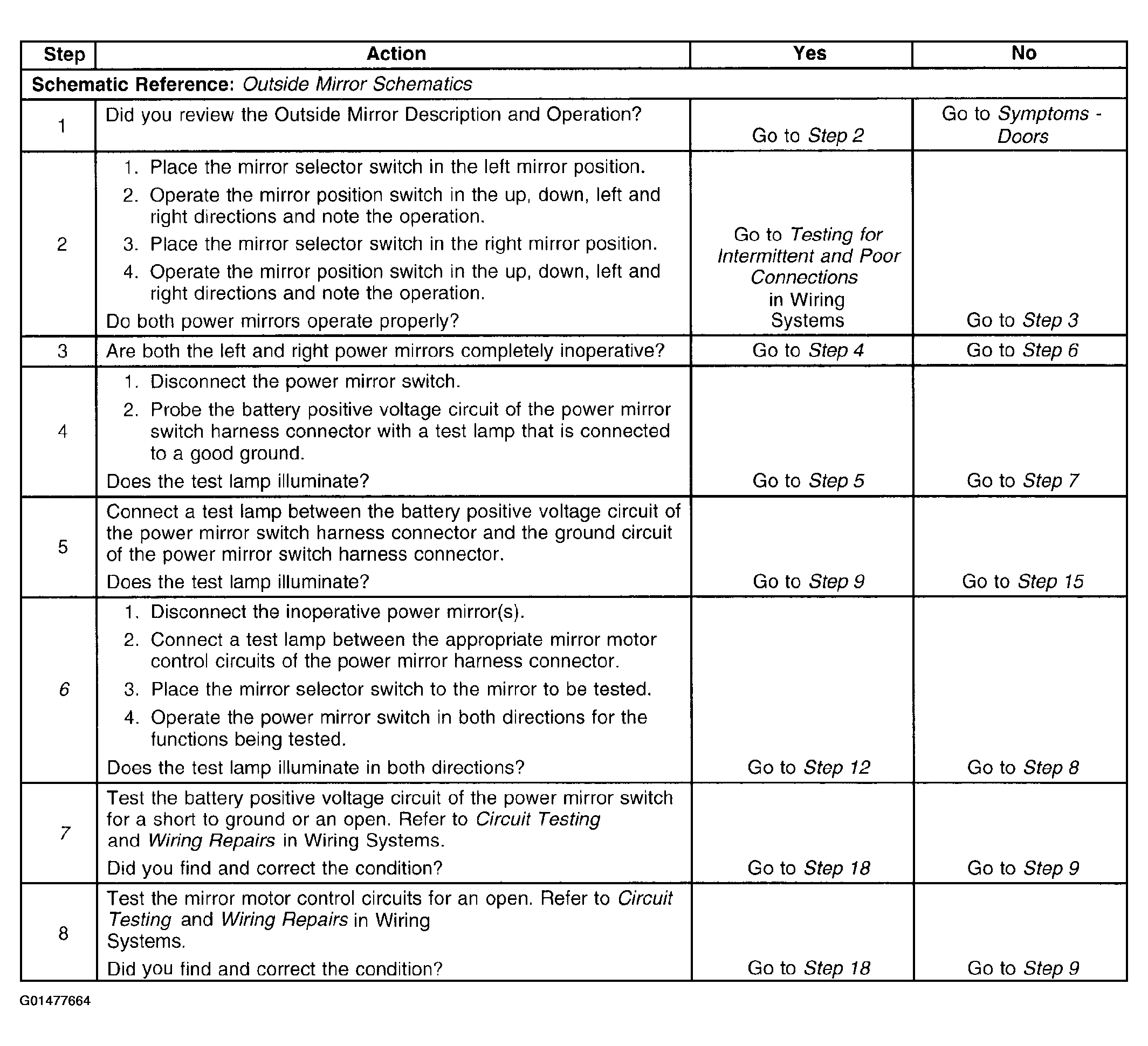

Fig 1: Power Mirrors Inoperative (1 Of 2)
G01477664Courtesy of GENERAL MOTORS CORP.

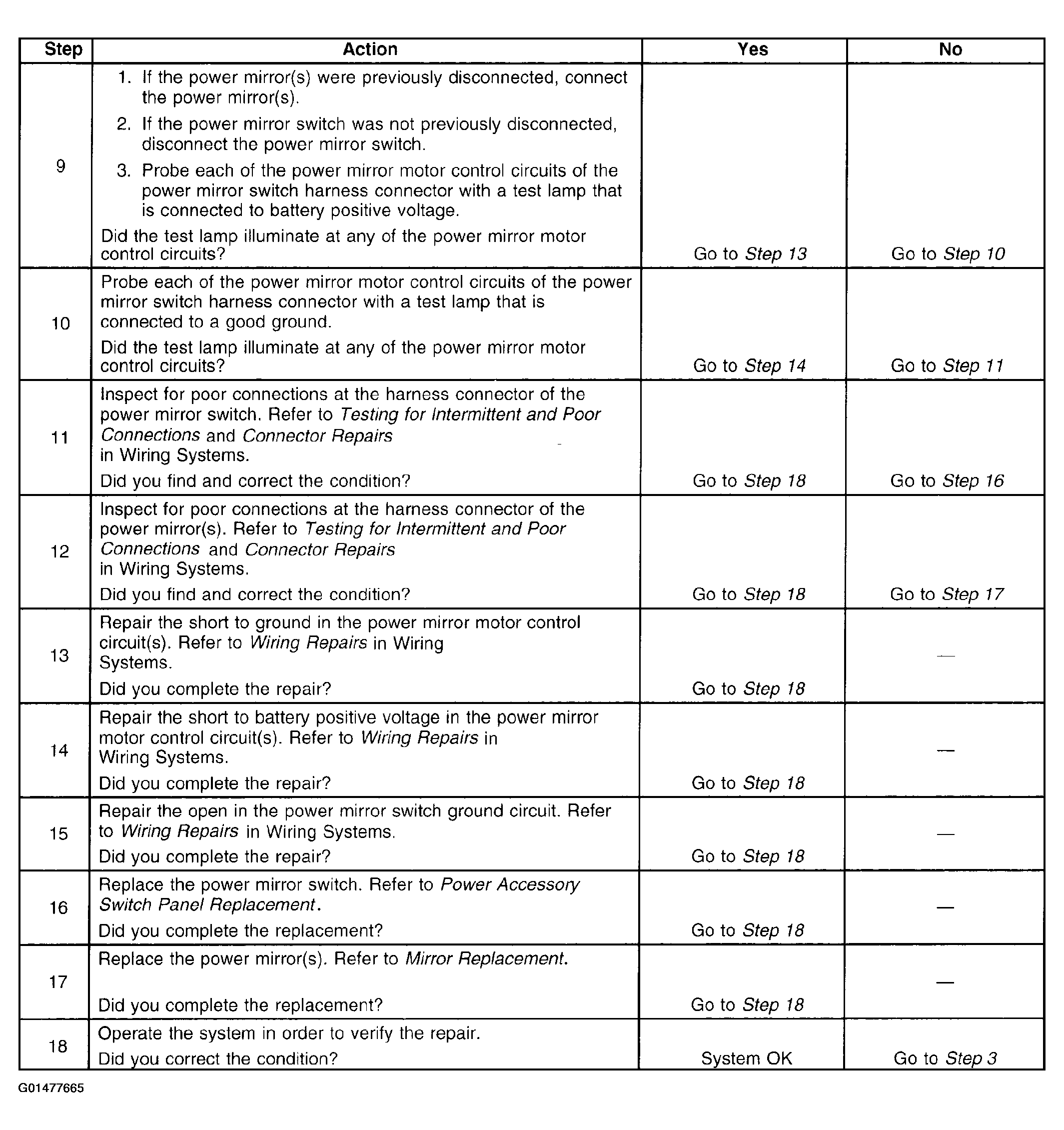

Fig 2: Power Mirrors Inoperative (2 Of 2)
G01477665Courtesy of GENERAL MOTORS CORP.

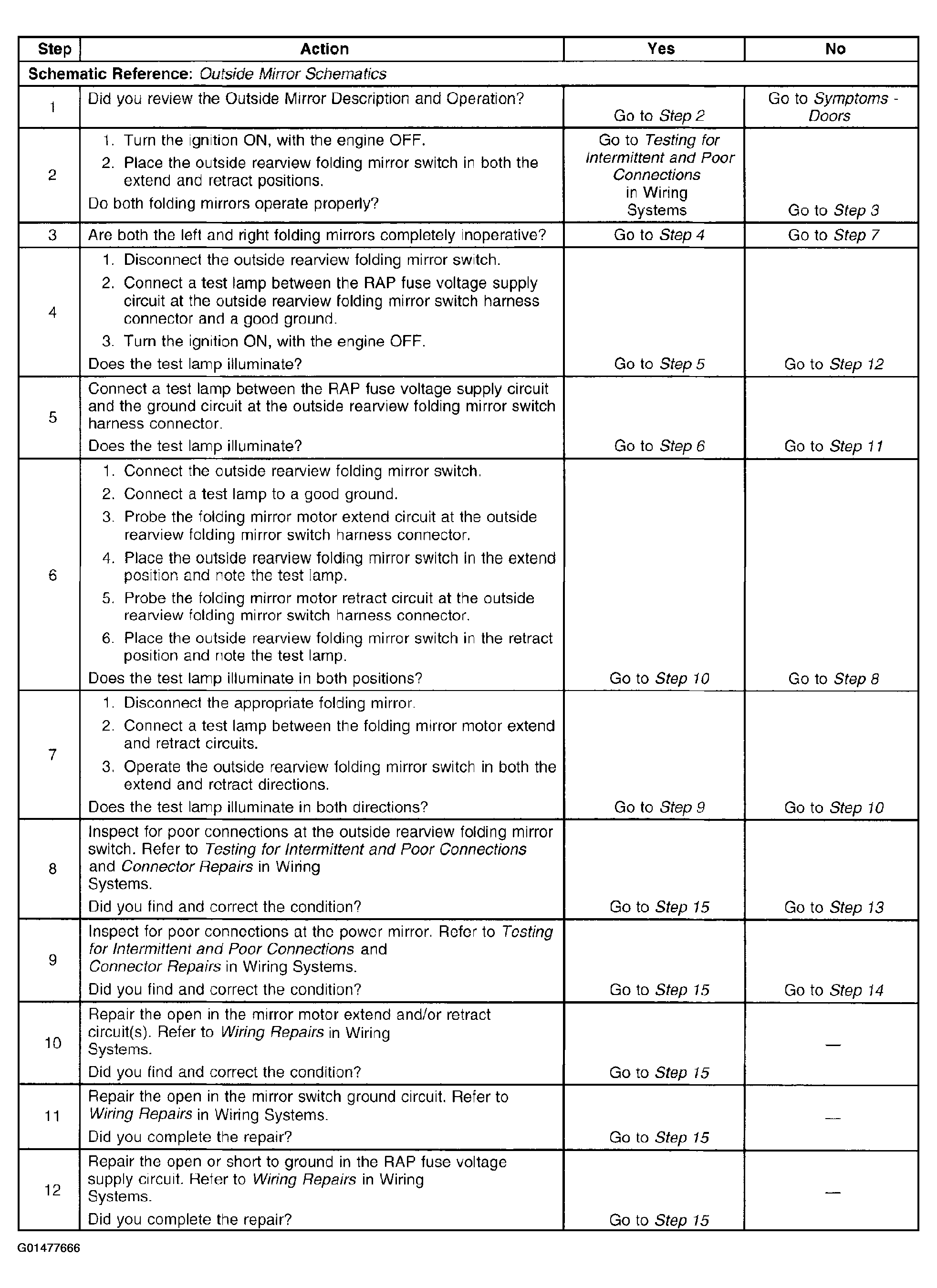

Fig 3: Power Mirrors - Folding Inoperative (1 Of 2)
G01477666Courtesy of GENERAL MOTORS CORP.

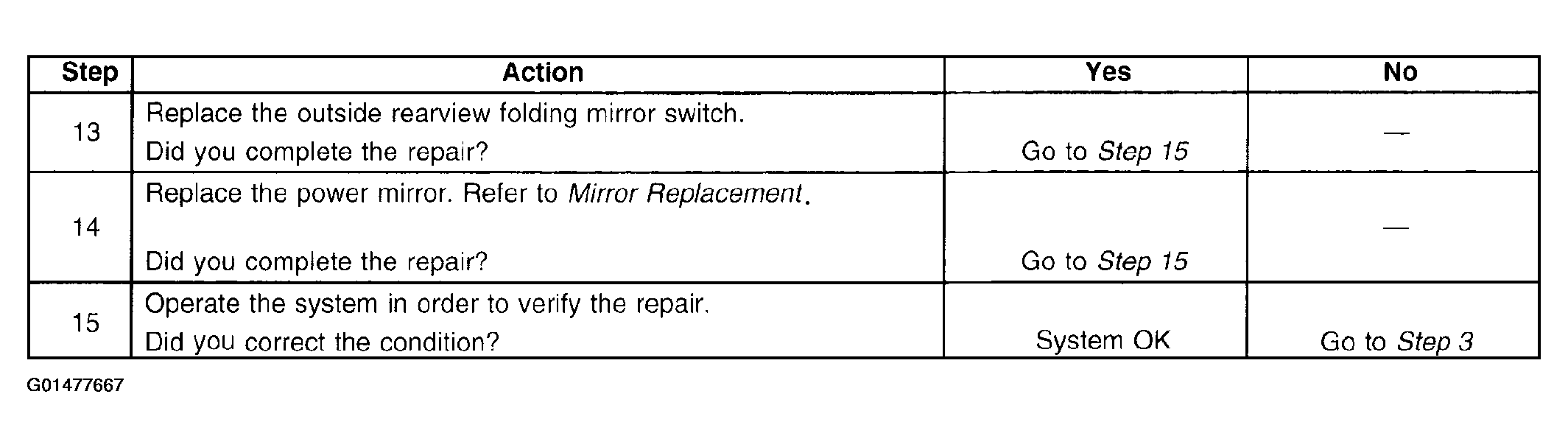

Fig 4: Power Mirrors - Folding Inoperative (2 Of 2)
G01477667Courtesy of GENERAL MOTORS CORP.

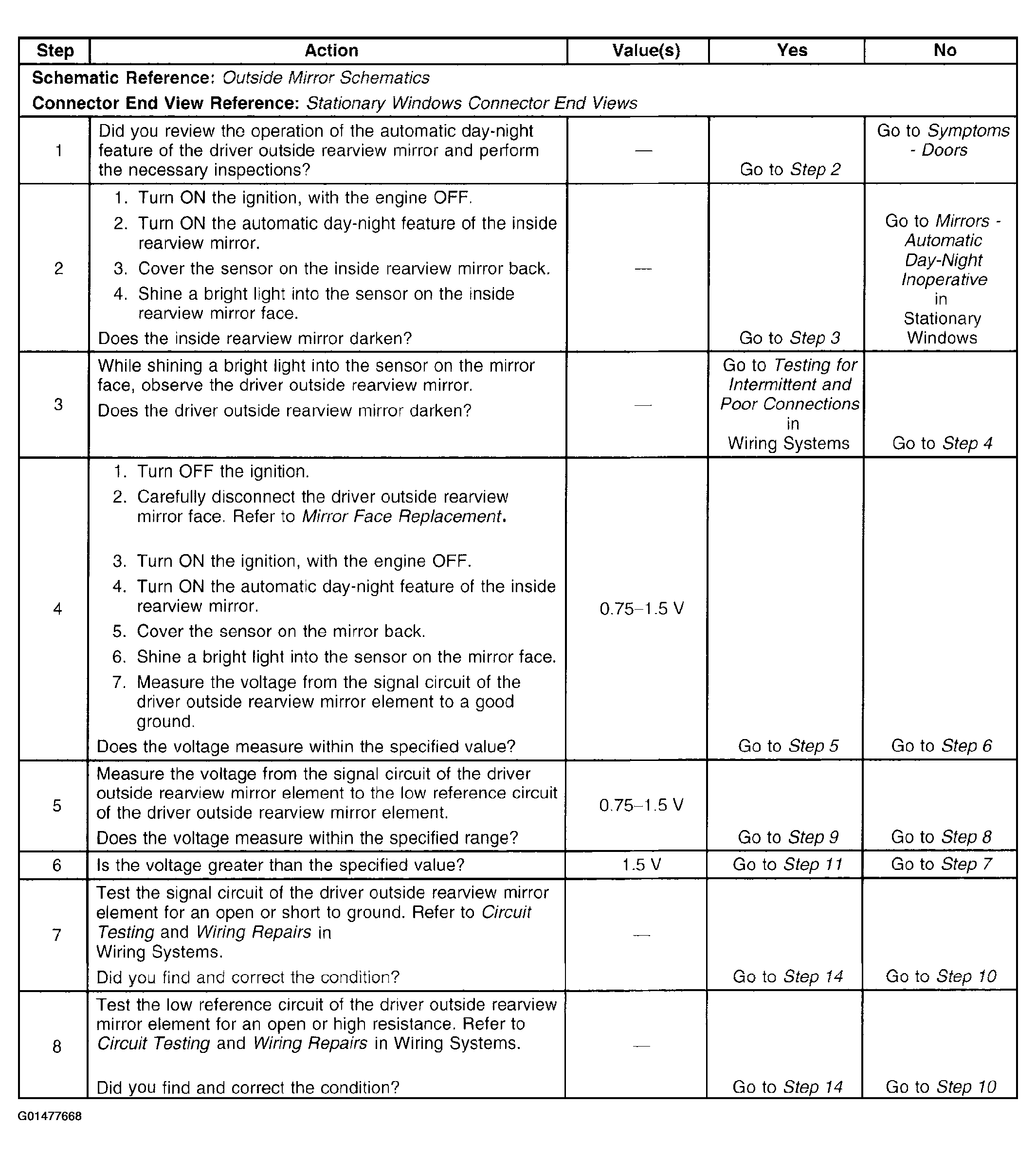

Fig 5: Mirrors - Outside Automatic Day-Night Feature Inoperative (1 Of 2)
G01477668Courtesy of GENERAL MOTORS CORP.

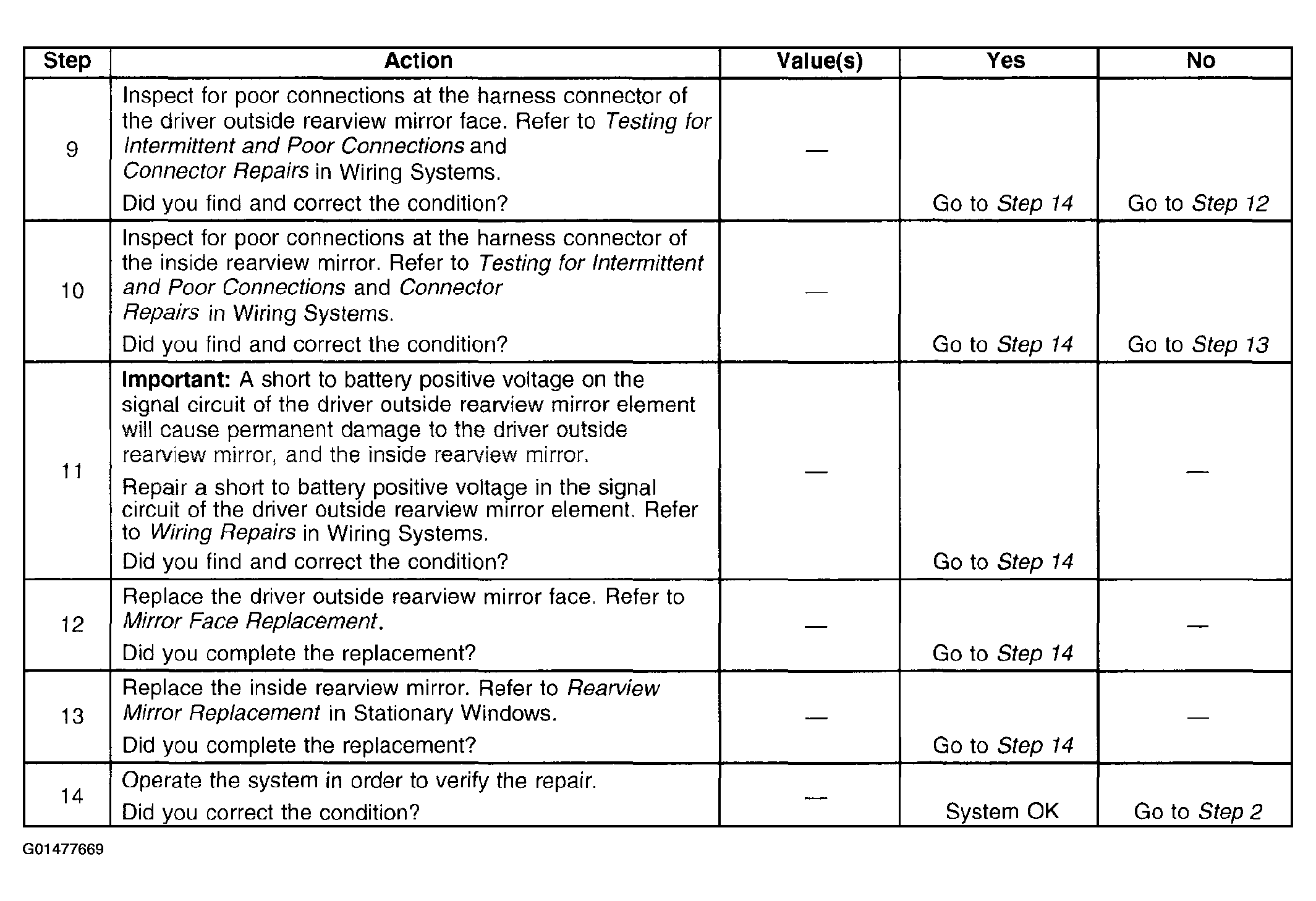

Fig 6: Mirrors - Outside Automatic Day-Night Feature Inoperative (2 Of 2)
G01477669Courtesy of GENERAL MOTORS CORP.

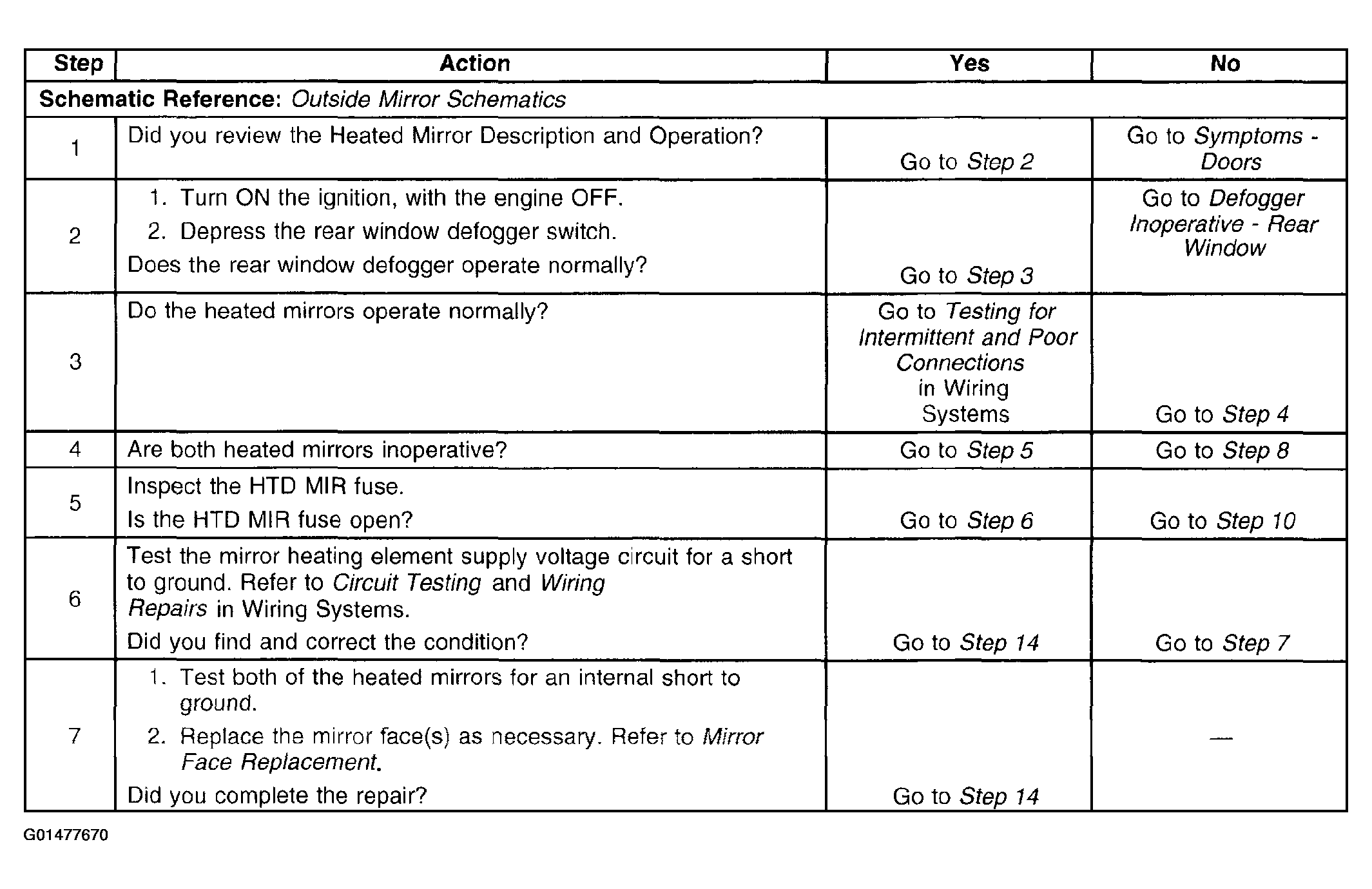

Fig 7: Heated Mirrors Inoperative (1 Of 2)
G01477670Courtesy of GENERAL MOTORS CORP.

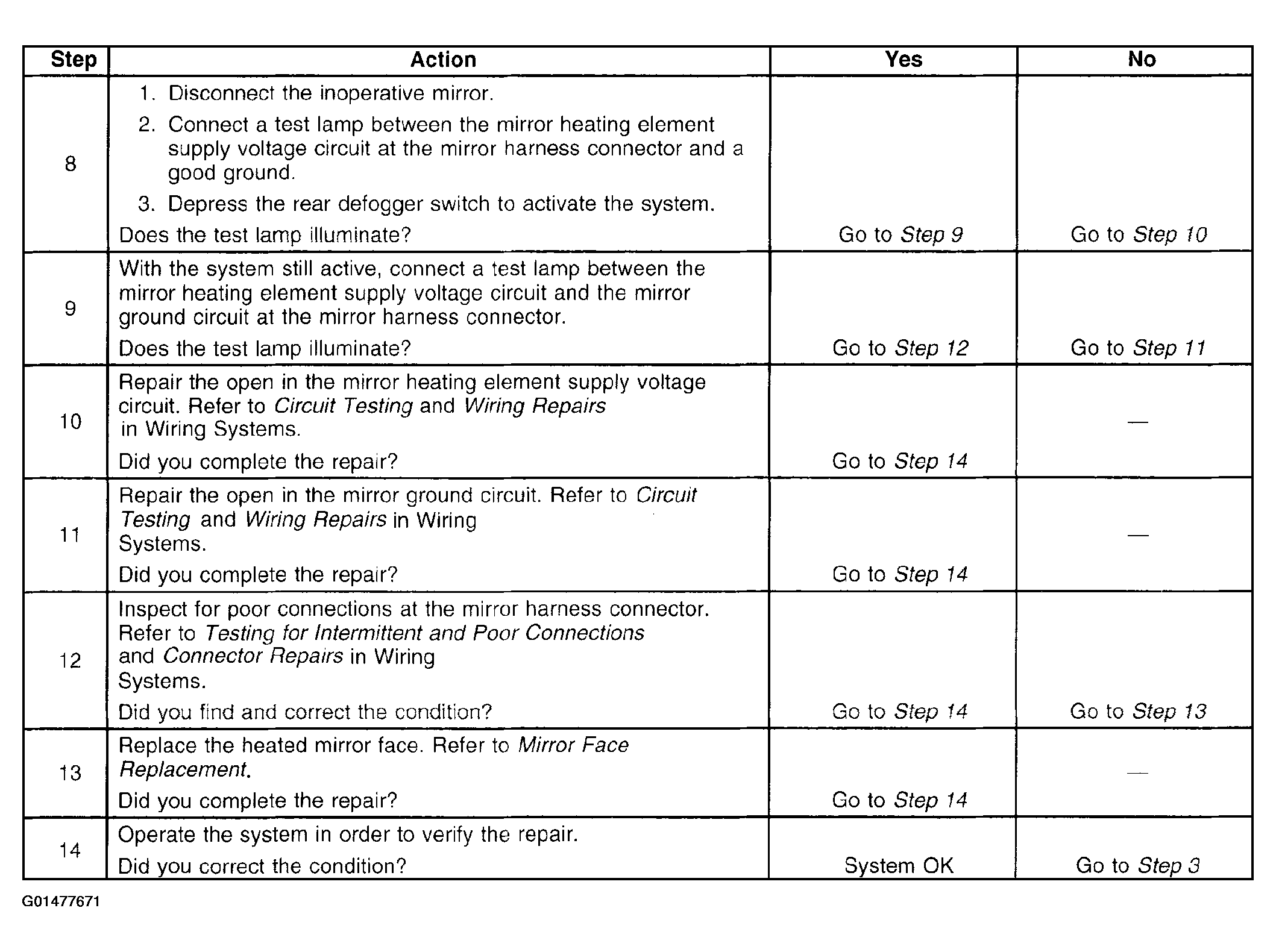

Fig 8: Heated Mirrors Inoperative (2 Of 2)
G01477671Courtesy of GENERAL MOTORS CORP.
