Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the battery tray. Refer to BATTERY TRAY REPLACEMENT in Engine Electrical.
  2. Remove the PCM from the coolant recovery reservoir. Refer to the appropriate procedure:
  3. Remove the coolant recovery reservoir. Refer to COOLANT RECOVERY RESERVOIR REPLACEMENT in Engine Cooling.
  4. Remove the bolts that retain the wheelhouse to the radiator support.

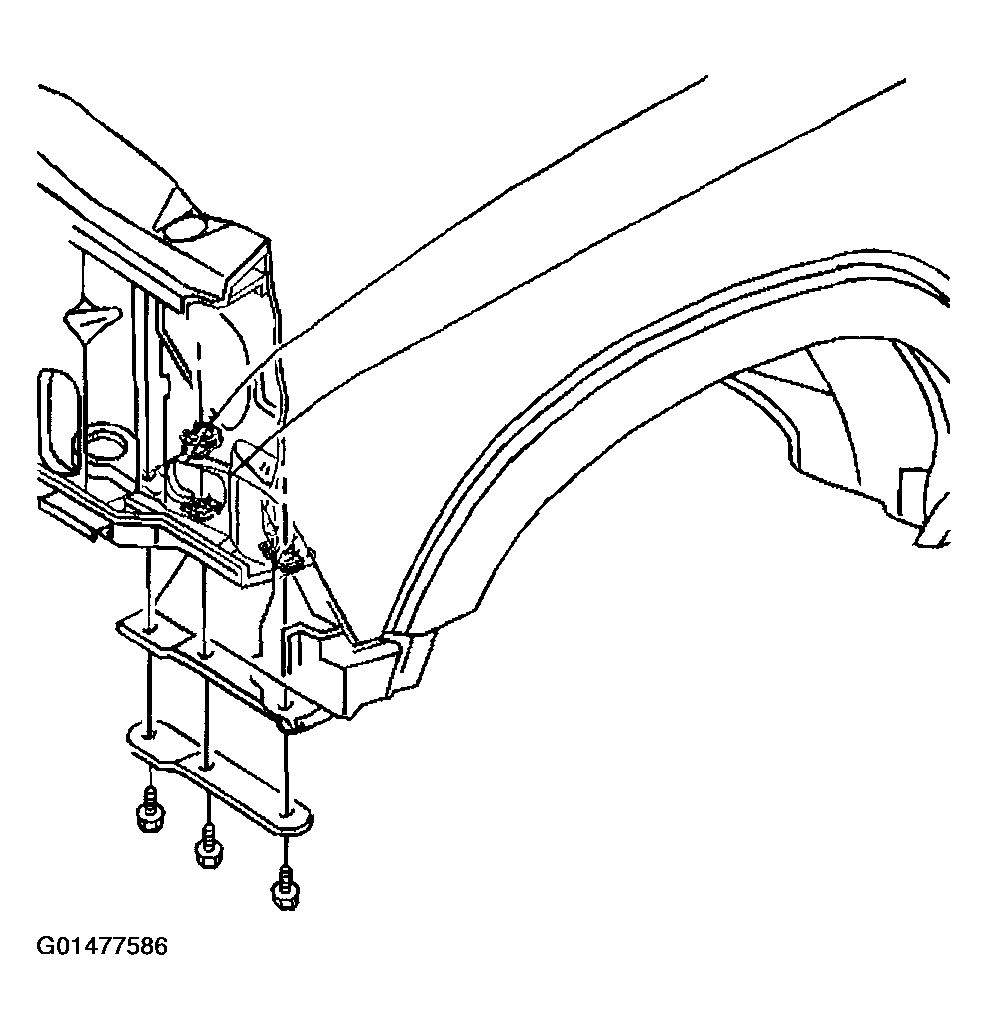

    Fig 1: Removing Bolts Retaining Wheelhouse To Radiator Support
    G01477586Courtesy of GENERAL MOTORS CORP.
  5. Remove the bolts that retain the wheelhouse to the fender.

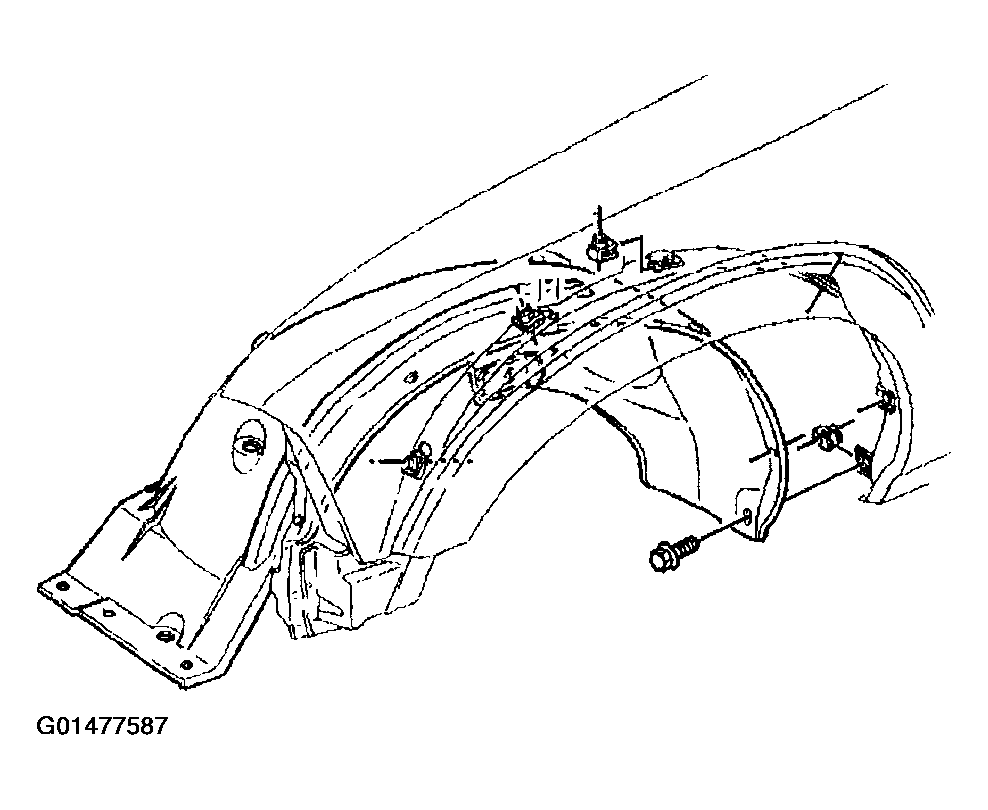

    Fig 2: Removing Bolts Retaining Wheelhouse To Fender
    G01477587Courtesy of GENERAL MOTORS CORP.
  6. Remove the bolt that retains the wheelhouse panel to the cowl.

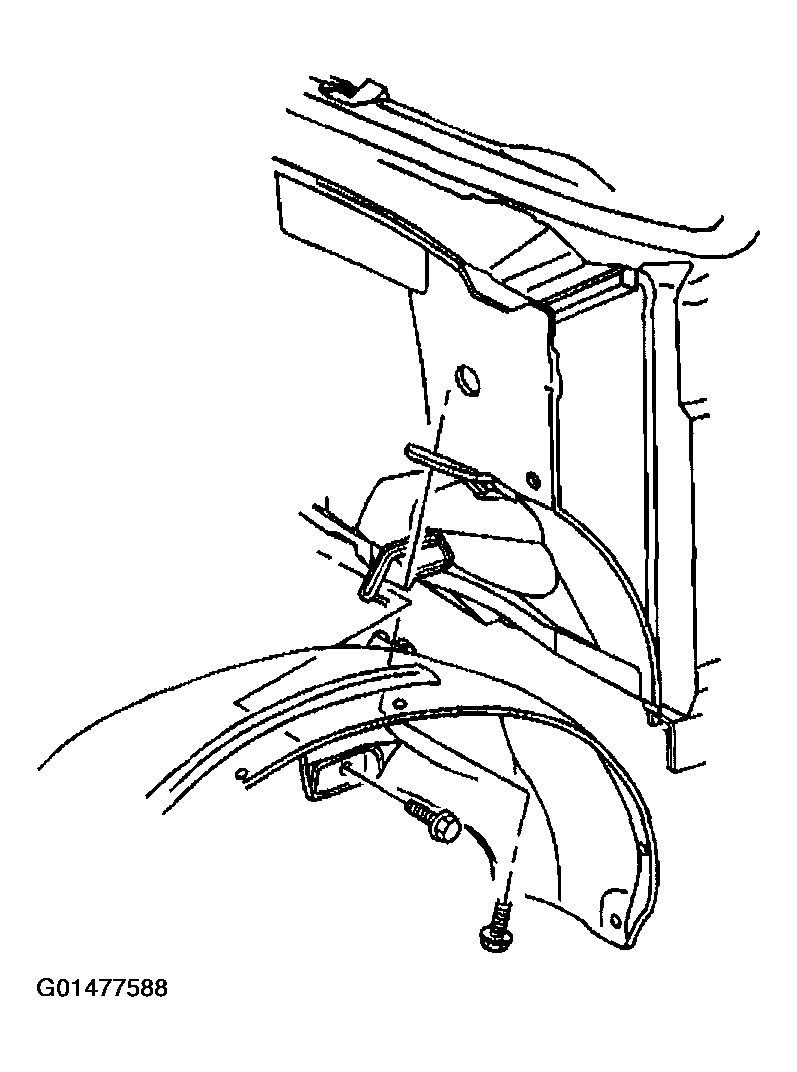

    Fig 3: Removing Bolt Retaining Wheelhouse Panel To Cowl
    G01477588Courtesy of GENERAL MOTORS CORP.
  7. Remove the wheelhouse panel from the fender.
  8. Remove the splash shield from the wheelhouse panel. Refer to WHEELHOUSE EXTENSION REPLACEMENT .

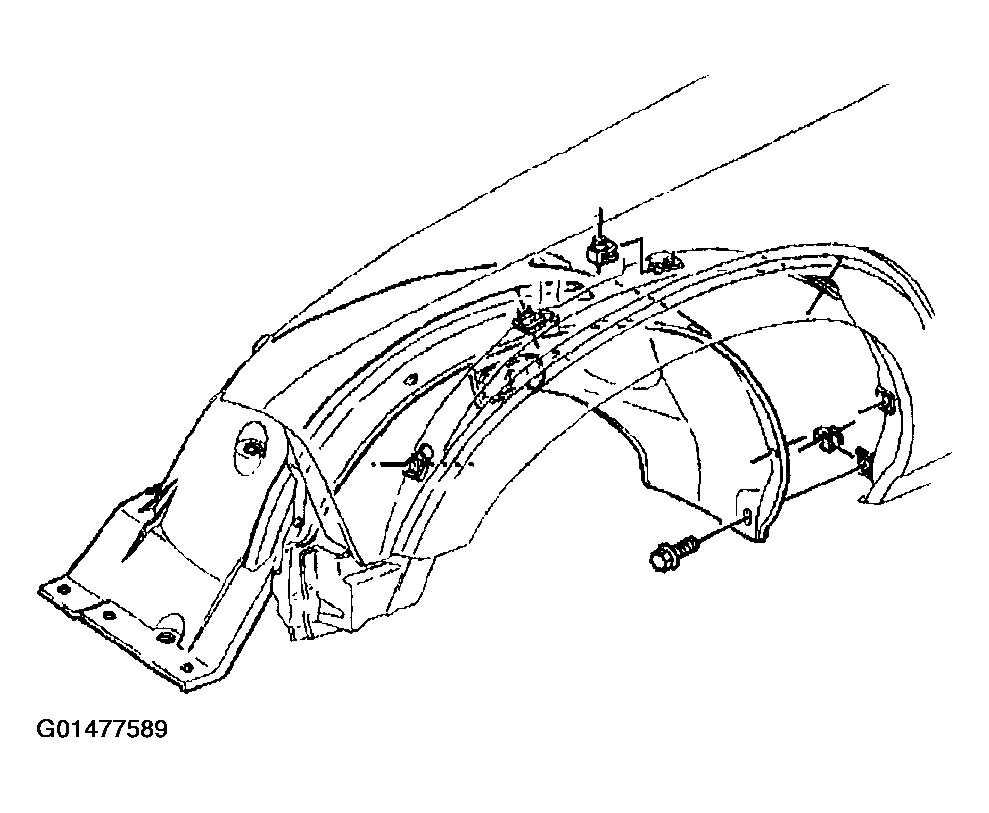

    Fig 4: Removing Wheelhouse Panel From Fender
    G01477589Courtesy of GENERAL MOTORS CORP.
