Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the screws securing the seal to the cowl.
  2. Use a flat-bladed tool in order to carefully break the adhesive bond.
  3. Remove the seal from the cowl plenum flange.
  4. Clean the flange. Use a suitable solvent such as a mixture of 50 percent isopropyl alcohol and 50 percent water or high-flash naptha.
  5. Dry the area thoroughly.

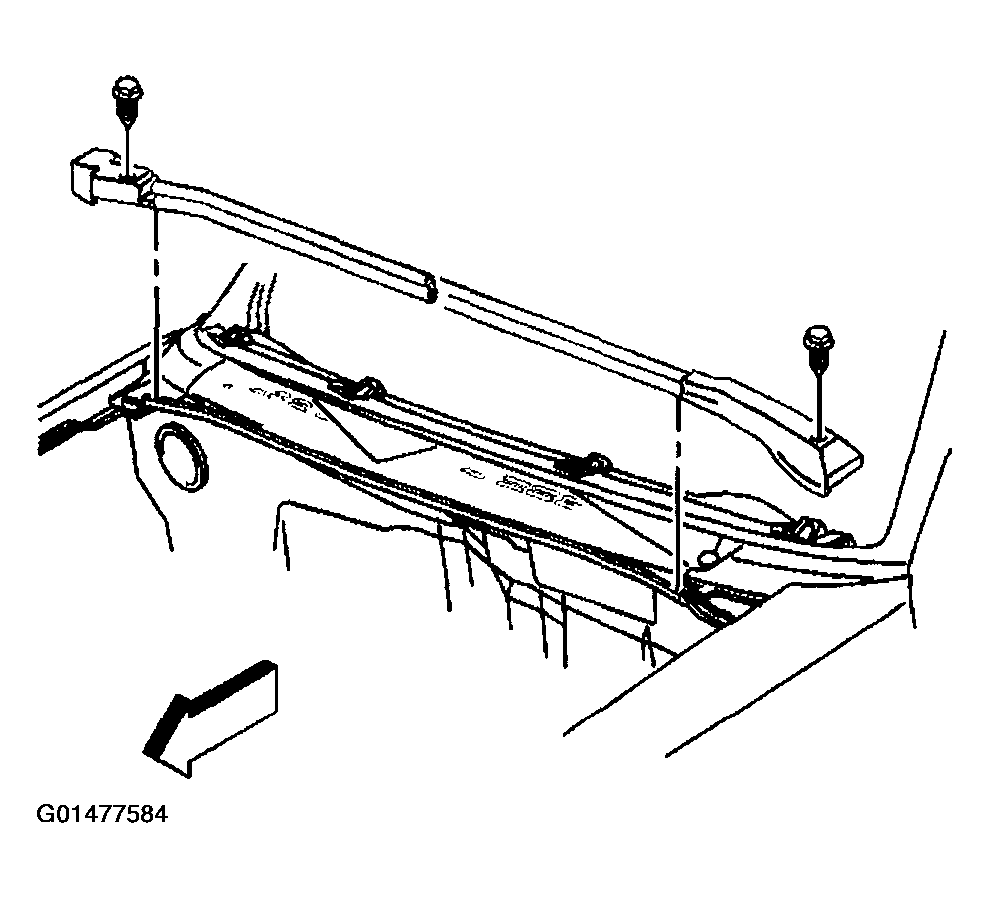

    Fig 1: Removing Screws Securing Seal To Cowl
    G01477584Courtesy of GENERAL MOTORS CORP.
