Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the liner from the adhesive strip.
  2. Position the seal to the cowl plenum.
  3. Press the seal into place.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Install the screws to secure the seal to the cowl.

    Tighten

    Tighten the cowl plenum seal screws to 1.9 N.m (17 lb in).

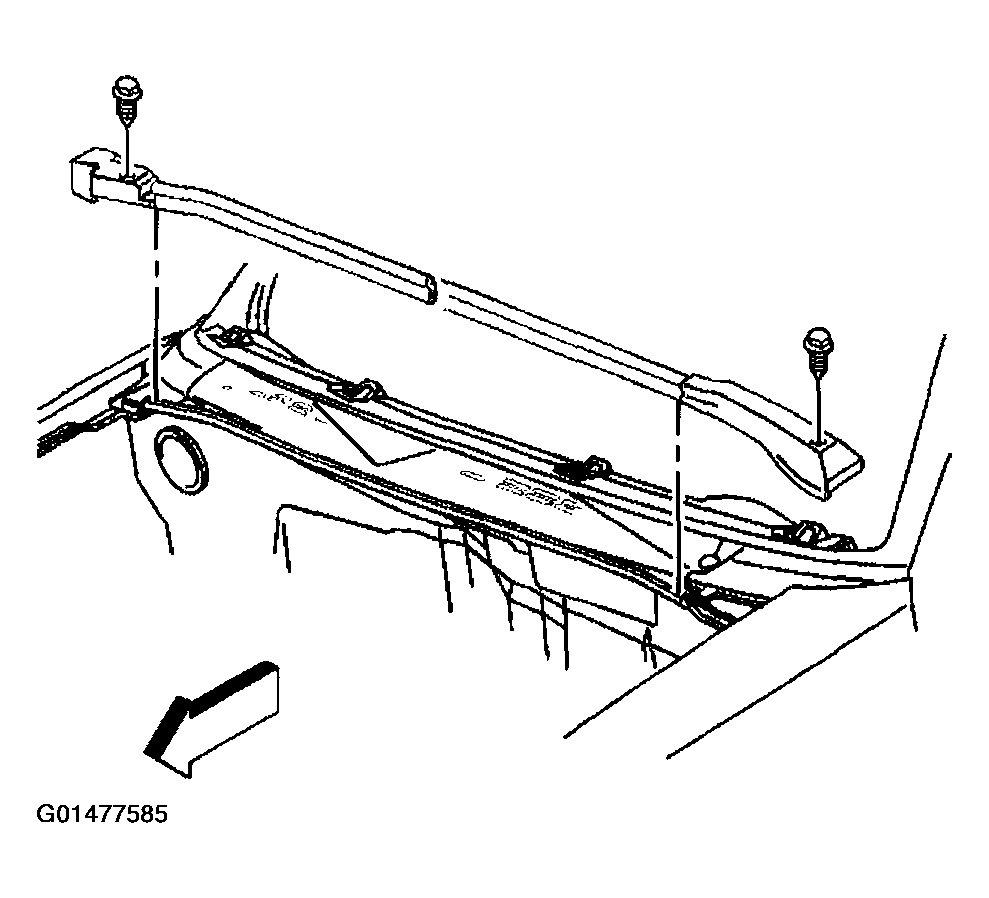

    Fig 1: Installing Screws Securing Seal To Cowl
    G01477585Courtesy of GENERAL MOTORS CORP.
